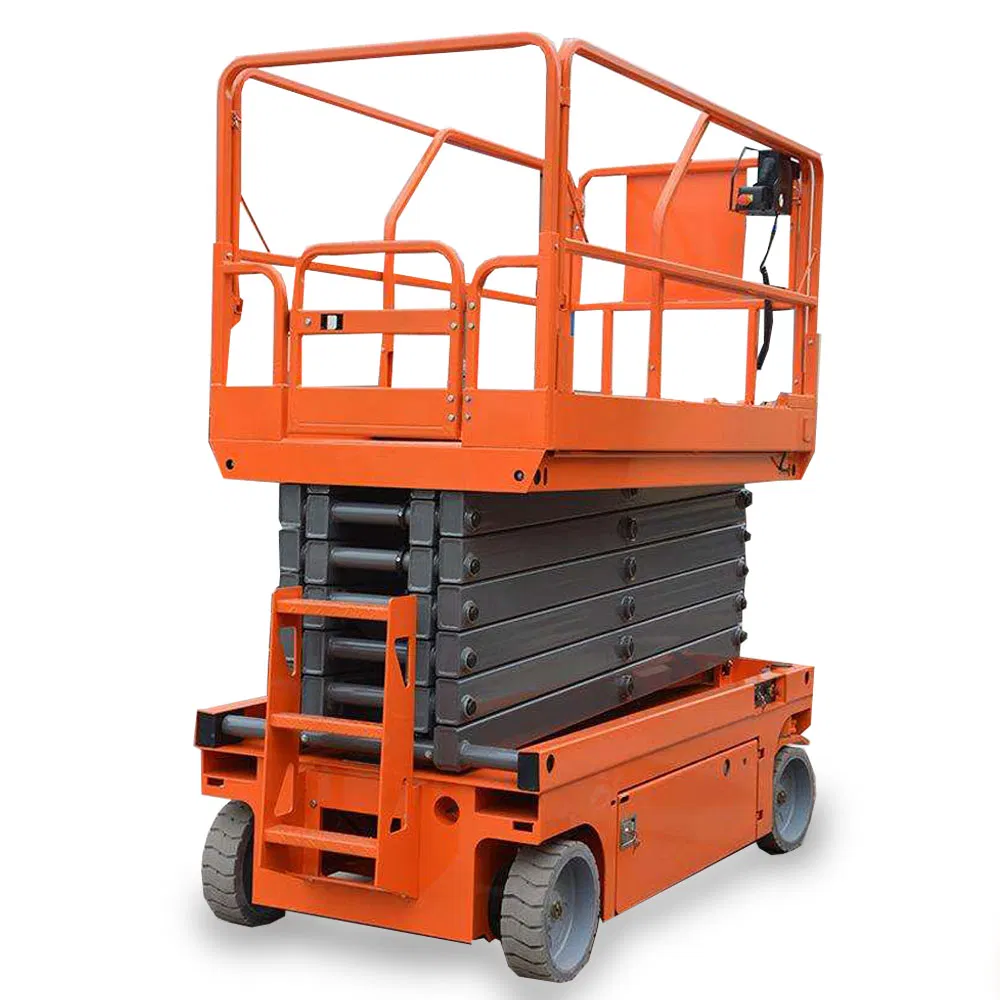

Hot Sale for Window Clean Mobile Manual Man 1m to 15m Electric Self-Propelled Hydraulic Scissor Lift Table Mobile Scissor Lift Work Platform

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info.
Model NO.
GTJZ
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Driven Type
AC/Battery
Certification
GS, CE, ISO 9001
Capacity
227kg
Application
Workshop, Warehouse, Building
Running Mode
Moving / Self-Propelled
Feature
Explosion-Proof, Insulating
Wheel
Solid
Drive
2/4WD
HS Code
8427109000
Packaging & Delivery
Package Size
220.00cm * 125.00cm * 230.00cm
Gross Weight
2200.000kg
Product Description

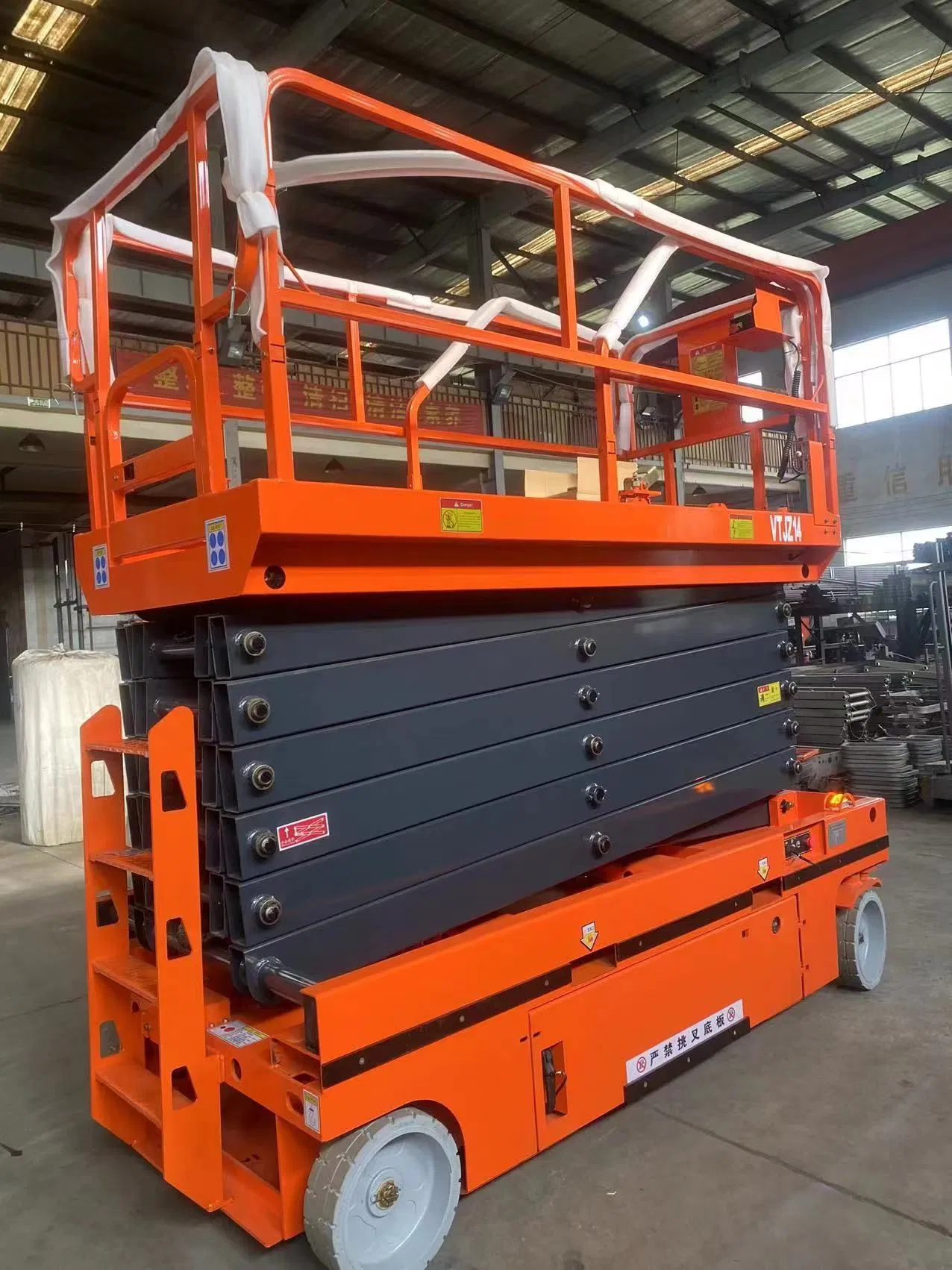

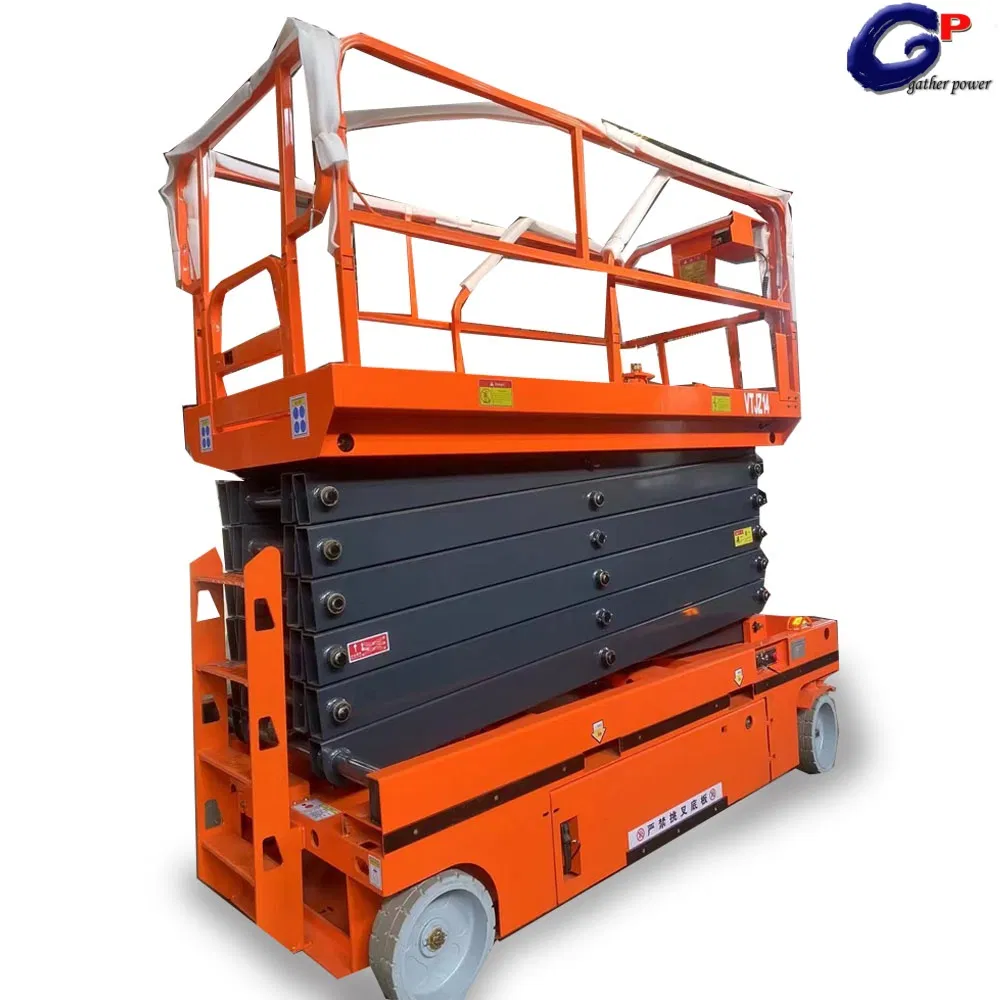

Self-propelled Scissors Platform (Full Electric): 10m platform lift height, 12m working height, 350kg lift capacity. Platform dimensions: 2.49*1.15*2m. Weight: 2900kg. Equipped with 2*12V/225AH battery and 24V/30A charger.
Technical Parameters
No. Specifications Option A Option B Option C
1Platform height6.2m7.9m9.8m
2Horizontal outreach8.0m9.8m11.6m
3Platform capacity227 kg227 kg317 kg
4Platform size (L*W*H)2.3mx0.769mx0.9m1.5mx0.75mx1.0m1.5mx0.75mx1.0m
5Overall width0.769m0.769m1.2m
6Stowed height1.77m1.9m1.9m
7Overall length2.3m2.3m2.3m
8Wheelbase1.9m1.9m2.1m
9Drive2wd/4wd2wd/4wd2wd/4wd
10Travel speed--stowed4.3km/h4.3km/h4km/h
11Lift speed (no load)25~32S28~38S50~60S
12Gradeability--stowed20%20%20%
13Tire dimension254*80mm254*80mm300*138mm
14Battery capacity230AH230AH230AH
15Charger output30A auto30A auto30A auto

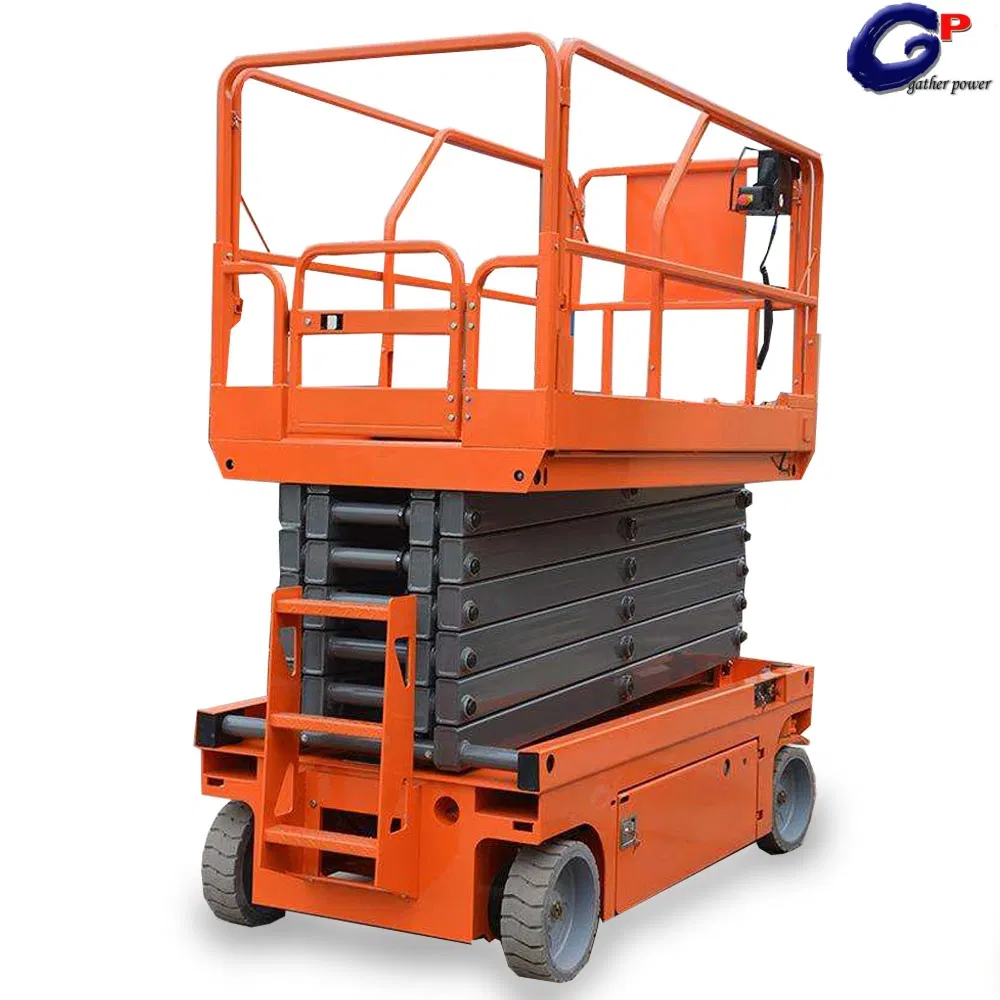

Product Gallery
Frequently Asked Questions
What is the maximum working height of this scissor lift?
The maximum working height reaches up to 12 meters, with a platform height of 10 meters, making it ideal for high-altitude indoor and outdoor maintenance.
What type of power source does it use?
This is a full electric self-propelled platform. It is powered by high-capacity 24V batteries (2*12V/225AH) and comes with an integrated 24V/30A automatic charger.
Are the tires suitable for indoor use?
Yes, the machine uses solid non-marking tires which are durable and provide excellent stability without damaging warehouse or workshop floors.
What is the lift capacity of the platform?
Depending on the specific model selected, the lifting capacity ranges from 227kg to 350kg, suitable for multiple personnel and their tools.
Can it operate on an incline?
The equipment has a gradeability of approximately 20% when in the stowed position, allowing it to navigate standard facility ramps easily.
Does it have safety certifications?
Yes, this series is fully certified with GS, CE, and ISO 9001 standards, ensuring high safety and quality compliance for industrial use.
