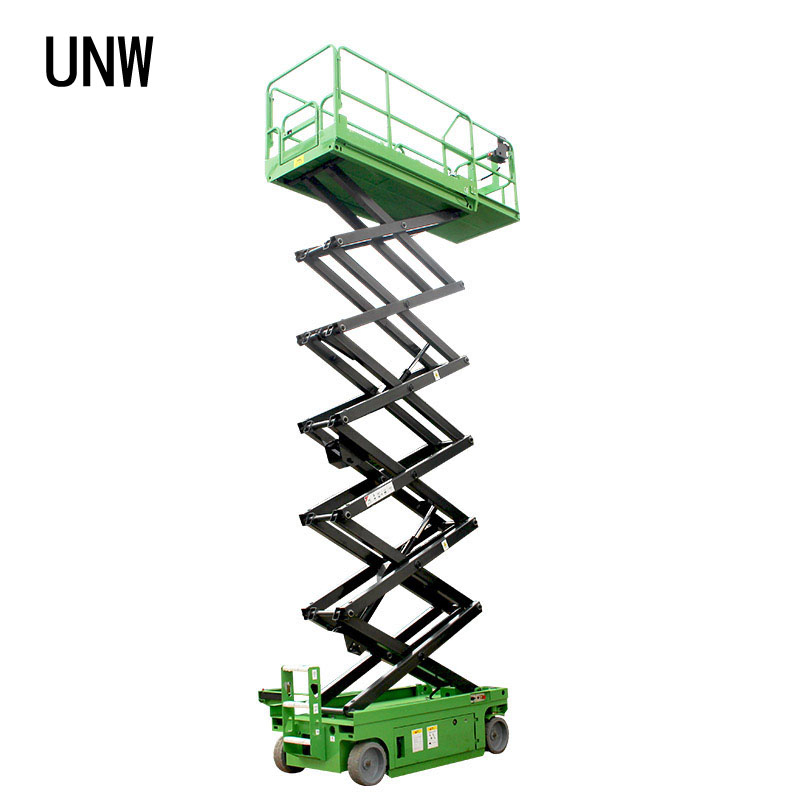

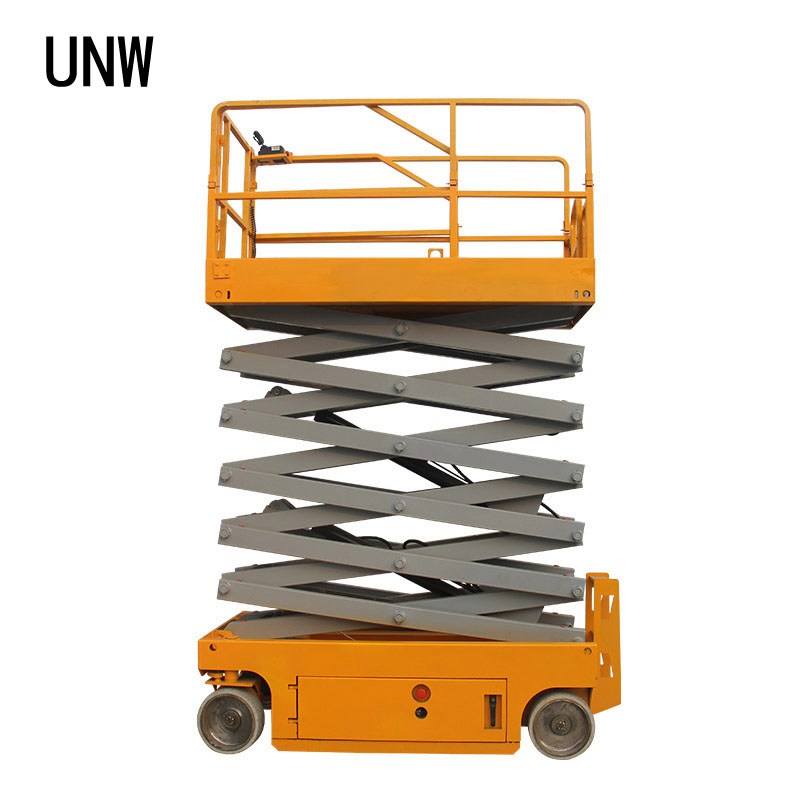

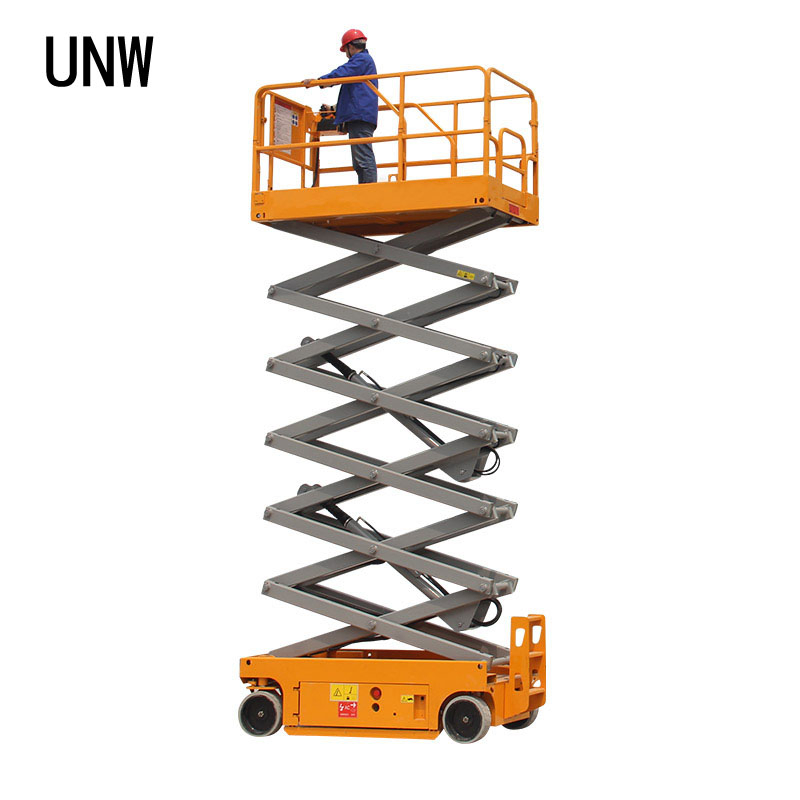

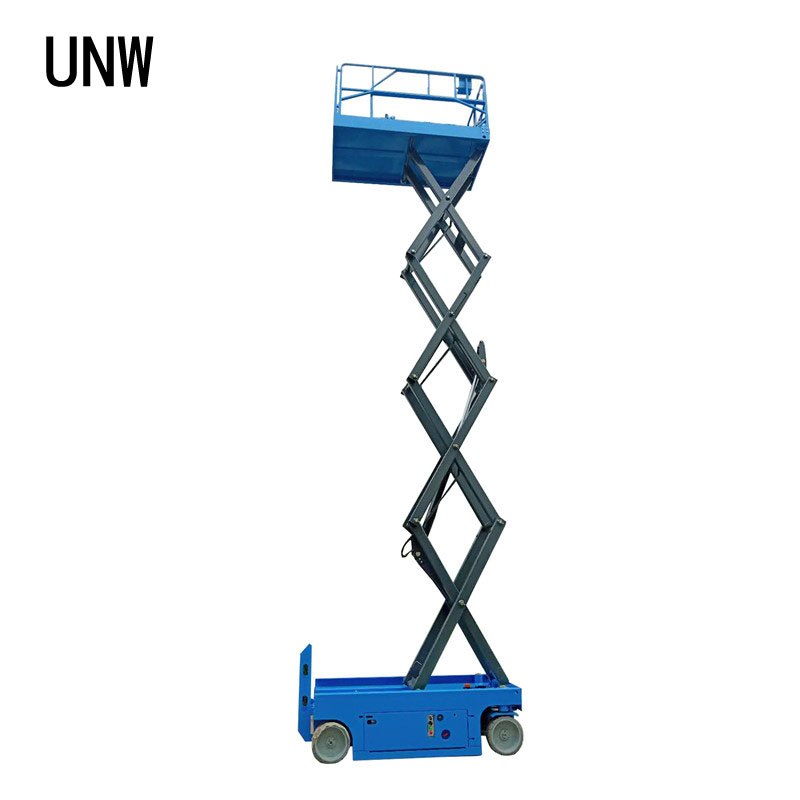

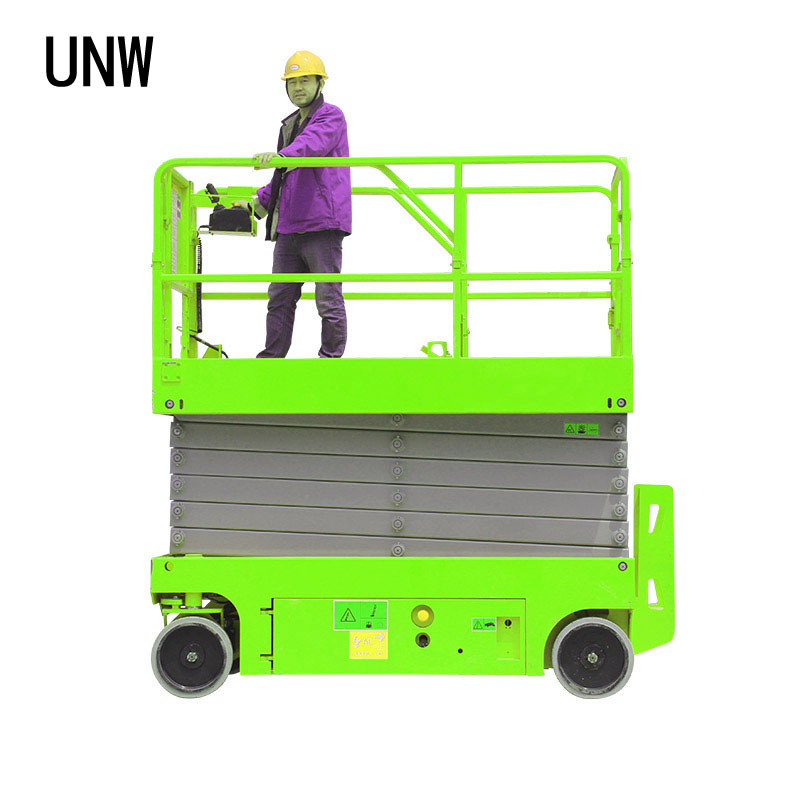

Hydraulic Driven Self Propelled Scissor Lift is one kind of intelligent lift machine operated by automatic walking, moving, turning and lifting. It is equipped with a hydraulic driven system and battery power. Different from electric driven scissor lifts, its moving and lifting are all controlled by a hydraulic motor.
Hydraulic driven self propelled scissor lift is characterized by high precision, great sensitivity, lower noise and low failure rate. It is widely used in aerial construction work by construction companies, shipyards, theaters and so on.
| Model No. | JCPT08-GS | JCPT10-GS | JCPT12-GS | JCPT14-GS | JCPT16-GS |
|---|---|---|---|---|---|
| Max platform height(mm) | 6000(20ft) | 8000(27ft) | 10000(33ft) | 11800(39ft) | 13800(46ft) |
| Max working height(mm) | 8000(27ft) | 10000(33ft) | 12000(40ft) | 13800(46ft) | 15800(52ft) |
| Lifting capacity (kg) | 300 | 300 | 300 | 300 | 227 |
| Overall Dimension (mm) | 2400x1150x2150 | 2400x1150x2275 | 2400x1150x2400 | 2400x1150x2525 | 2770x1300x2550 |
| Platform Size (mm) | 2270×1150 | 2640x1150 | |||
| Battery (V/AH) | 12/150*4pcs | ||||
| Climbing ability (%) | 25% | ||||
| Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3400 |
