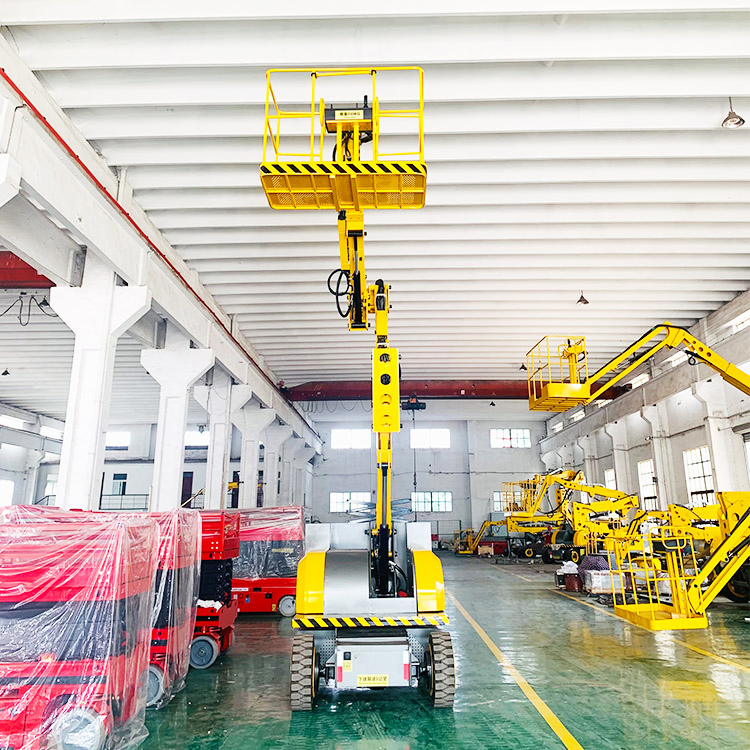

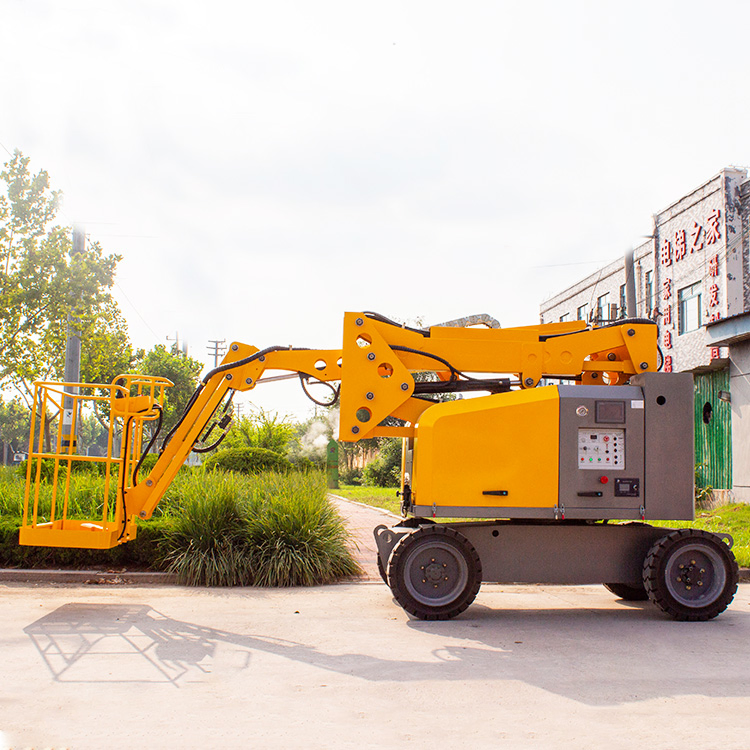

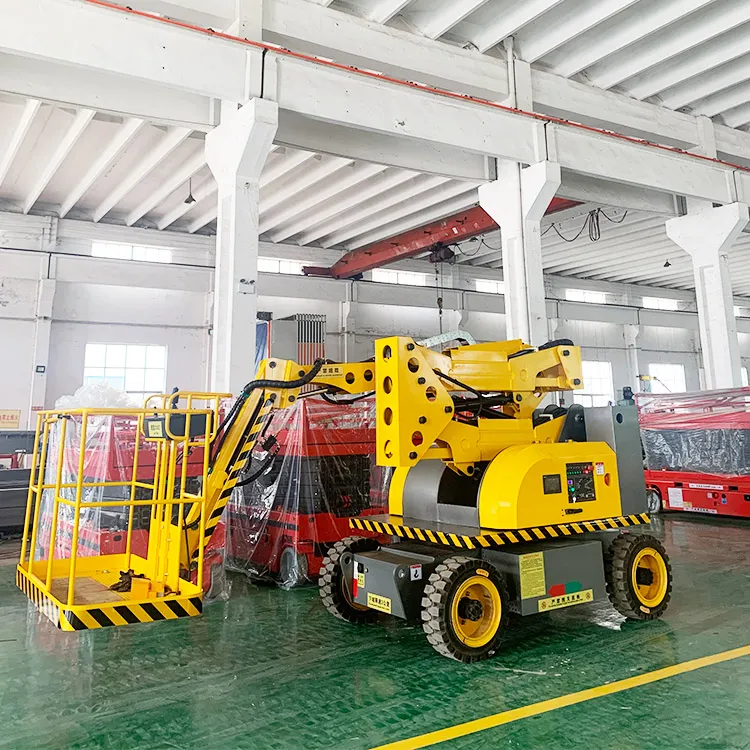

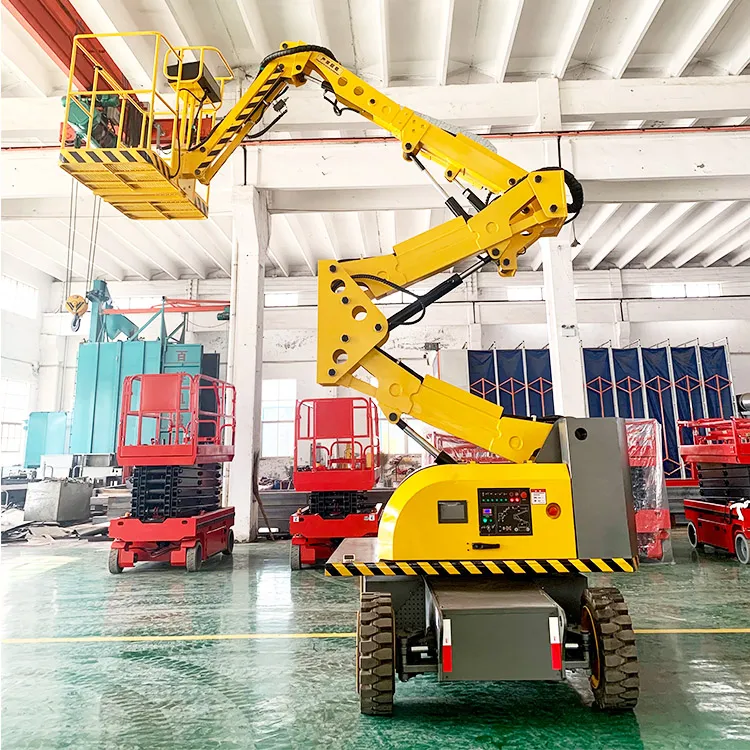

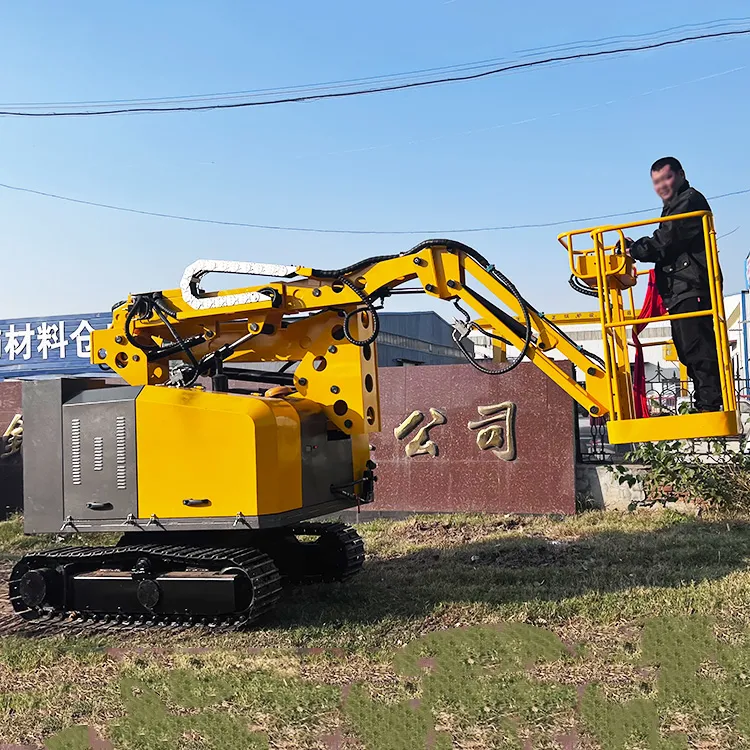

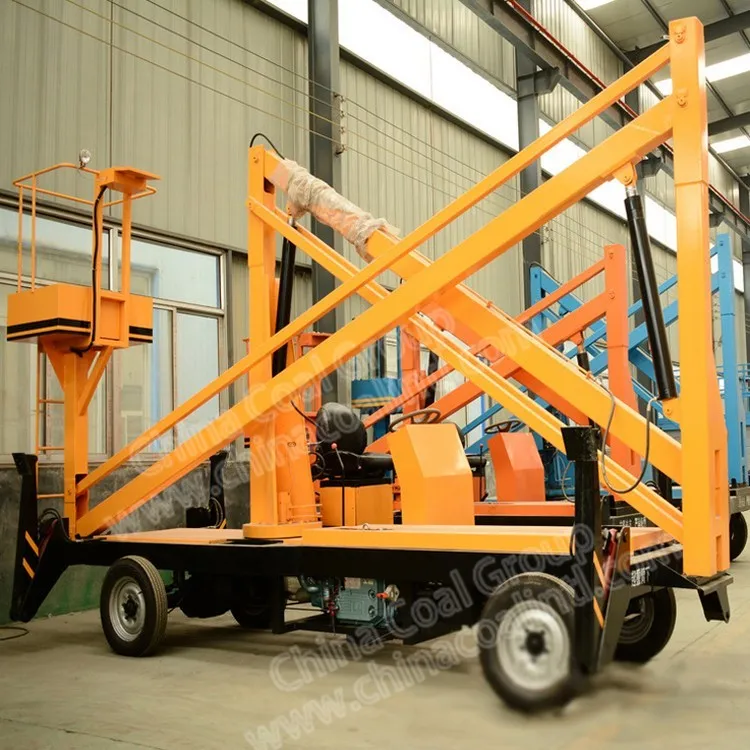

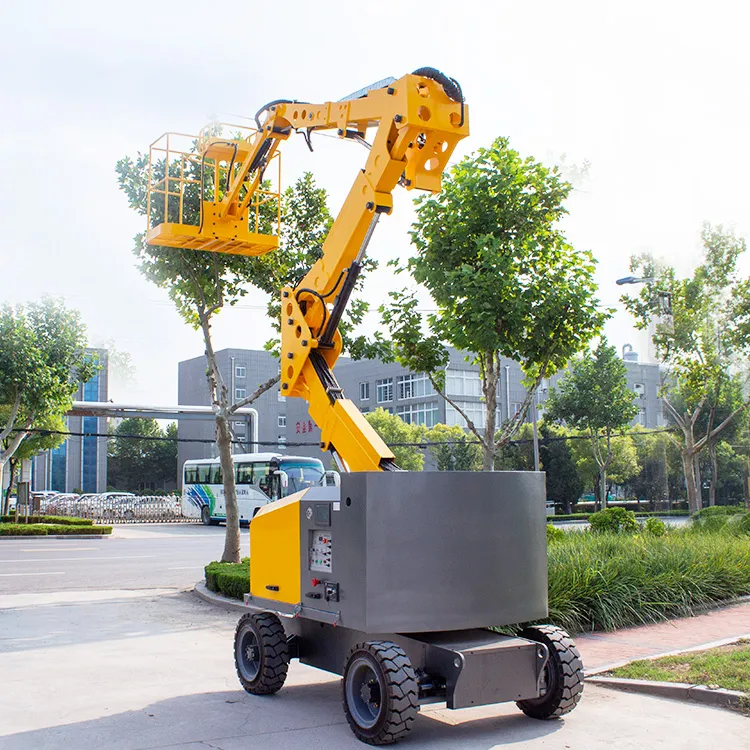

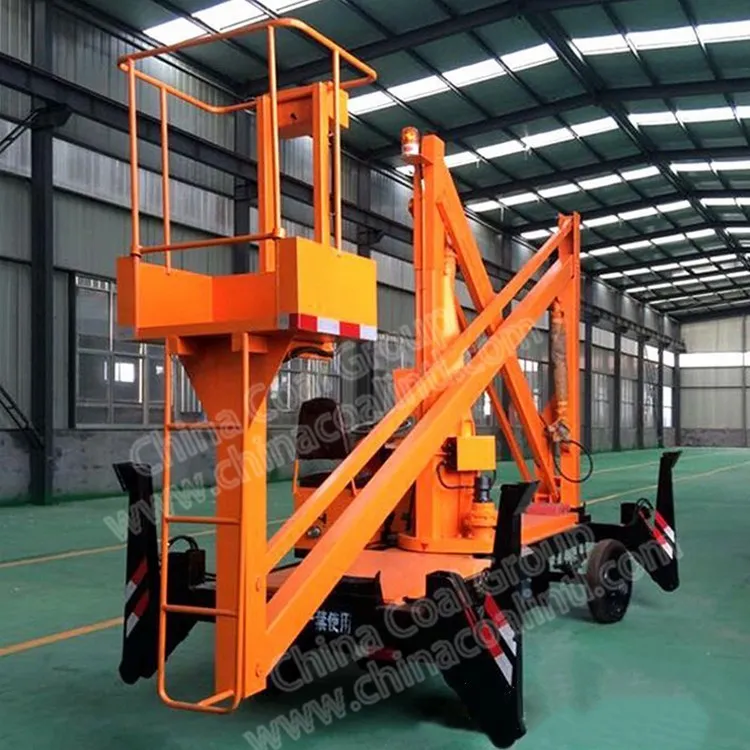

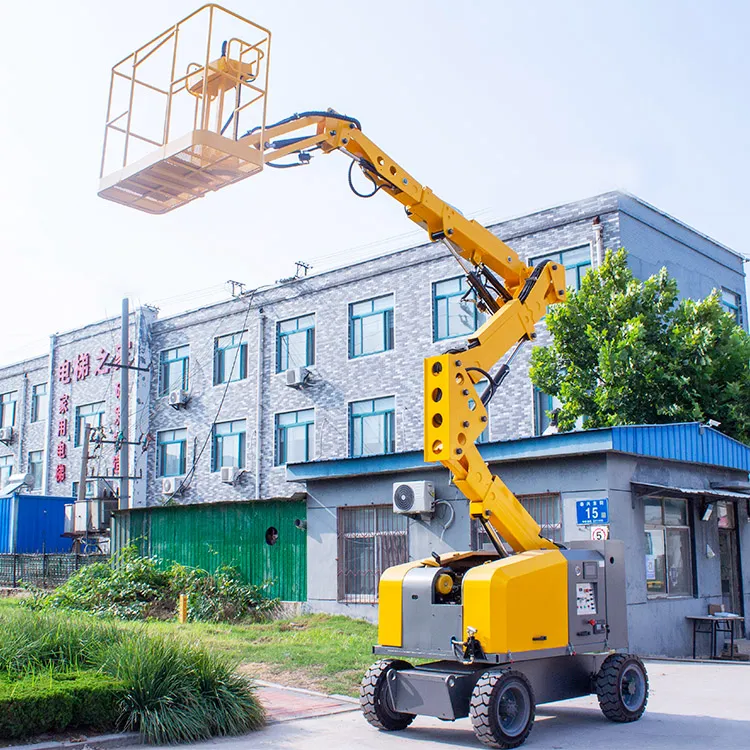

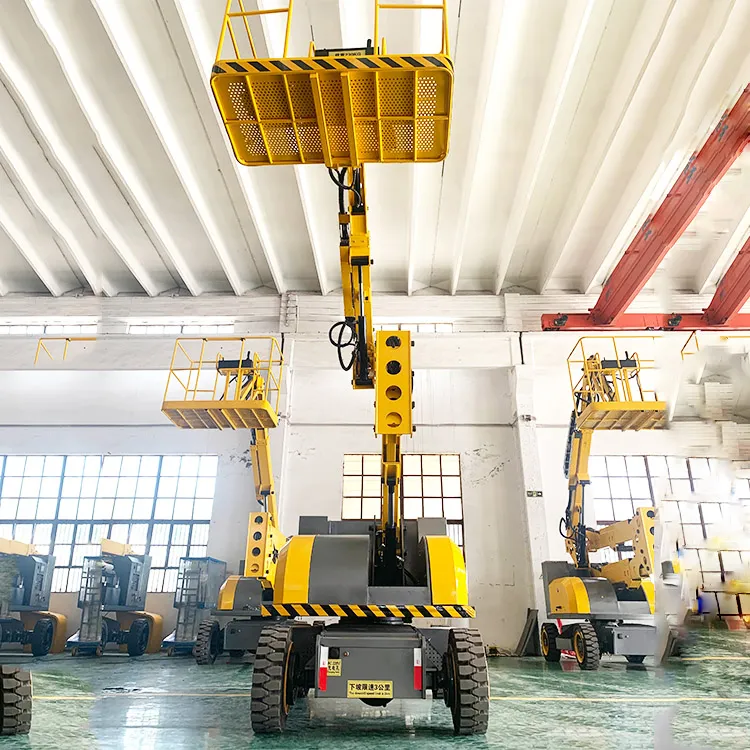

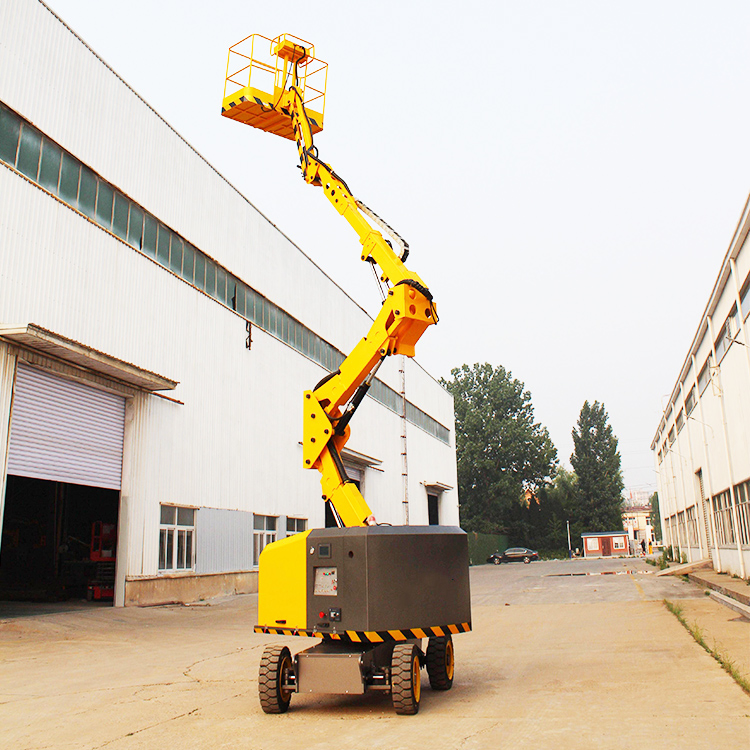

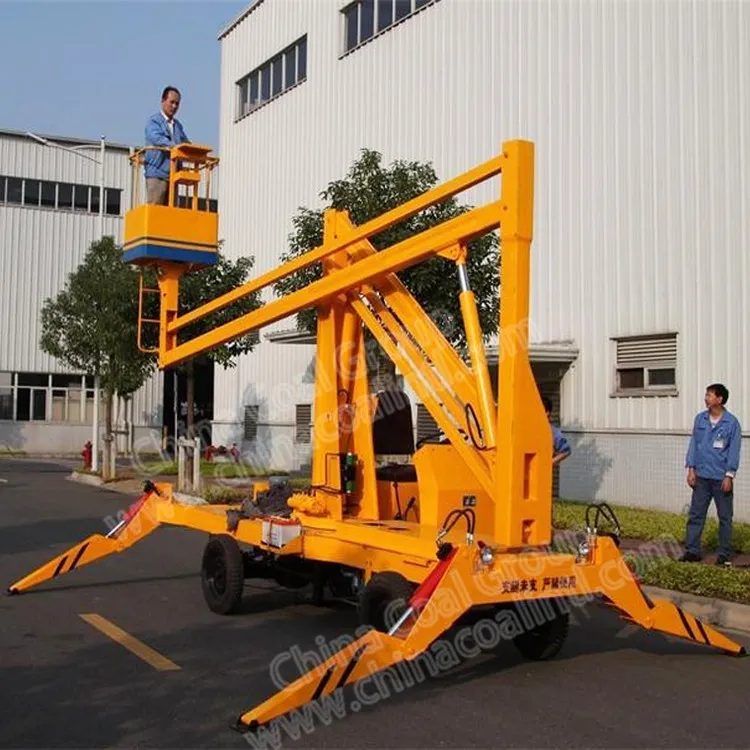

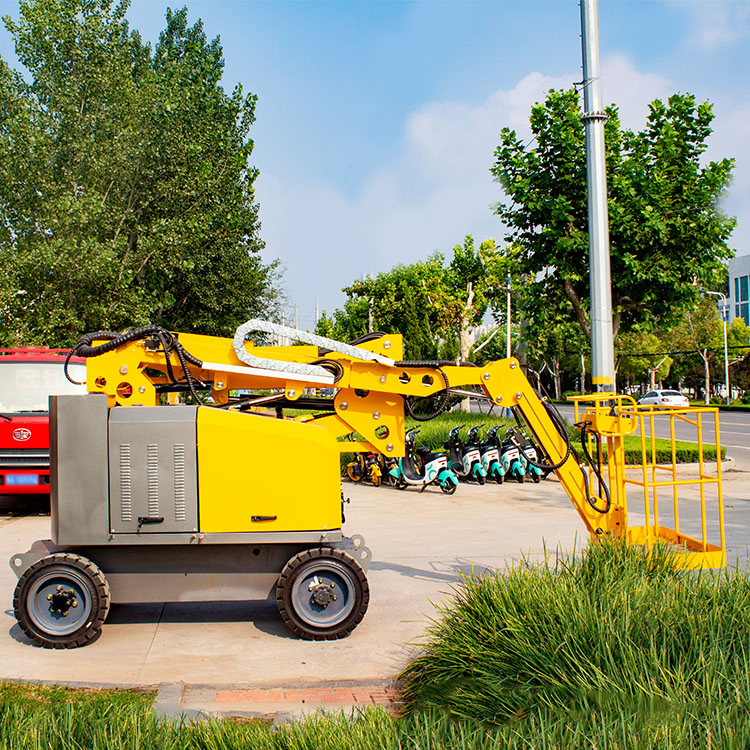

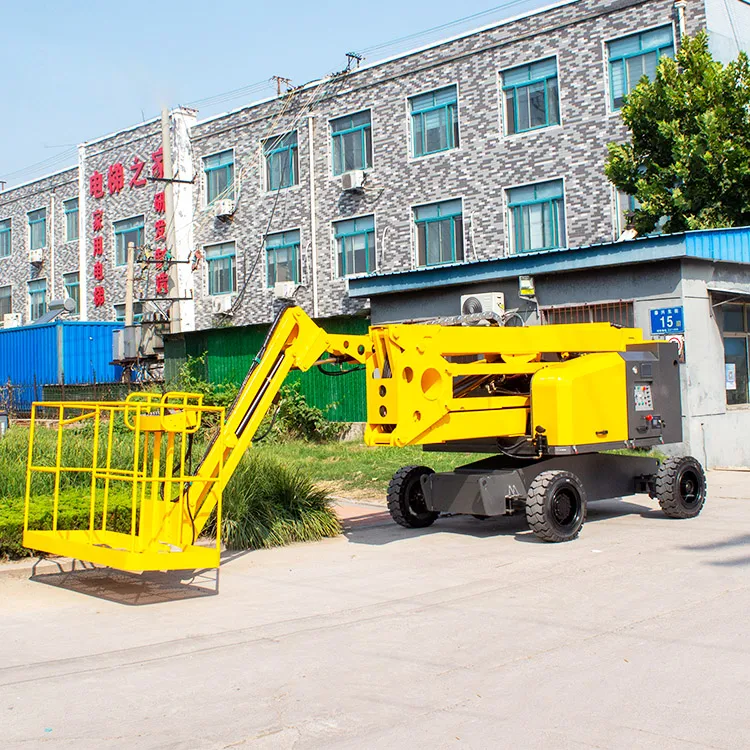

8~20m Forklift Self-Walking Mobile Lifting Towable Articulating Boom Lift.
Designed to make difficult and dangerous jobs easier, especially for continuous work at high altitudes. This self-propelled aerial working platform eliminates the need for scaffolding, providing a safe and efficient solution for airport terminals, stations, and shopping malls. Operated by a single person, it allows for lifting, forward, backward, steering, and slewing actions.

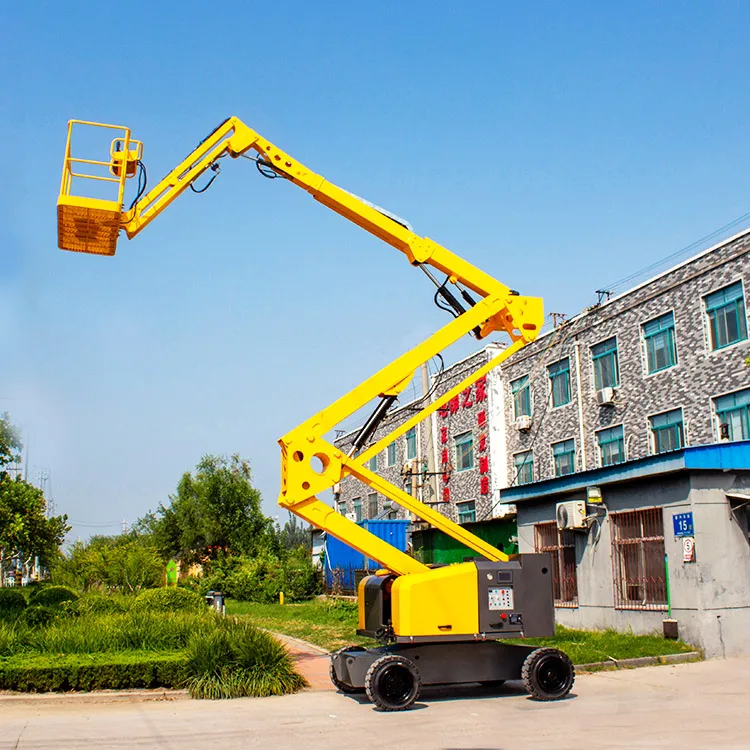

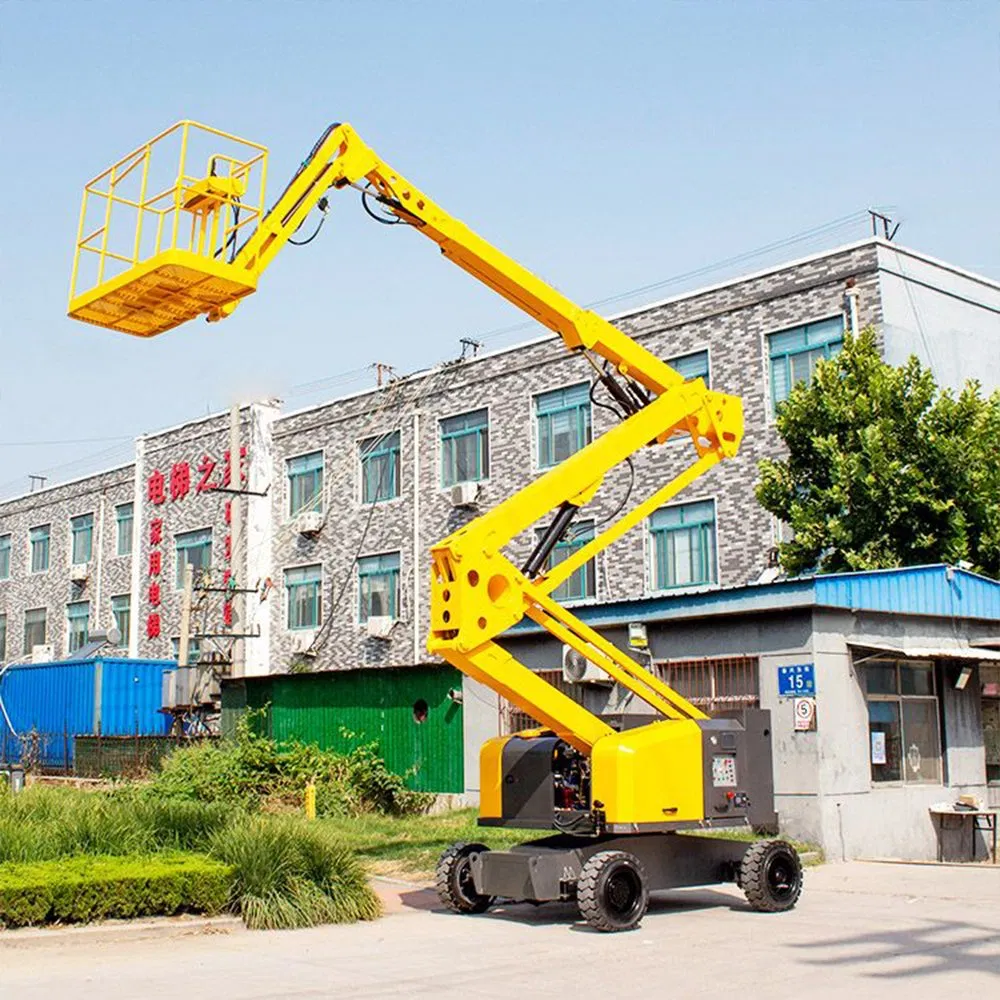

This platform can perform cantilevered operations, cross obstacles, and be lifted or lowered for multi-point operations. With 360-degree rotation and a large load capacity, it accommodates two or more workers simultaneously.
| Dimensions / Model | ZMQBPT10C/D | ZMQBPT14C/D | ZMQBPT16C/D | ZMQBPT18C/D | ZMQBPT20C/D | ZMQBPT22C/D |
|---|---|---|---|---|---|---|
| Max. Working Height | 10m | 14m | 16m | 18m | 20m | 22m |
| Max. Platform Height | 8m | 12m | 14m | 16m | 18m | 20m |
| Max. Operating Radius | 5.3m | 6.9m | 8m | 8.9m | 10.6m | 11.7m |
| Overall Length (Folded) | 5.2m | 6.3m | 7.0m | 7.18m | 8.35m | 8.86m |
| Table Size | 1.6*0.8m | 1.6*0.8m | 1.6*0.8m | 1.8*0.8m | 1.8*0.8m | 1.8*0.8m |
| Worktable Load | 230kg | 230kg | 230kg | 230kg | 230kg | 230kg |
| Travelling Speed | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h | 4km/h |
A1: The series offers models with working heights ranging from 8 meters up to 22 meters to suit various high-altitude operational requirements.
A2: Yes, the turntable is designed for 360-degree continuous rotation, providing excellent maneuverability and reach.
A3: We offer dual power options including a 48V battery pack for clean indoor use and diesel engines for outdoor or heavy-duty environments.
A4: The platform is designed with a load capacity of 230kg, which is sufficient for two workers and their necessary tools.
A5: Yes, our articulating boom lifts are CE certified, ensuring they meet strict international safety and quality standards.
A6: Absolutely. With advanced turning drive technology and zero tail swing, it is ideal for navigating narrow aisles and complex workspaces.
