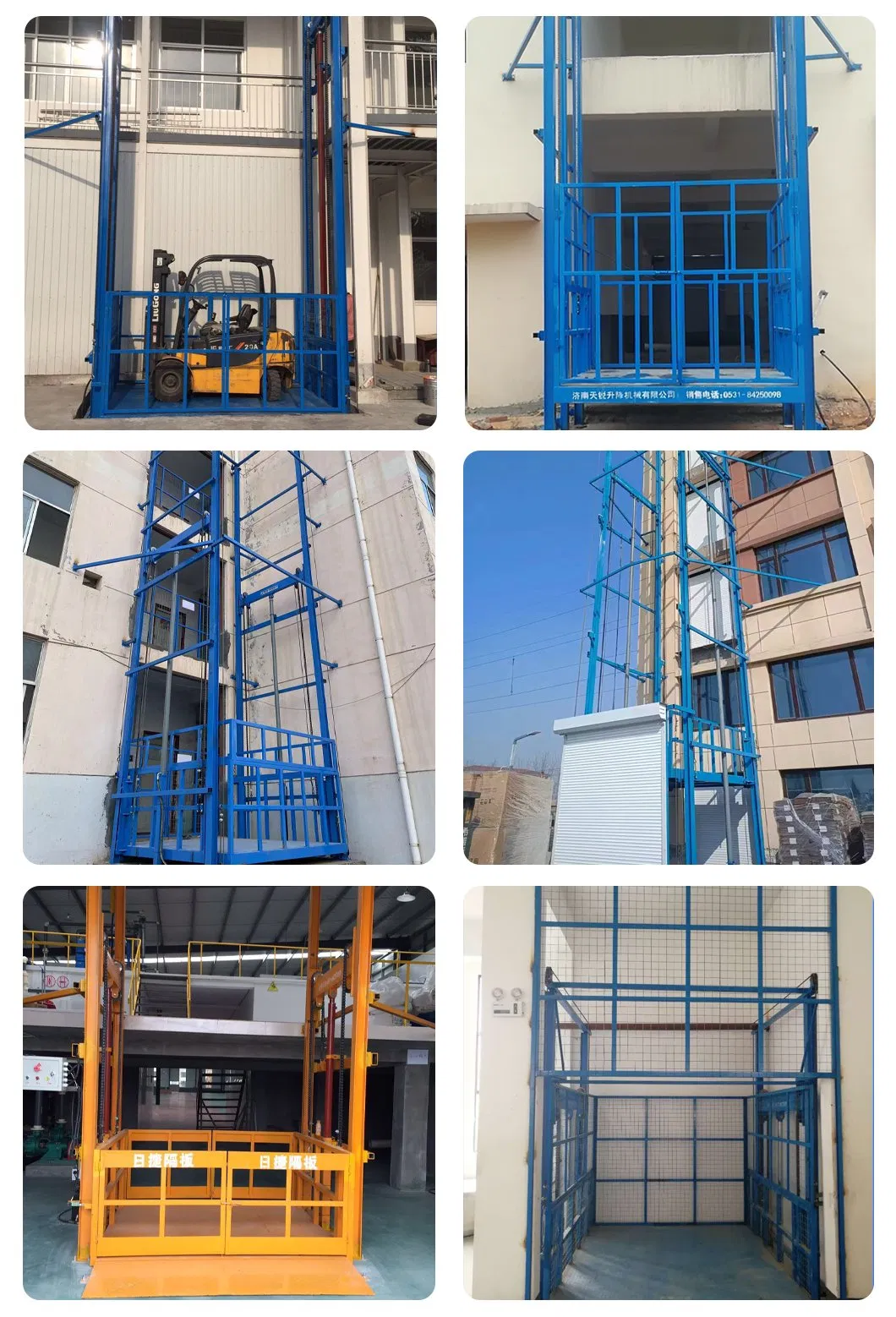

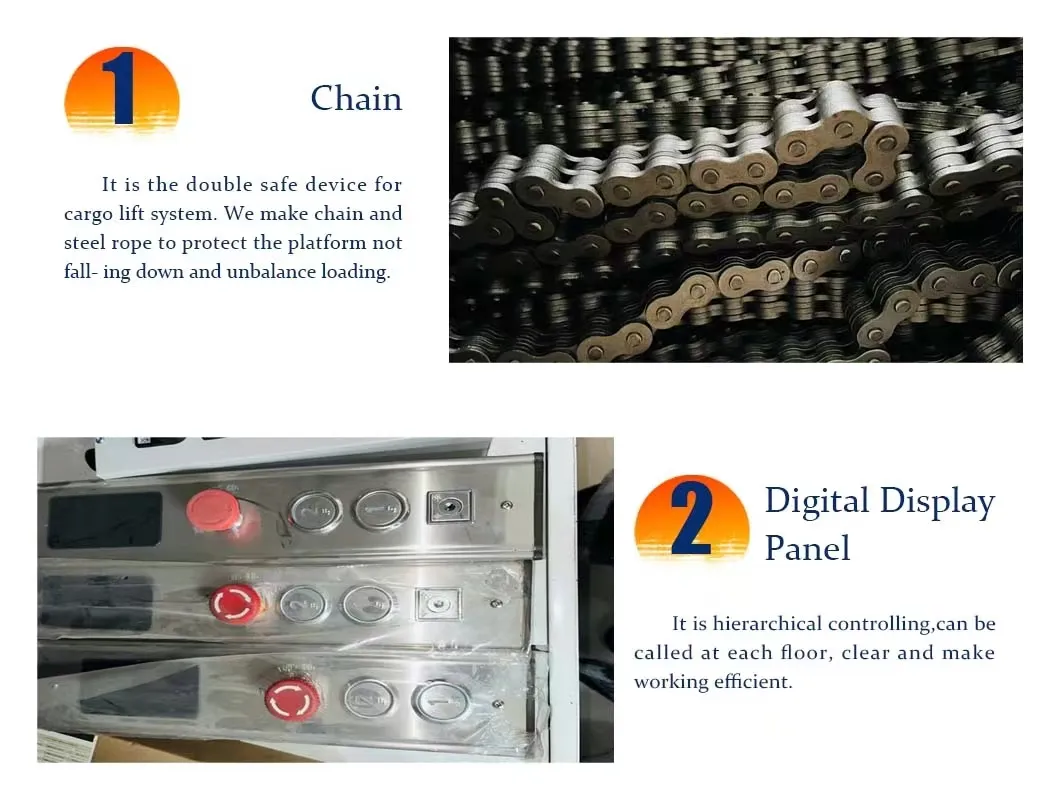

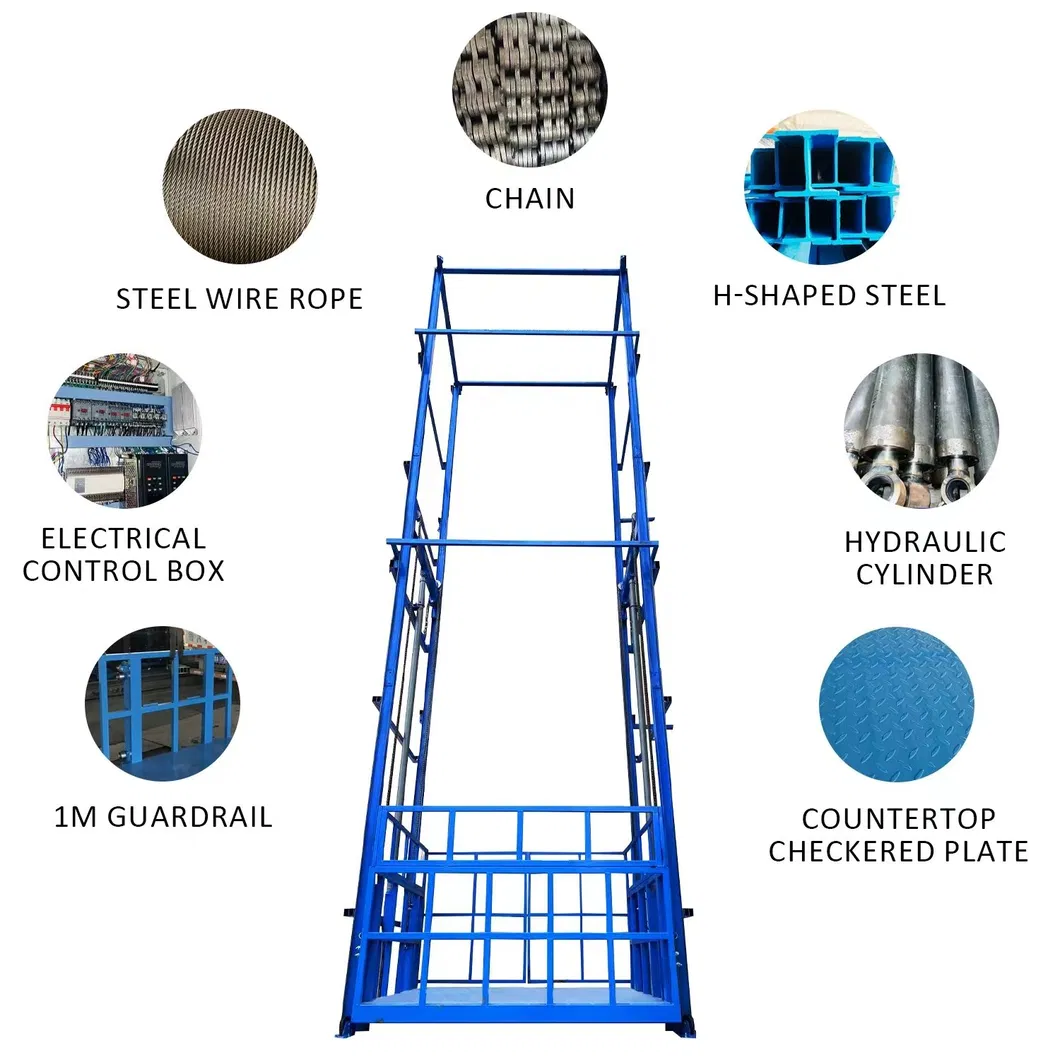

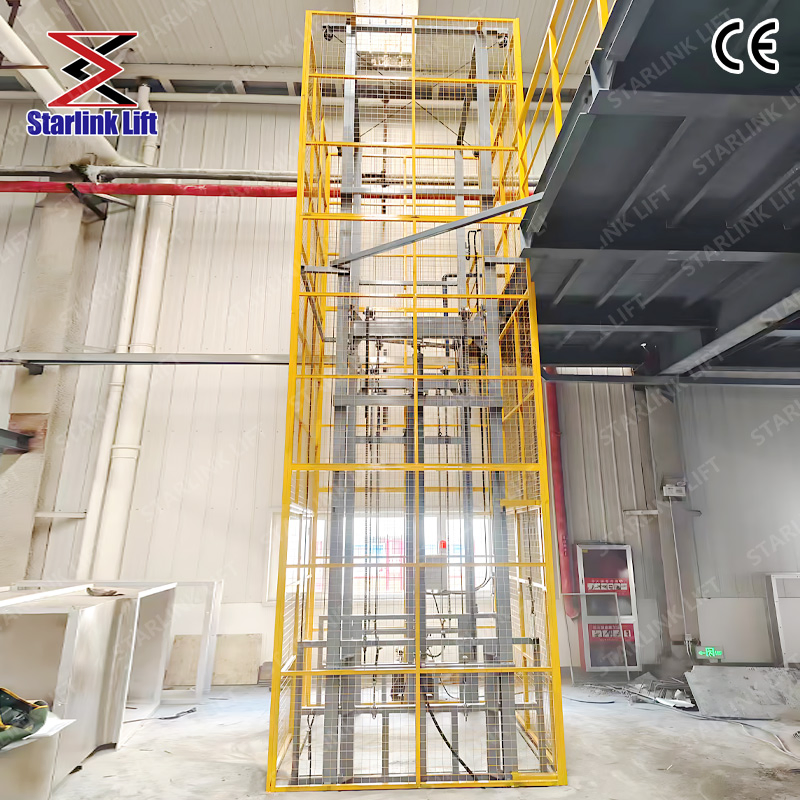

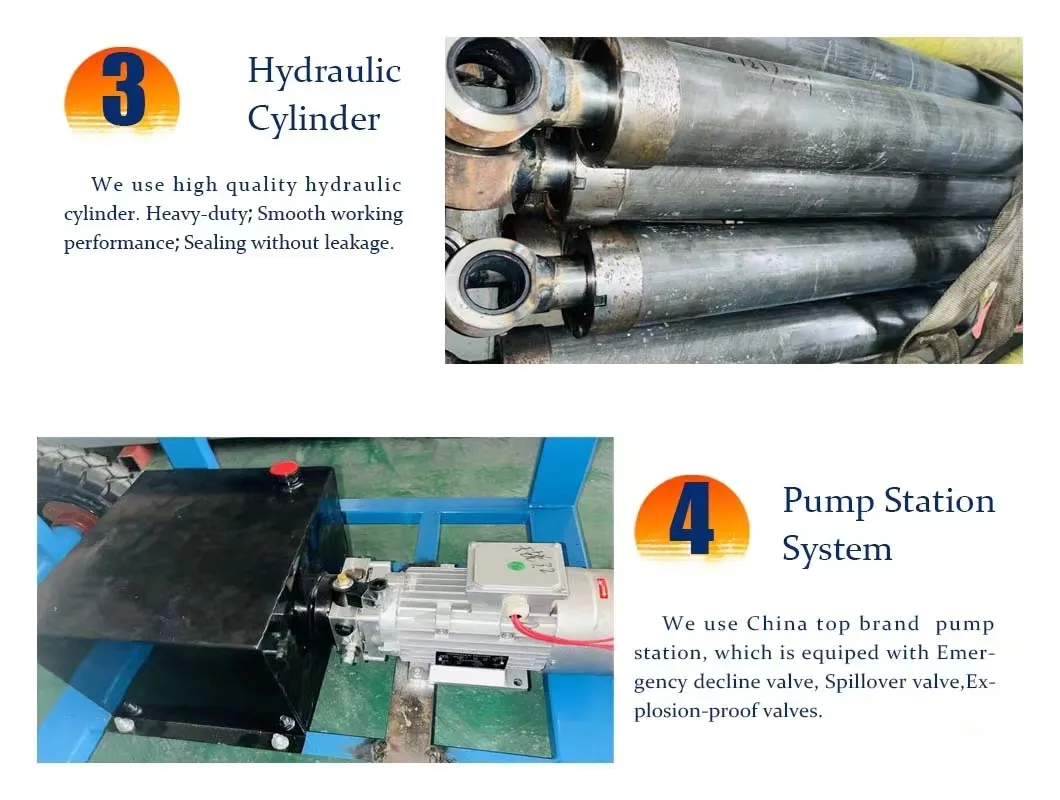

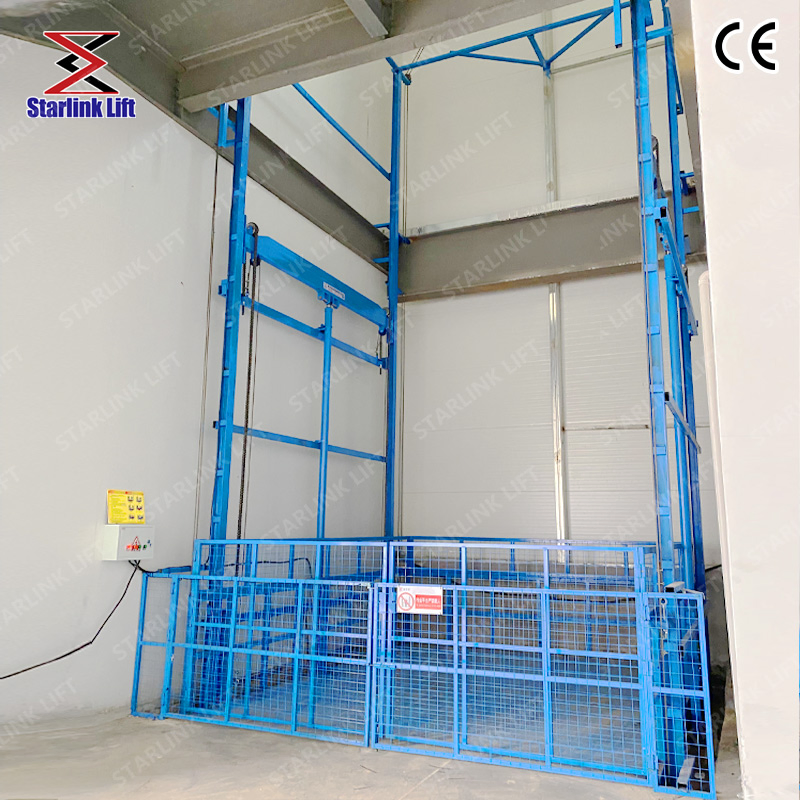

A guide rail type cargo elevator is a hydraulic lifting mechanical equipment used for lifting goods. It uses hydraulic cylinders as the main power and is driven by heavy-duty chains and steel wire ropes to ensure absolute safety of machine operation. No need for pits or machine rooms, especially suitable for basements, warehouse renovations, new shelves, etc., with convenient installation and maintenance, aesthetics, safety, and easy operation.
| Type | Model | Platform Size | Lifting Height | Load Capacity | Motor Power |
|---|---|---|---|---|---|
| Single guide rail | SJG-0.2-3 | 1000*1000mm | 3m | 0.2t | 1.5kw |
| SJG-0.5-5 | 1500*1500mm | 5m | 0.5t | 2.2kw | |
| SJG-1-10 | 1500*1500mm | 10m | 1t | 3.3kw | |
| Double guide rail | SJG-1-4 | 2000*2000mm | 4m | 1t | 3kw |
| SJG-2-6 | 3000*3000mm | 6m | 2t | 4kw | |
| SJG-2-8 | 2000*3000mm | 8m | 2t | 5kw |

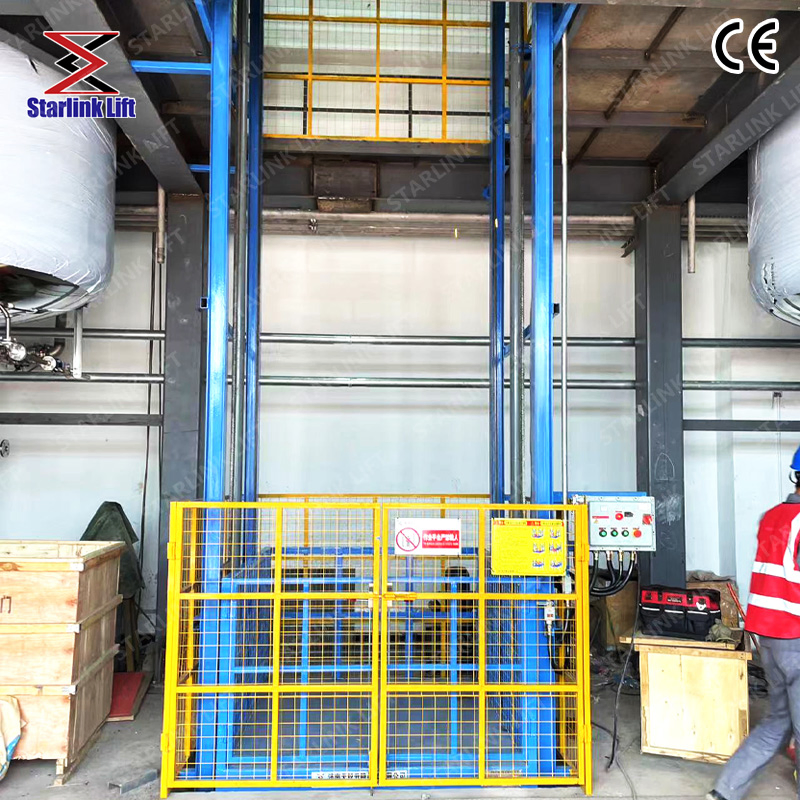

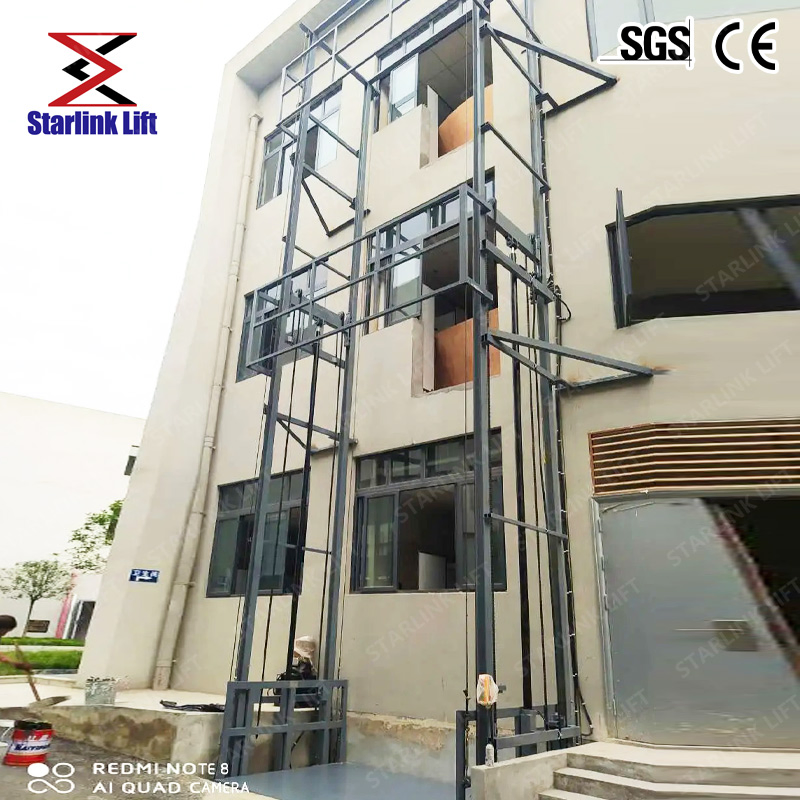

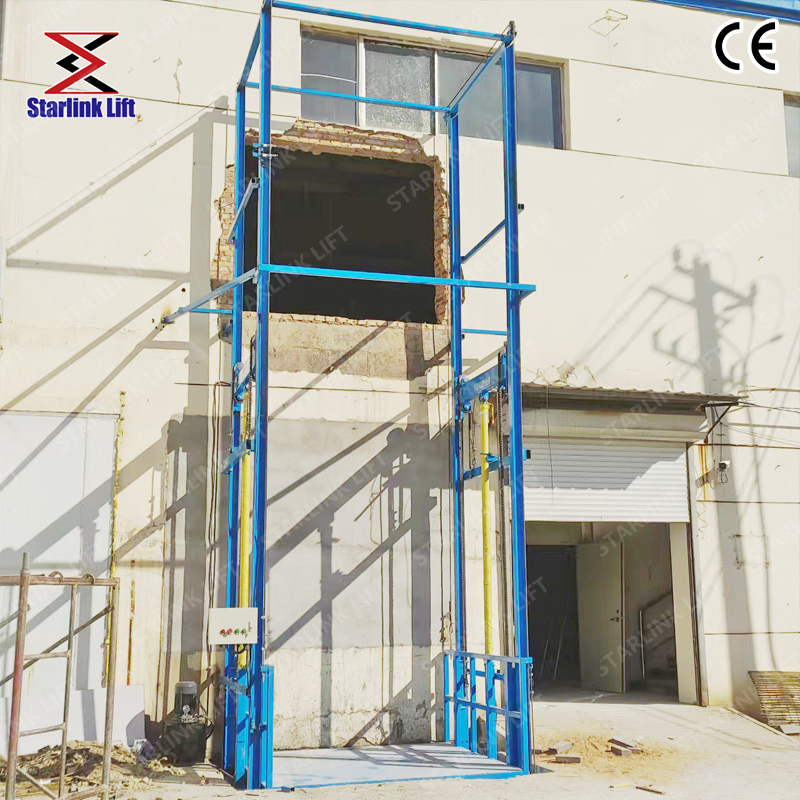

The guide rail type lifting cargo elevator is a non-scissor type hydraulic lifting mechanical equipment, ideal for transportation between floors in industrial factories and restaurants.

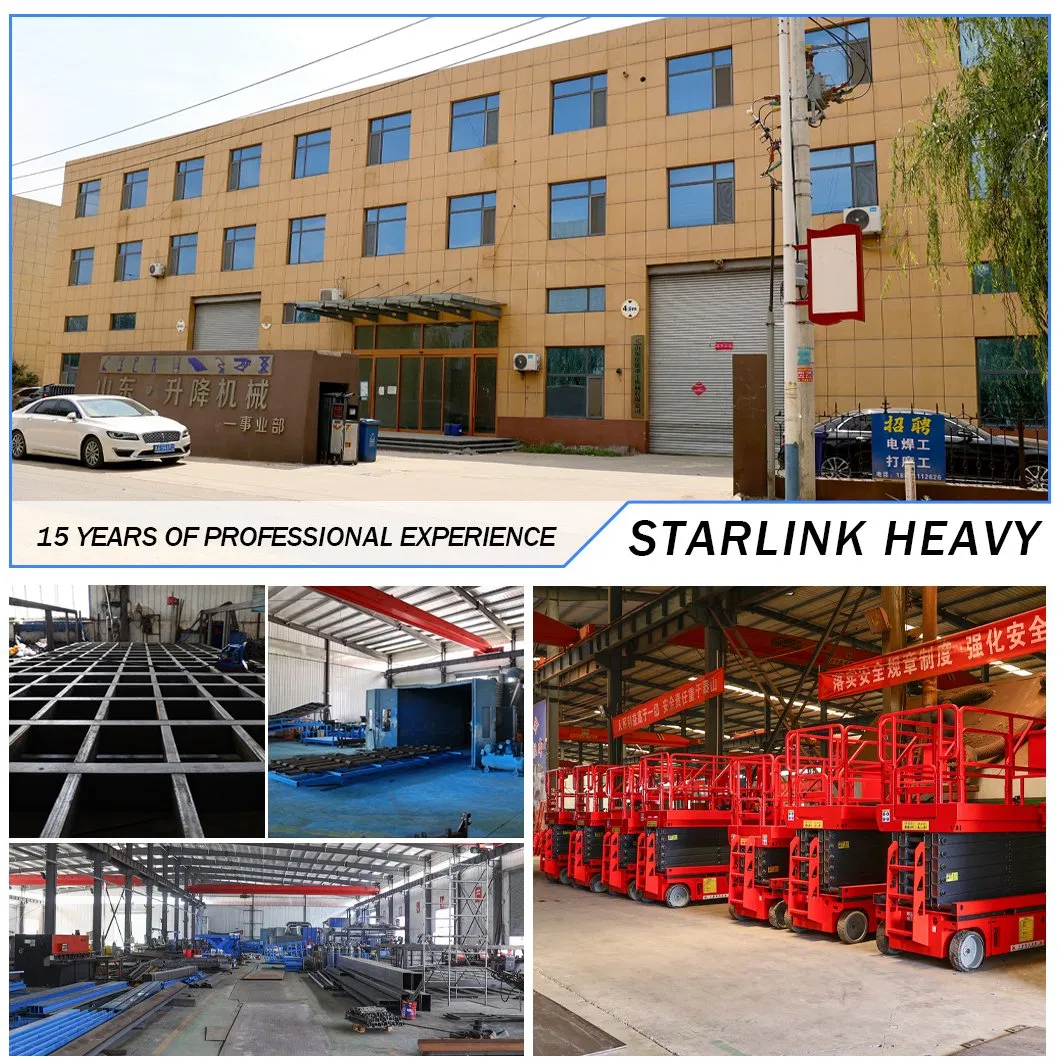

We specialize in the production and development of various lifting platforms, including Hydraulic Cargo Lifts, Scissor Lifting Platforms, and Home Lifts. With years of strict management, we have become a leading manufacturer, exporting to over 50 countries worldwide.
