📋 Basic Information
Model NO.
GJ0702 / Sjyz0.3-6
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Special Weight Level
Certification
GS, CE, RoHS, ISO 9001
Overall Dimensions
2000*1500*2000mm
📦 Packaging & Delivery
Package Size
210.00cm * 155.00cm * 210.00cm
Transport Package
Wooden Case
⚙️ Product Description

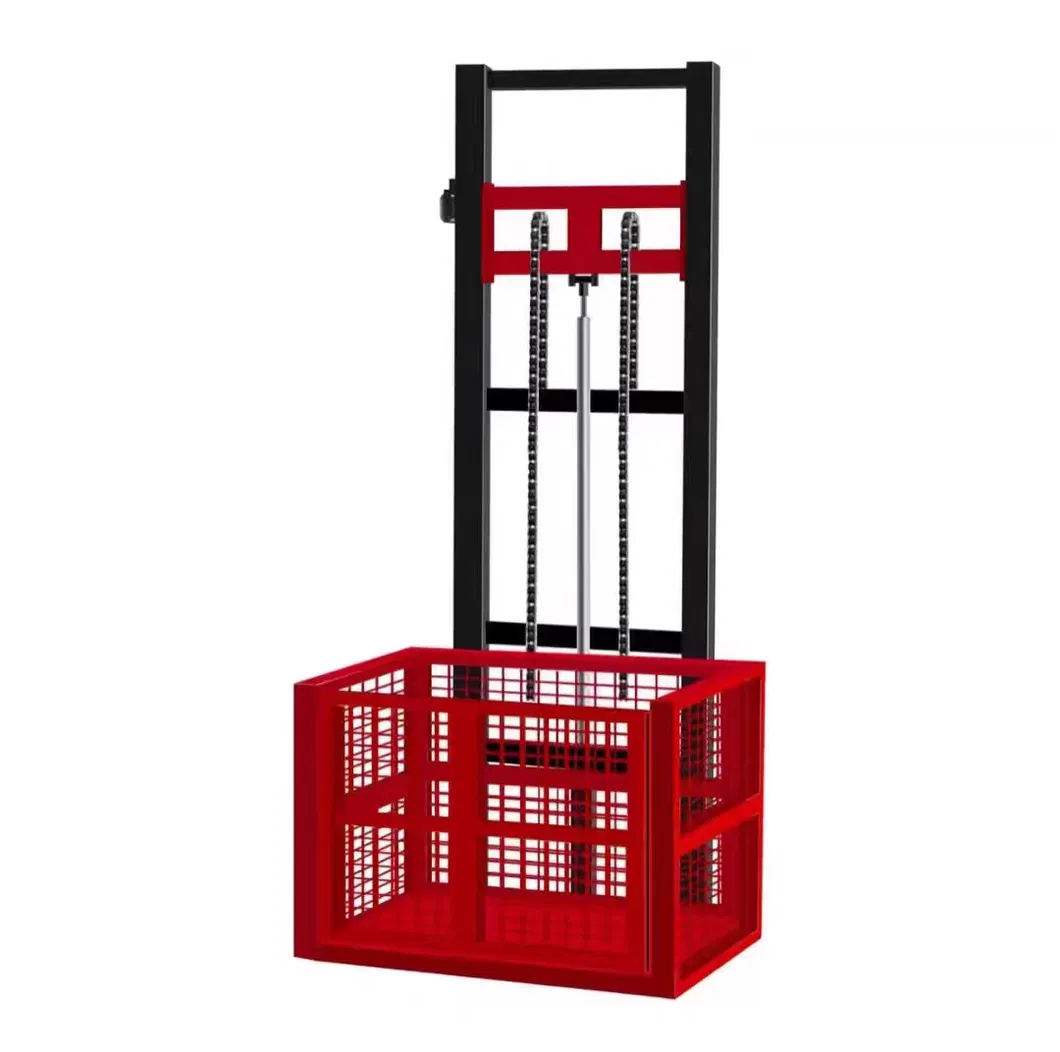

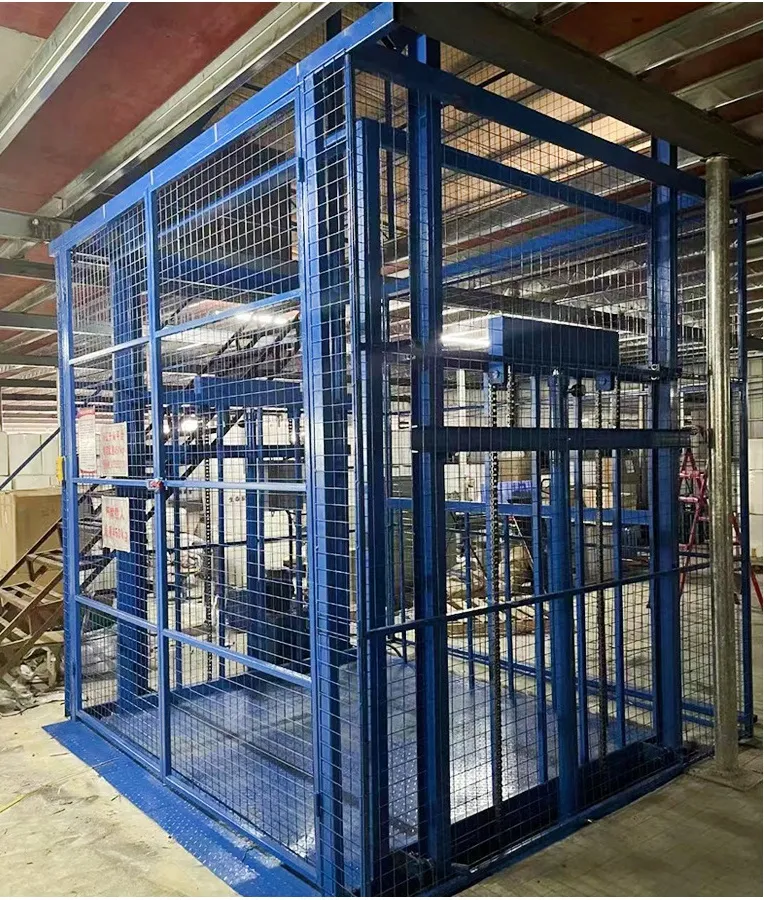

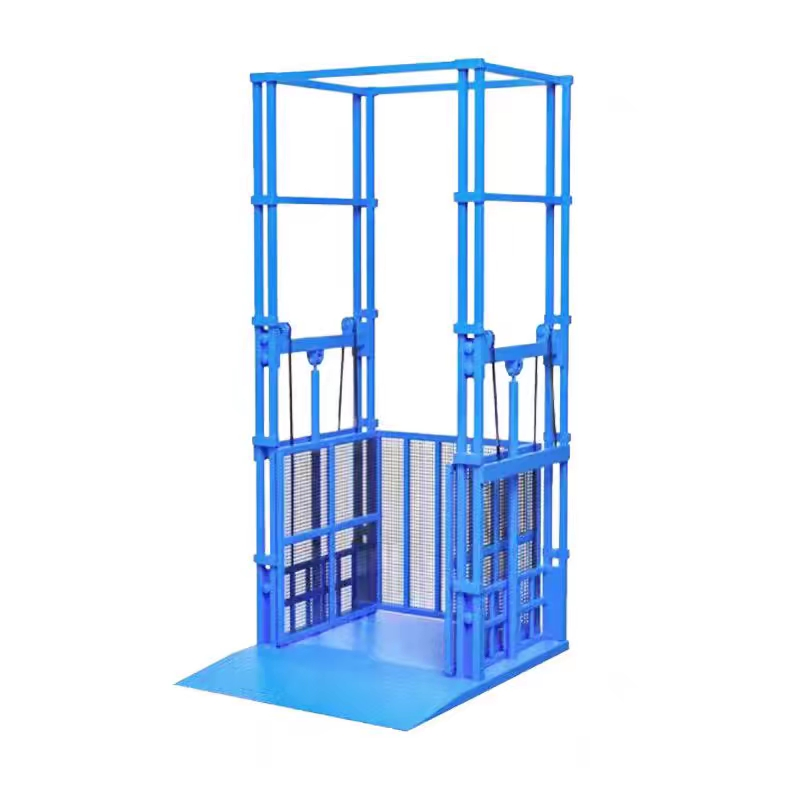

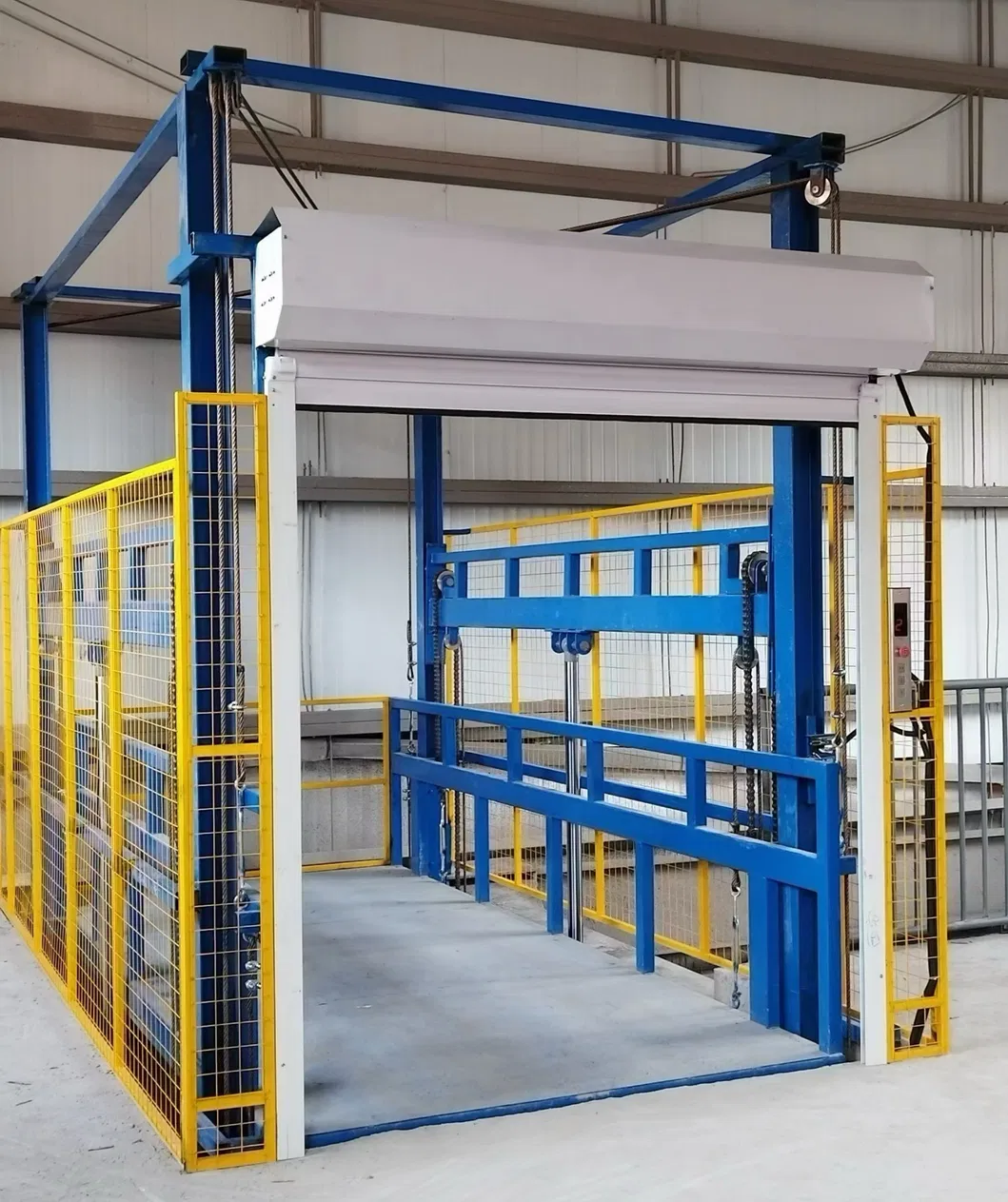

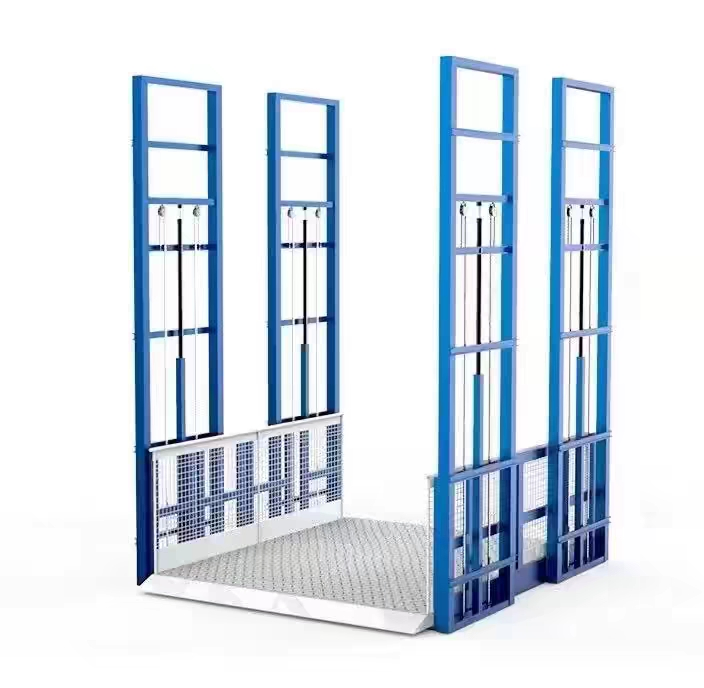

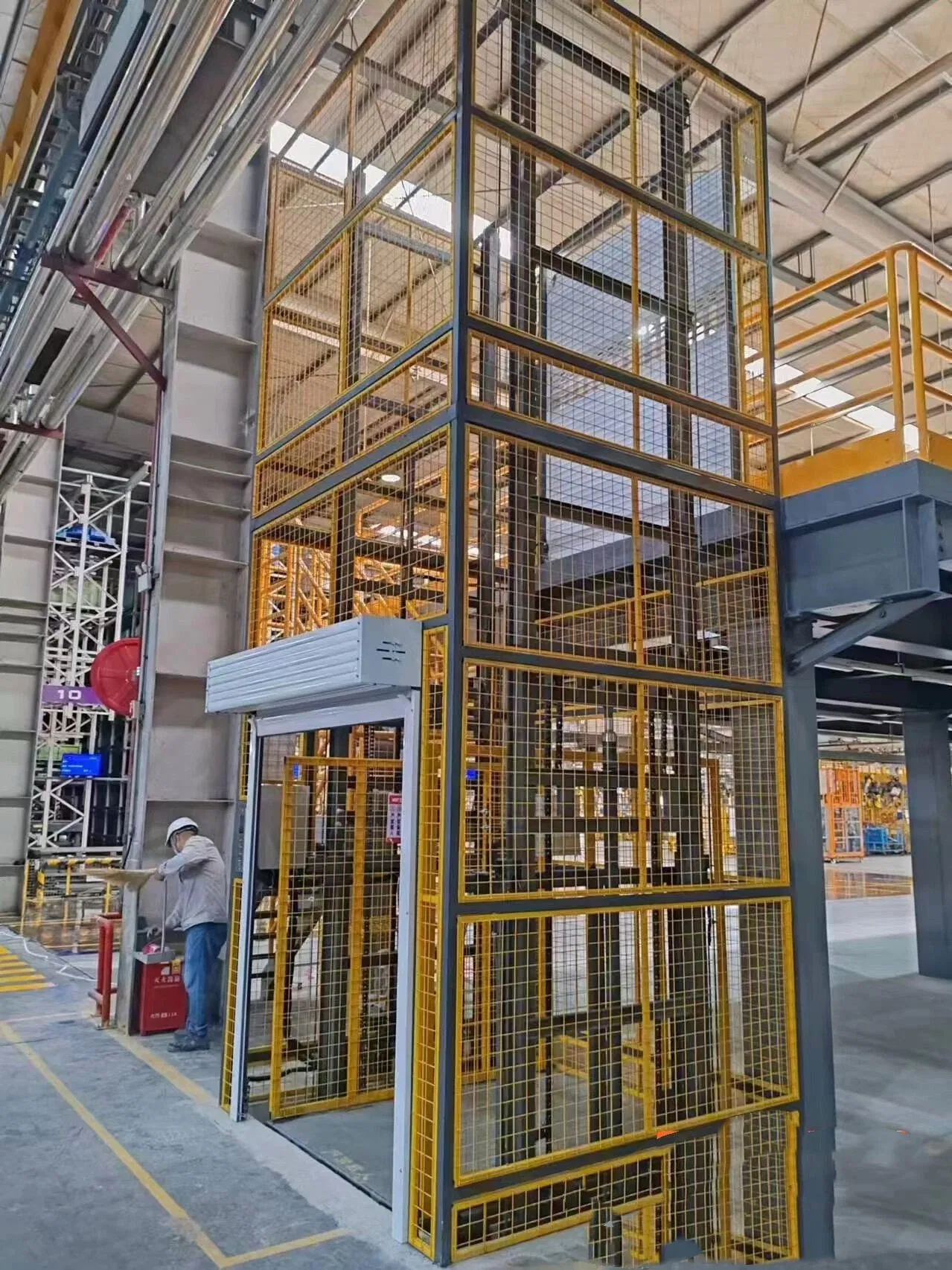

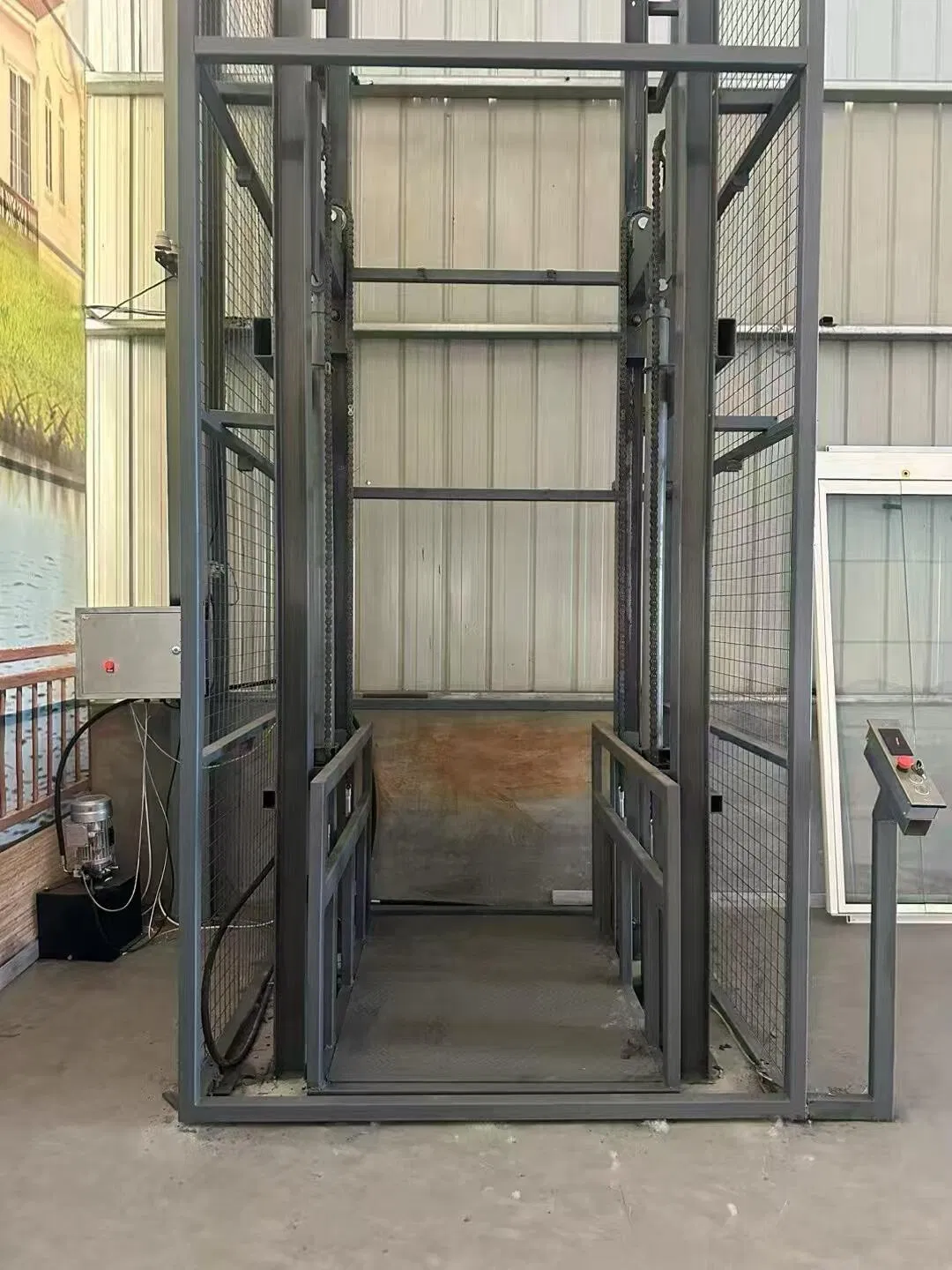

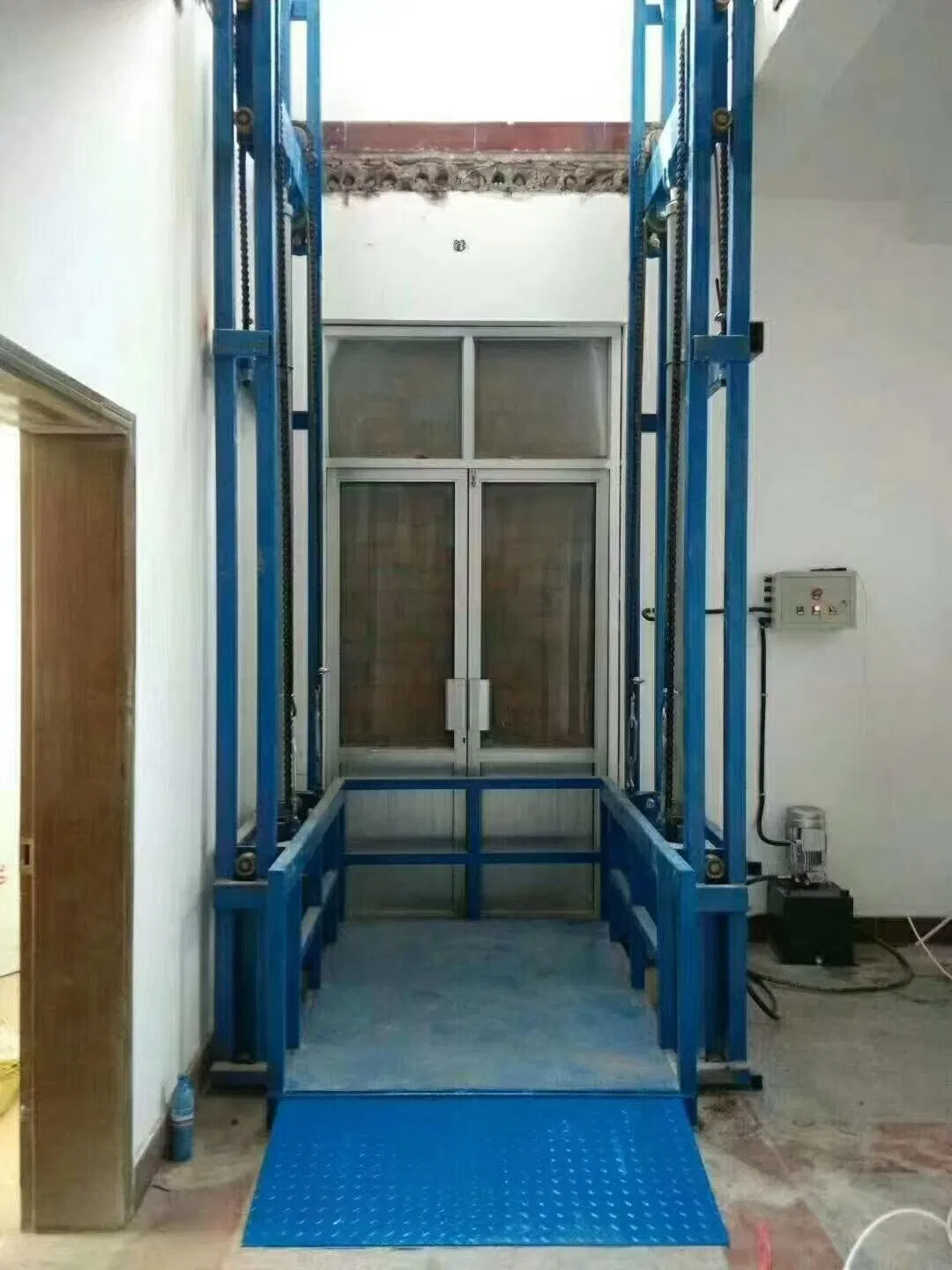

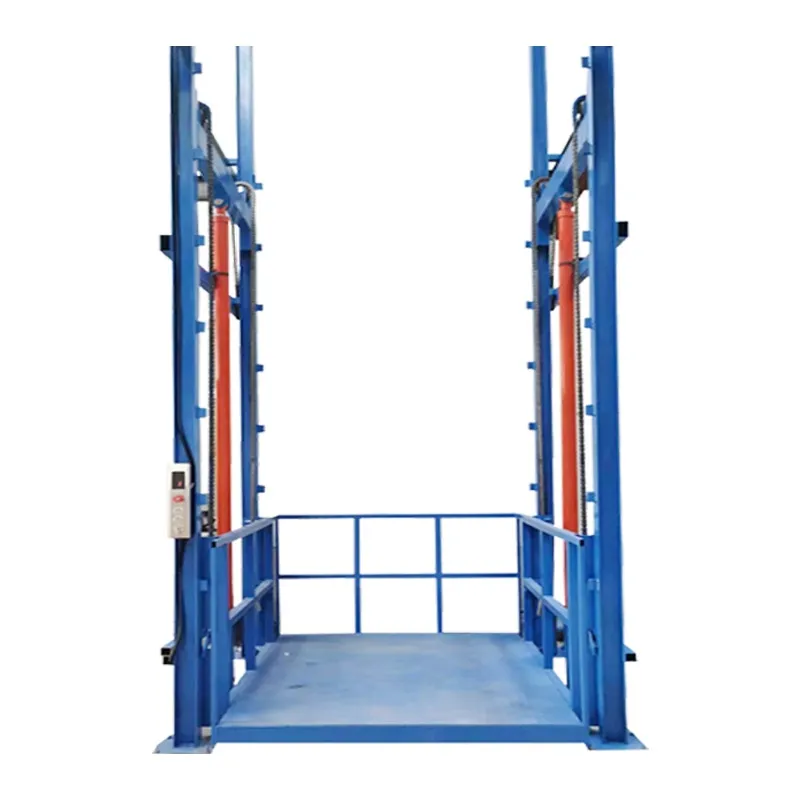

Stationary hydraulic lift platforms are specialized lifting solutions designed for transporting goods between different floors of a building. These units are predominantly utilized for cargo transport across various working levels, as well as car lifting in three-dimensional or underground garages.
Key Safety Features:

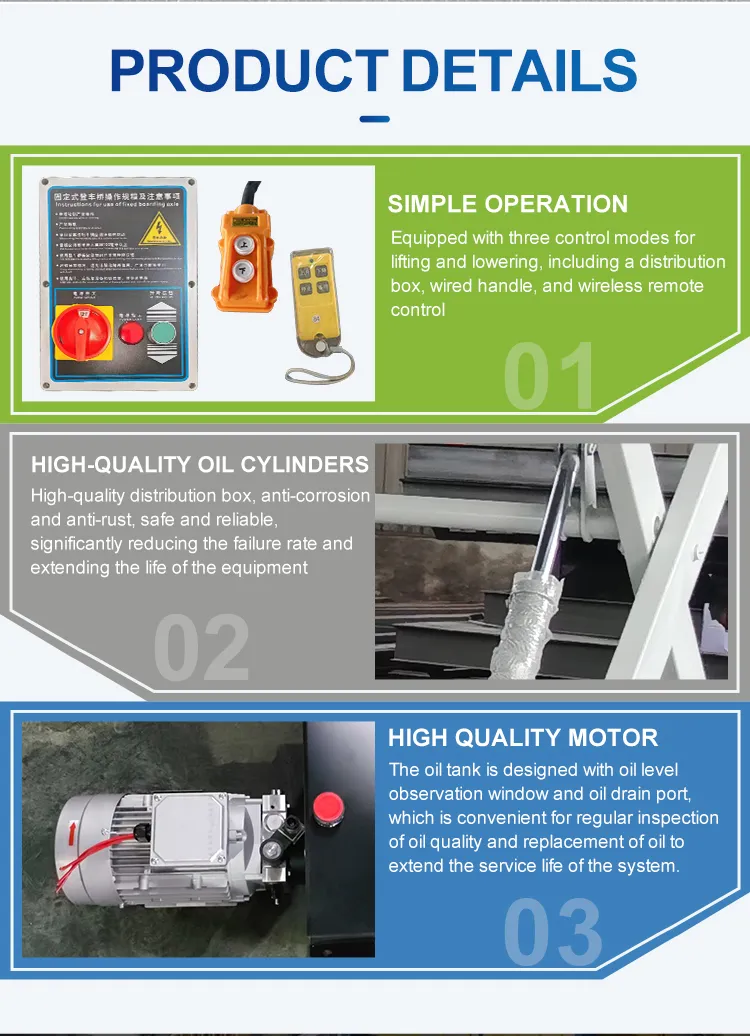

- Hydraulic system equipped with fall and overload protection devices.
- Operate buttons available on each floor and on the lift itself for multi-point control.
- Robust production structure with high carrying capacity and stable lifting performance.
- Economical and practical alternative to standard elevators for low-floor logistics.
| Component |
Specification |
Details |
| Table size | 2000 * 2000mm | Width * Deep |
| Platform load | 3000kg | Heavy-duty capacity |
| Lifting height | 4.5 meters | Net lift reach |
| Rectangular tube | 80*160*5.5mm | High strength square tube |
| Track | 10# H-steel | Material based on height |
| Lifting cylinder | Ø 90*2 | Dual cylinder system |
| Pump stand | 380V/5kw Ac380.50hz | Multi-valve block combination |
| Control method | DC24V | Safe voltage button control |
* Customizable solutions can be provided according to special requirements.
❓ Frequently Asked Questions
Q Are you a manufacturer?

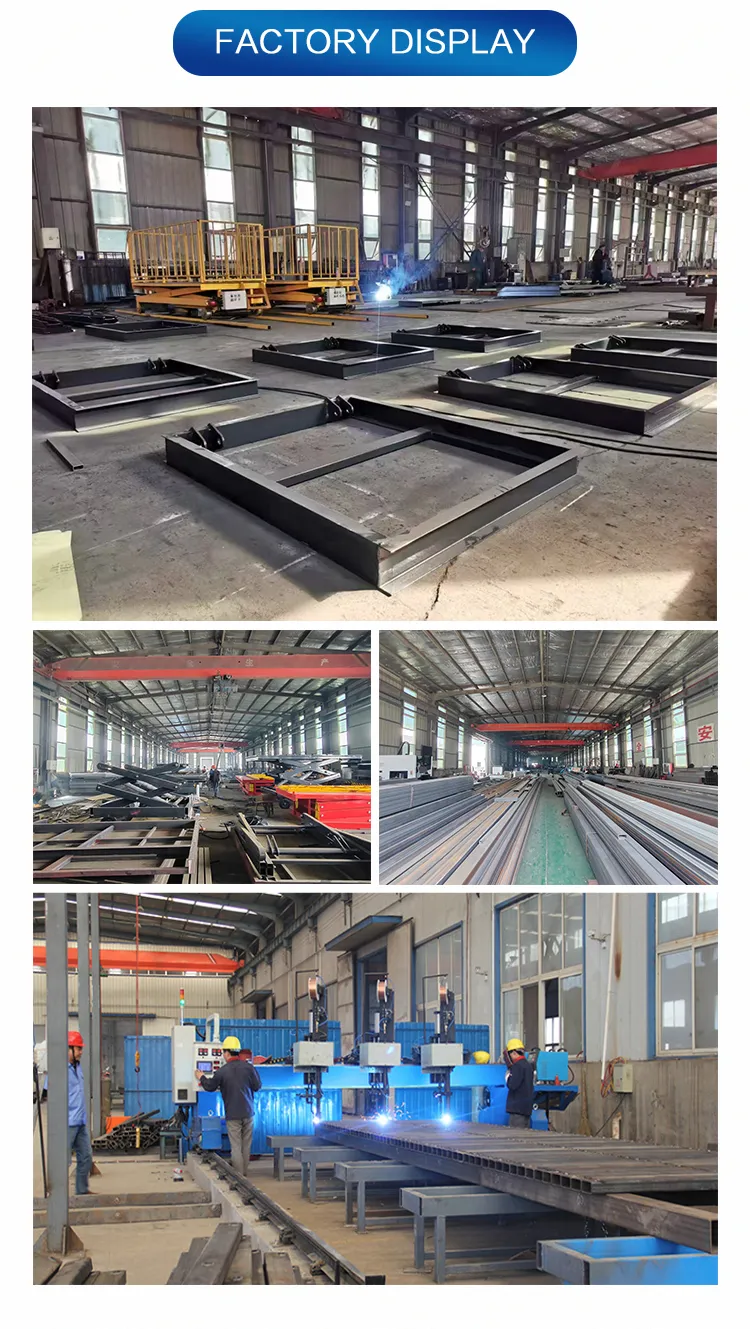

Yes, we are an ISO 9001 certified manufacturing plant with over ten years of experience, featuring 10,000 square meters of production facilities and 12 patented technologies to ensure strict quality control.
Q What logistics methods do you use to ship?
We mainly use FOB/CIF shipping. We also provide customized solutions including air, express, or railway transportation based on your specific requirements.
Q What is included in your after-sales service?
We provide a comprehensive one-year warranty. Our technical support is available to assist with any questions or component needs following your purchase.
Q Can the equipment be installed in extreme weather conditions?
Yes, our equipment is designed to withstand ambient temperatures ranging from -40°C in cold climates up to 55°C in hot environments.
Q Is the installation process difficult?
Our equipment is designed for easy installation. We provide detailed installation videos upon delivery. If required, professional engineering support can be discussed for on-site assistance.
Q Can you design equipment according to our specific size requirements?
Absolutely. Simply provide your requirements and our professional design team will create a solution tailored to your dimensions and needs.
