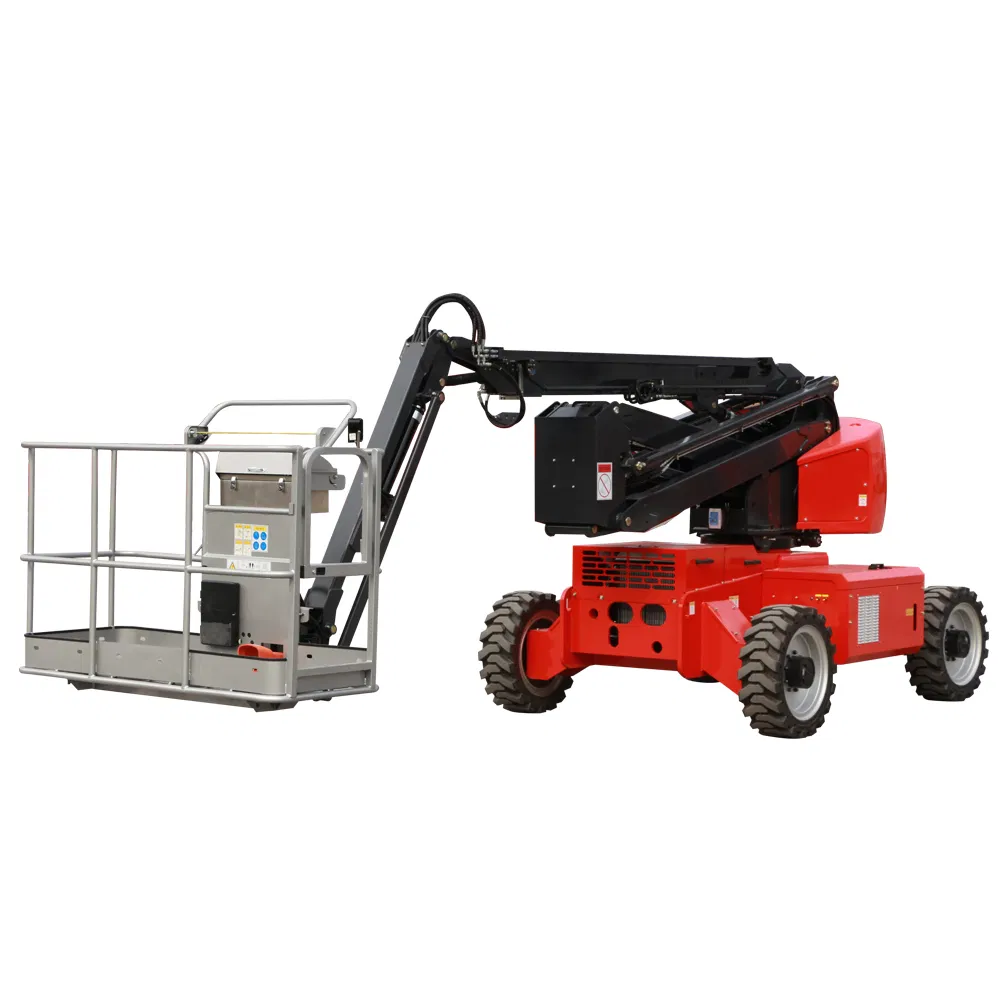

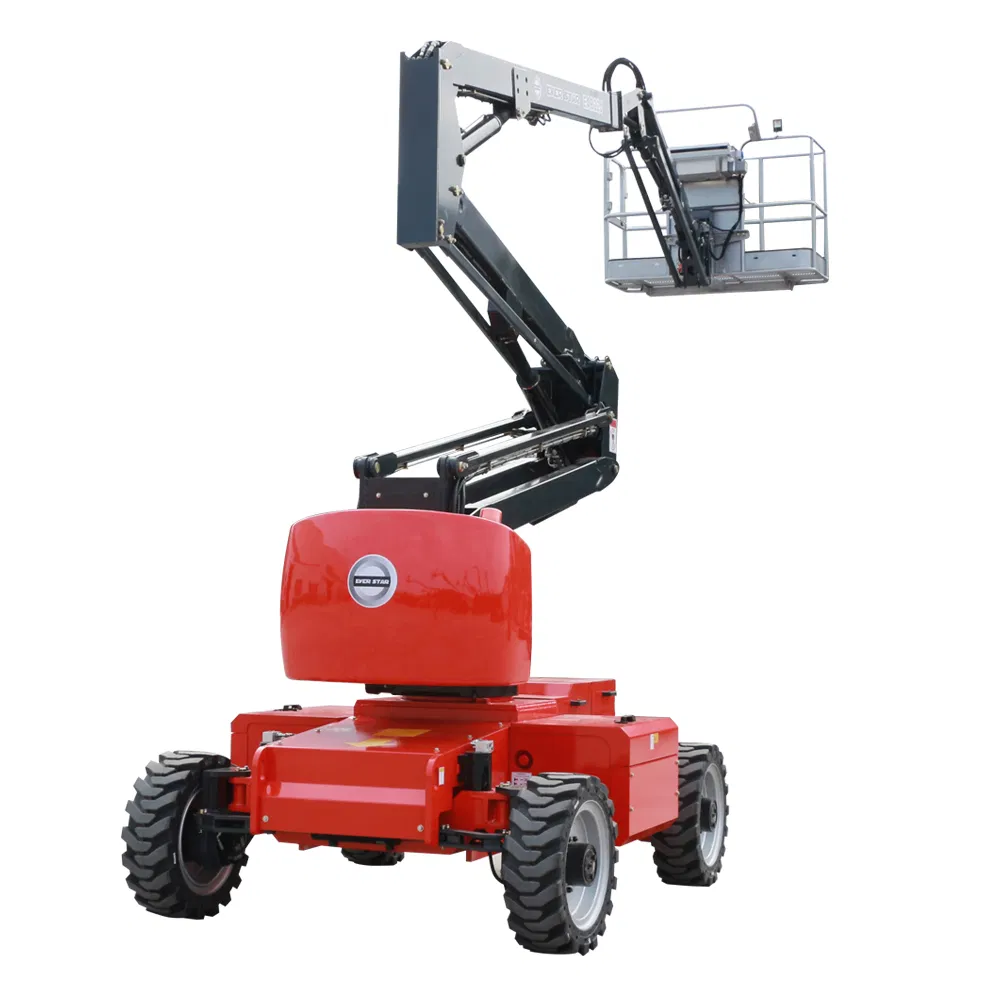

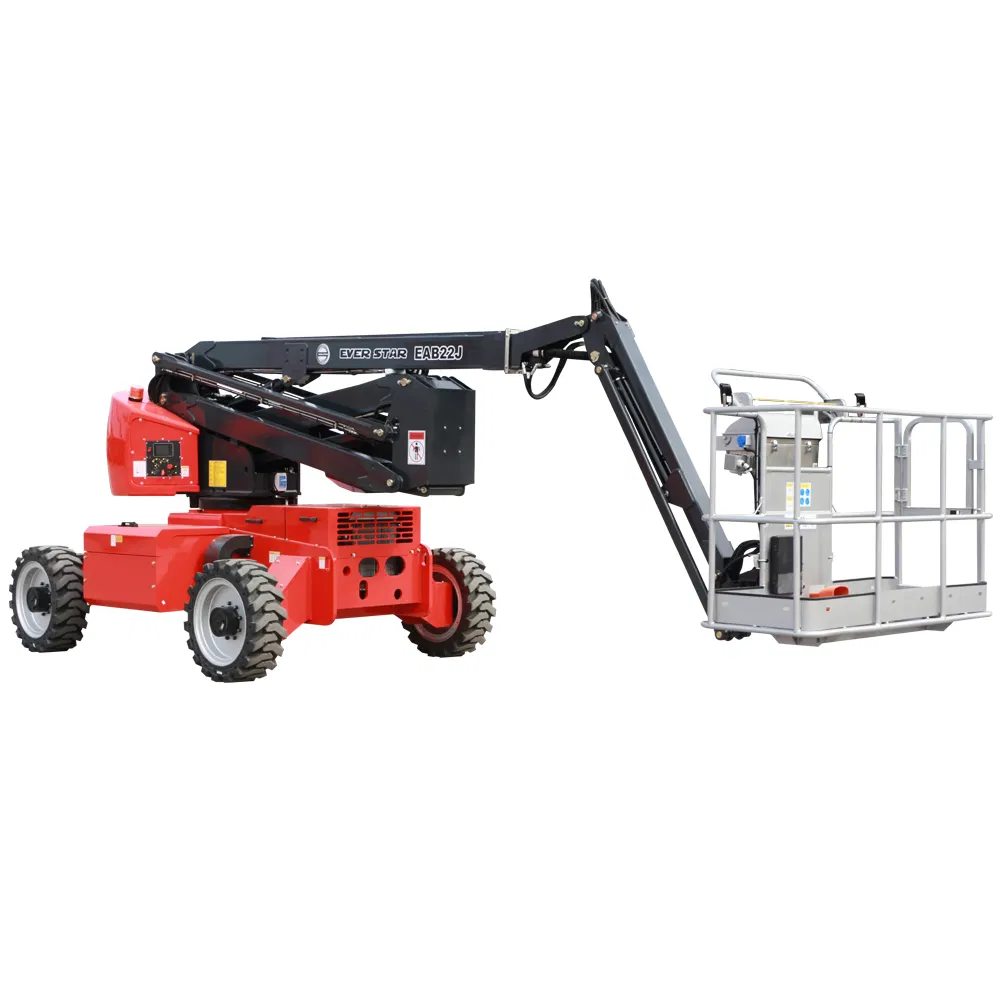

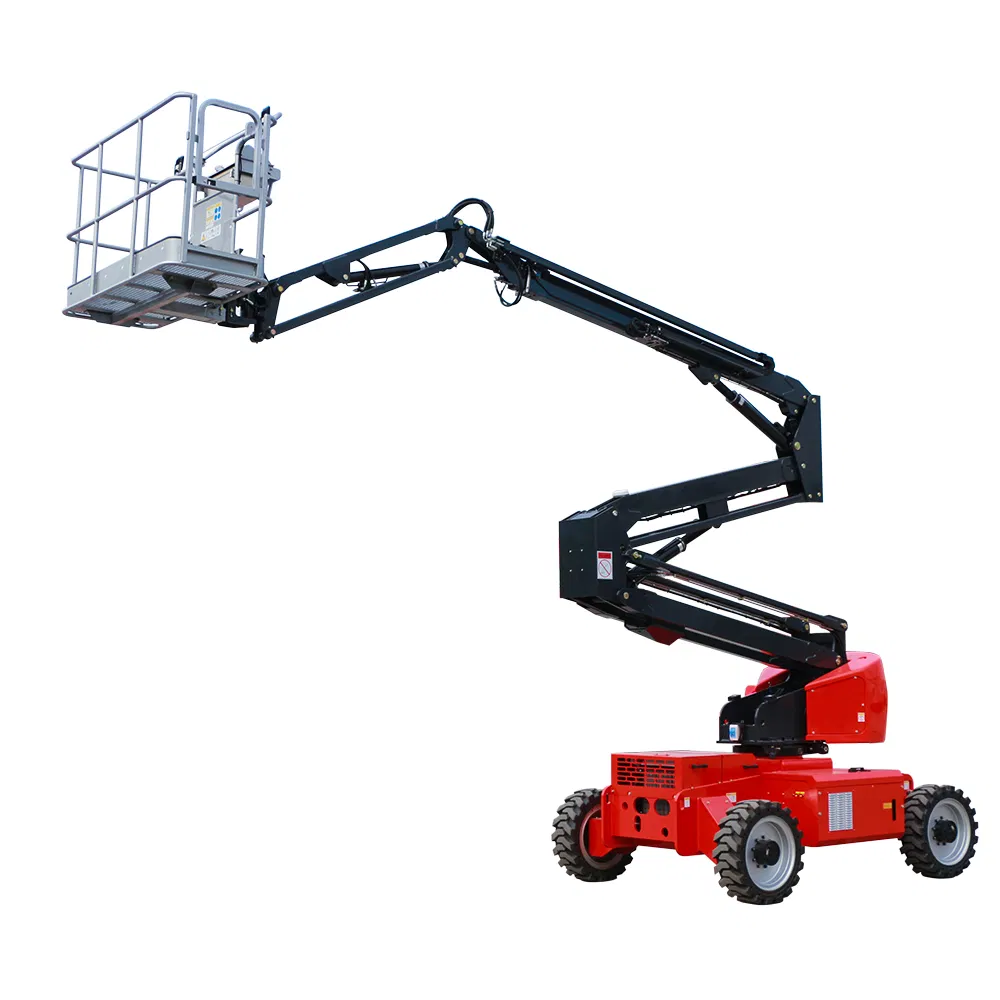

Industrial-Grade Energy-Efficient AC Electric Cherry Picker Warehouse System Articulated Diesel Boom Lift

Customization:	Available
After-sales Service:	Air Freight Components
Warranty:	Entire Machine 1 Year/Structural Parts 5 Year

📊 Basic Information

Model NO.

EAB22J

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Articulated Lift

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

AC

Running Mode

Moving

Feature

Explosion-Proof

Certification

CE, ISO 9001

Working Height Max

22m

Platform Height Max

20m

Horizontal Outreach

12m

Lift Capacity

230kg

Drive Speed (4WD)

4.2km/H

🛠️ Product Description

Optimized Heavy-Duty Performance:
The boom lift features a 230kg platform payload, surpassing comparable models in its class by 28%. This enhanced capacity ensures seamless handling of tools, materials, and personnel.

Precision Control System:
Equipped with a multi-way valve control and pressure compensation technology, the hydraulic system delivers exceptional stability and accuracy during operation. Includes 360° continuous rotation.

Enhanced Safety and Reliability:
High-precision platform load sensor reduces false alarms. Combined with EN280-compliant safety mechanisms like emergency descent systems and guardrails.

Key Advantages:

Heavy-load engineering for demanding tasks
Intelligent hydraulic control for precision movements
Reduced false alarms via advanced sensor technology
Rapid cycle times for heightened productivity
Multi-environment adaptability (indoor/outdoor, rough terrain)

📋 Product Parameters

Item	Unit	Performance Parameters
Max. working height	m	22
Max. platform height	m	20
Max. horizontal outreach radius	m	12
Span height	m	9.4
Lifting capacity (unlimited range)	kg	230
Stowed Length	m	8.54
Width	m	2.38
Stowed Height	m	2.55
Wheelbase	m	2.4
Platform size (length*width)	m	1.83×0.76
Turning radius outside	m	5.66
Maximum grade ability	/	24.4°(45%4WD)
Turntable rotation	/	360°continuous
Overall weight (4WD)	kg	9500
Engine Power	/	36kw/2400rpm

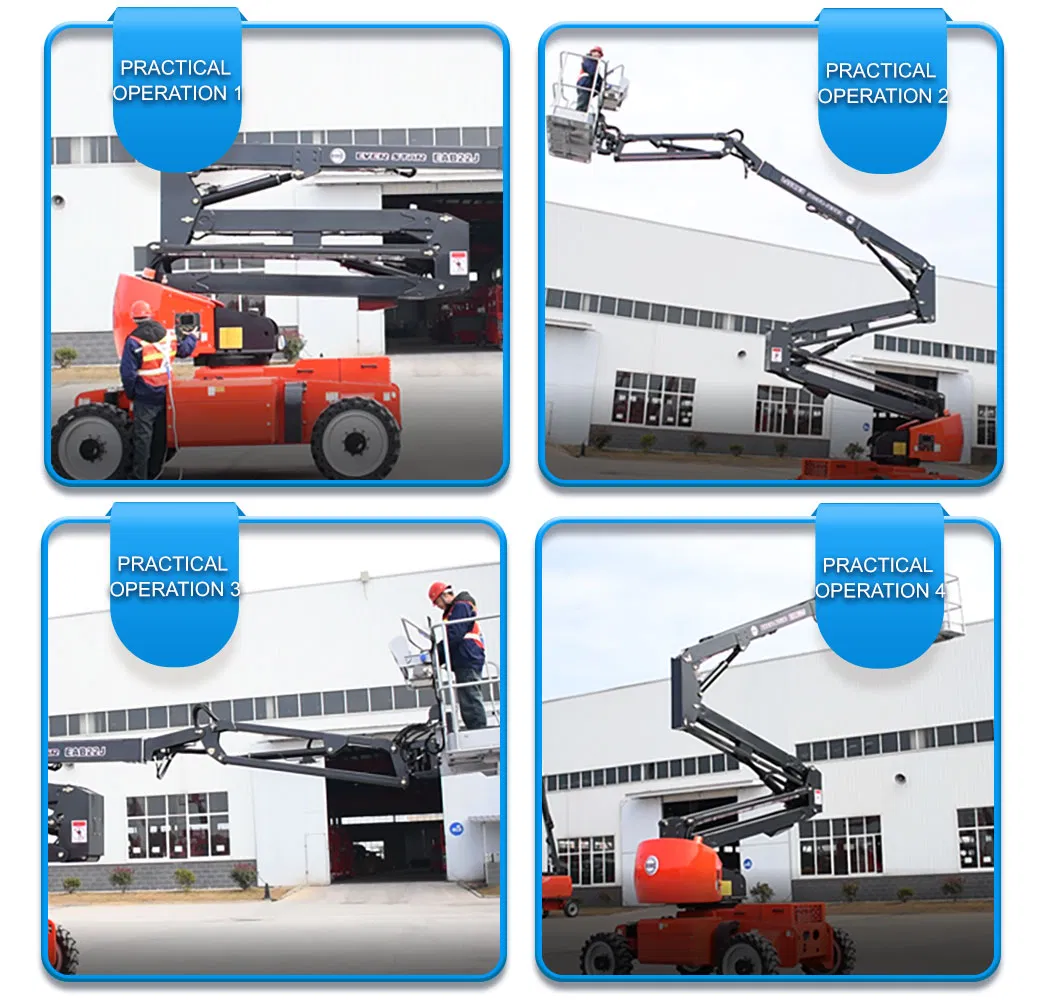

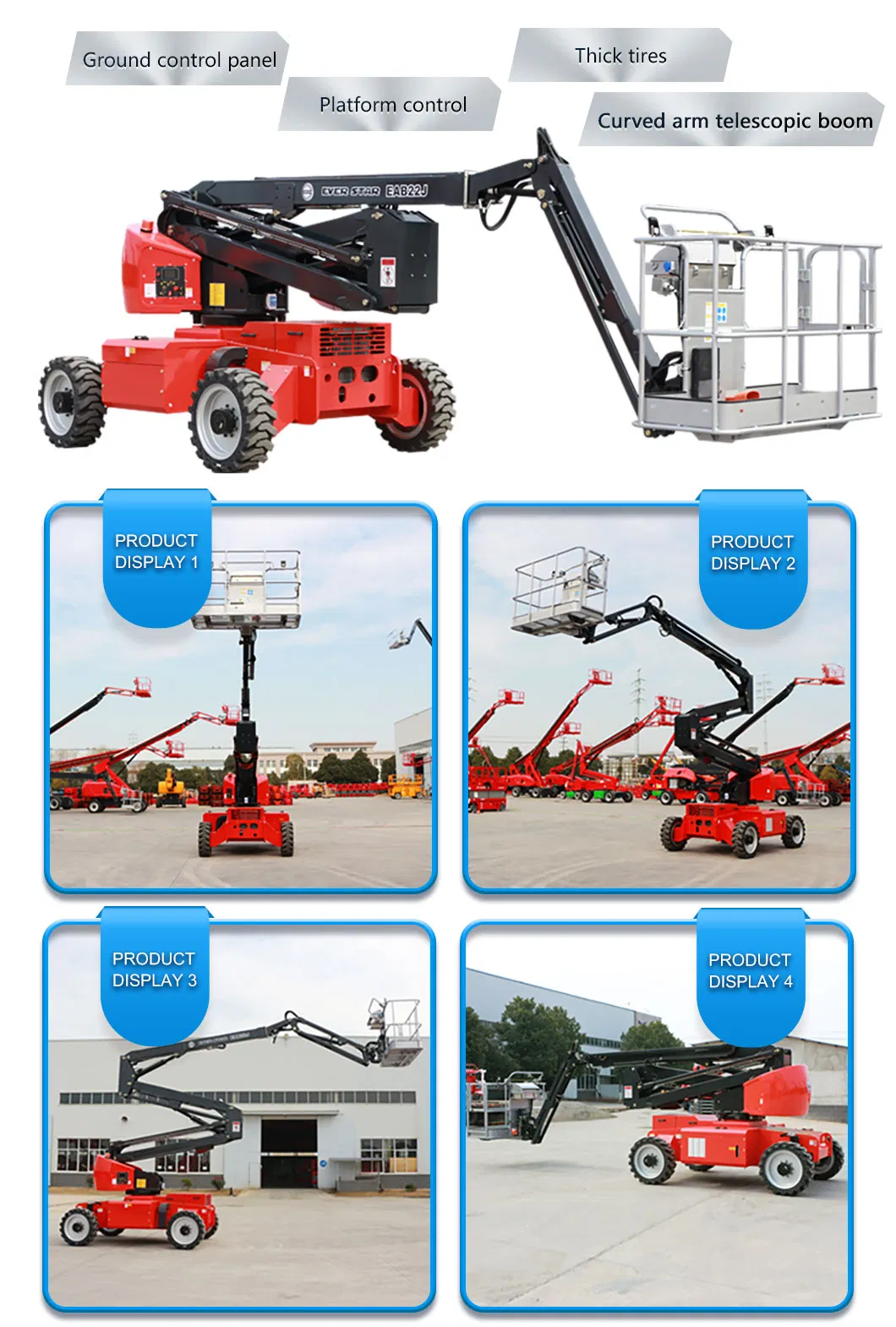

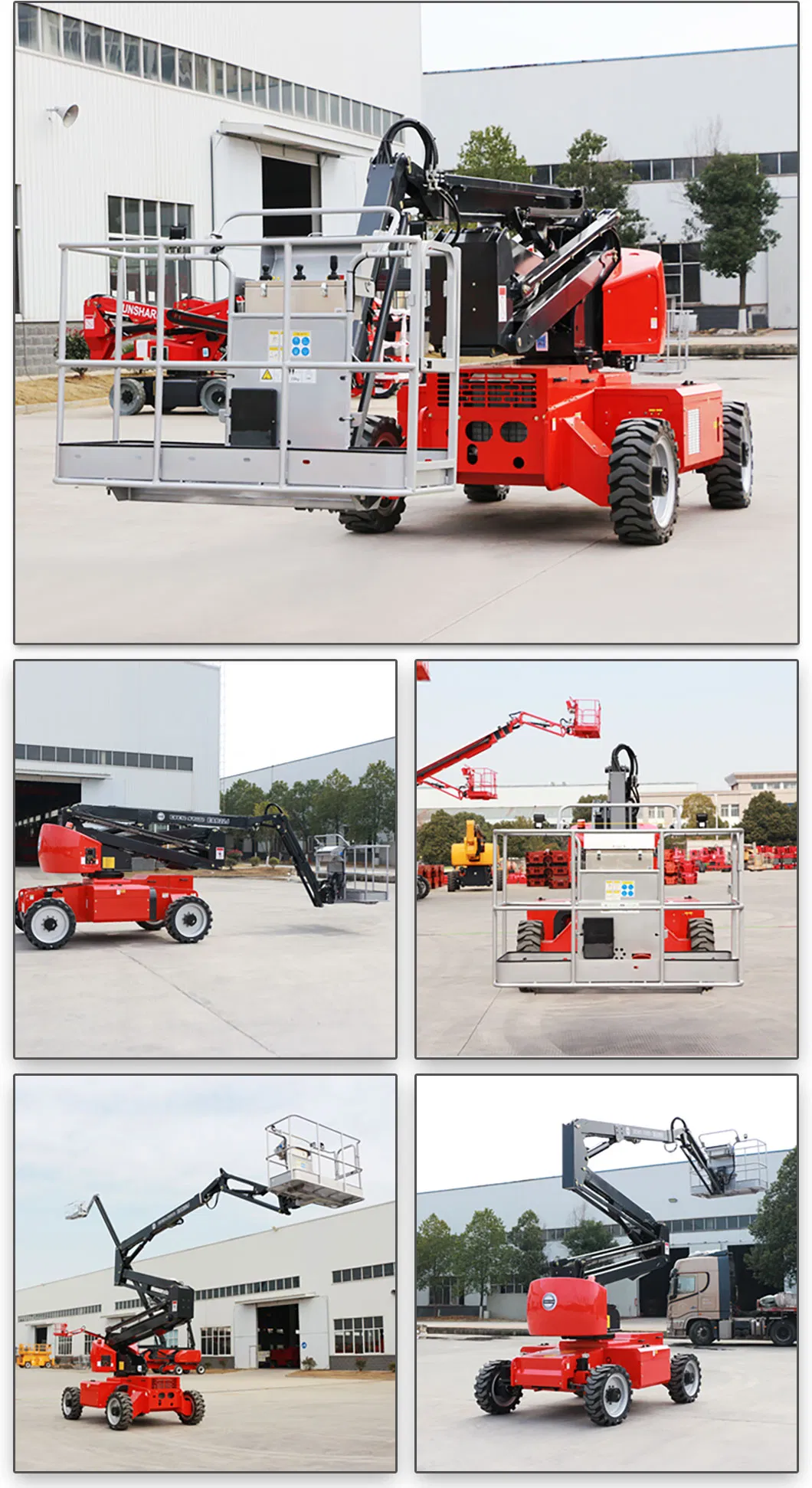

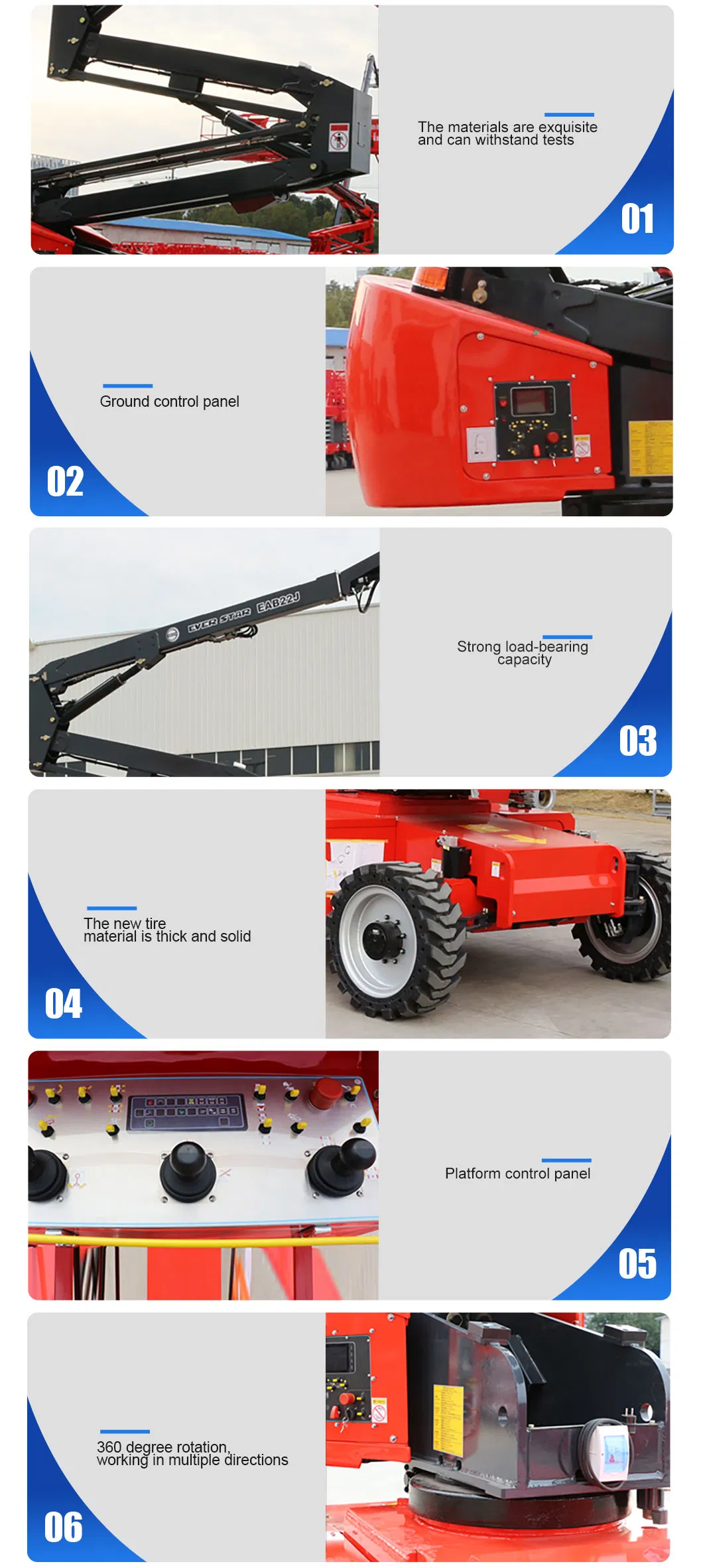

📸 Detailed Photos

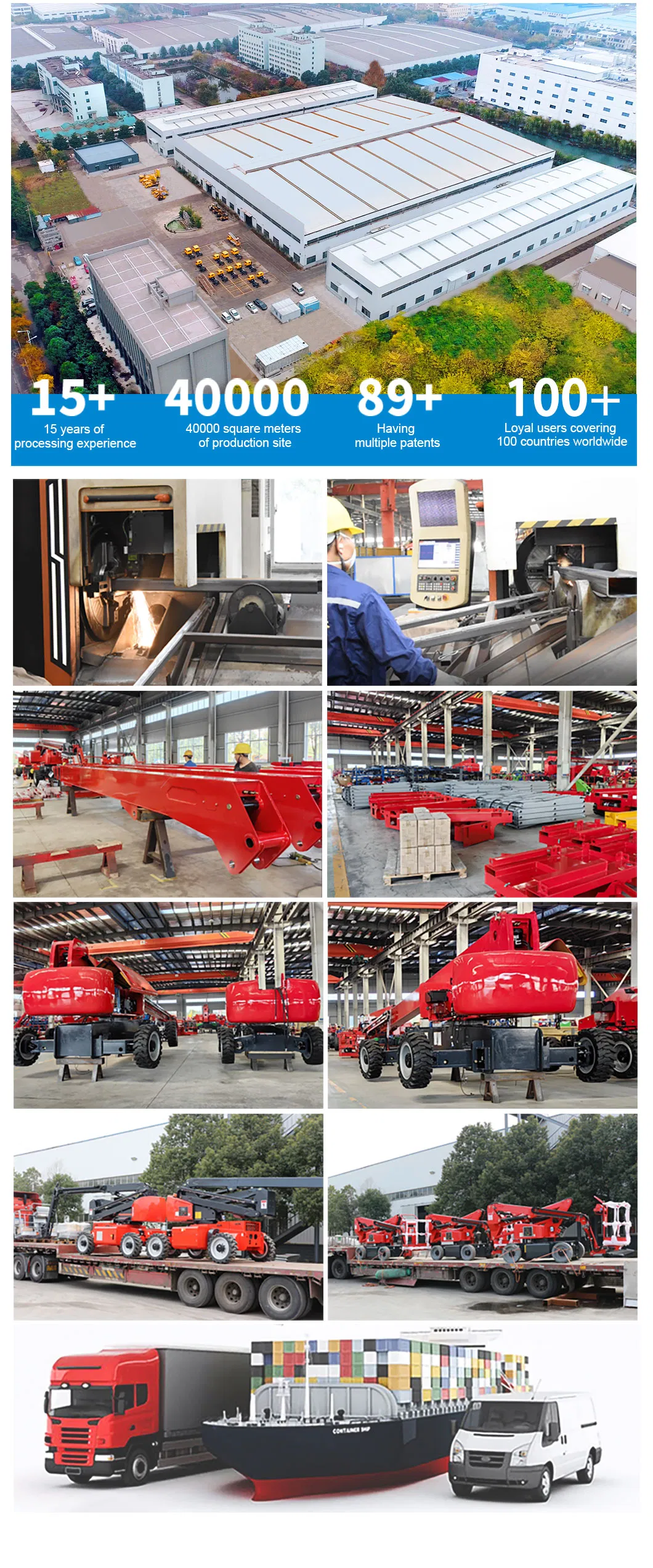

📄 Certifications & Profile

❓ Frequently Asked Questions

1. What is the maximum working height of the EAB22J model?

The EAB22J articulated boom lift reaches a maximum working height of 22 meters, with a platform height maximum of 20 meters.

2. How much weight can the platform safely carry?

The platform has an optimized heavy-duty payload capacity of 230kg, which allows for multiple personnel and necessary tools.

3. Can this equipment handle rough outdoor terrain?

Yes, the 4WD steering system provides 45% (24.4°) gradeability, making it highly effective for rough or uneven outdoor surfaces.

4. What are the rotation capabilities of the turntable?

The turntable supports 360° continuous rotation, allowing for maximum flexibility and access in complex workspaces without repositioning the chassis.

5. Does the machine include safety certifications?

Yes, the equipment is fully certified according to CE and ISO 9001 standards, and features EN280-compliant safety mechanisms.

6. What type of power source does it use?

This model is powered by a high-efficiency AC driven type system, typically featuring Yanmar or Kubota engines for the hydraulic and drive operations.

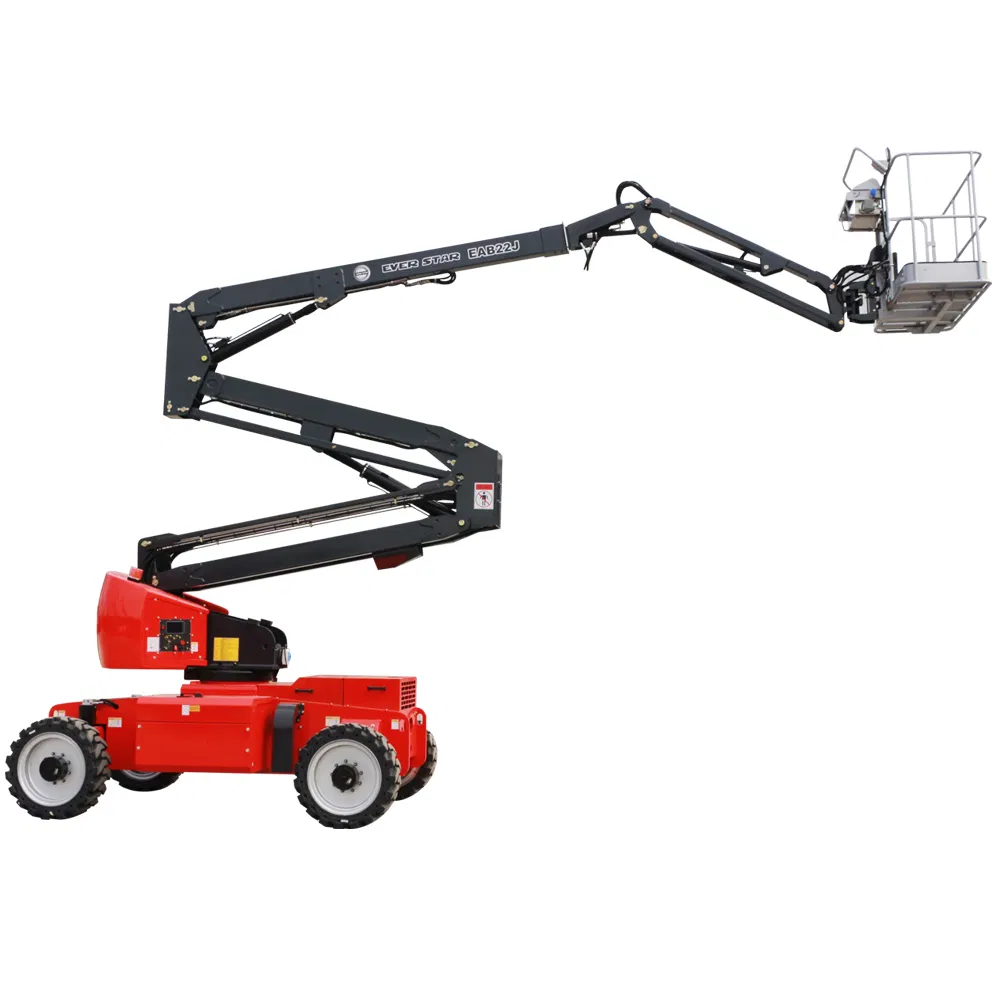

Industrial-Grade Energy-Efficient AC Electric Cherry Picker Warehouse System Articulated Diesel Boom Lift
