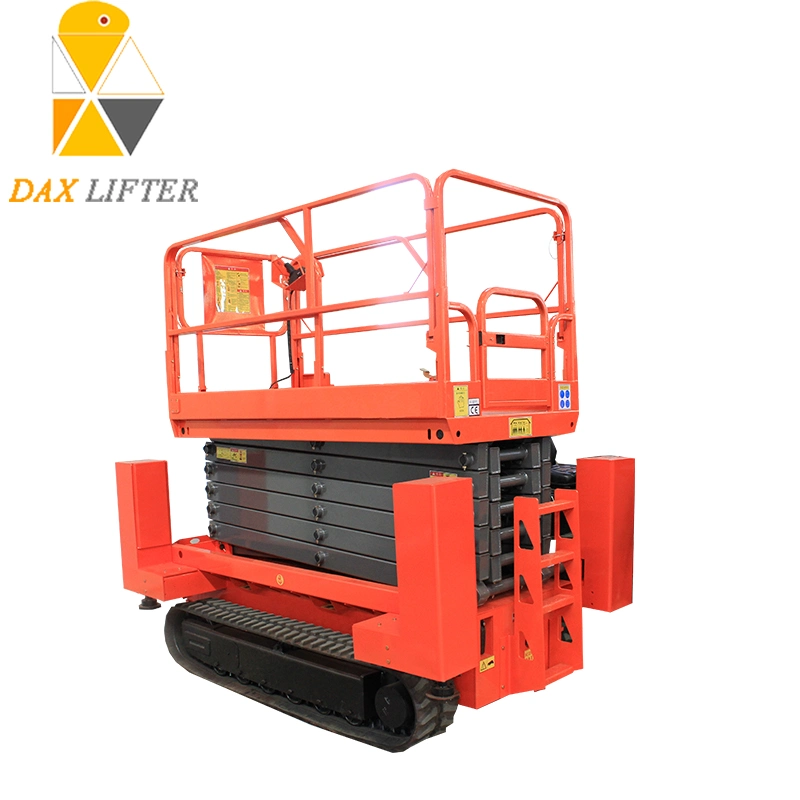

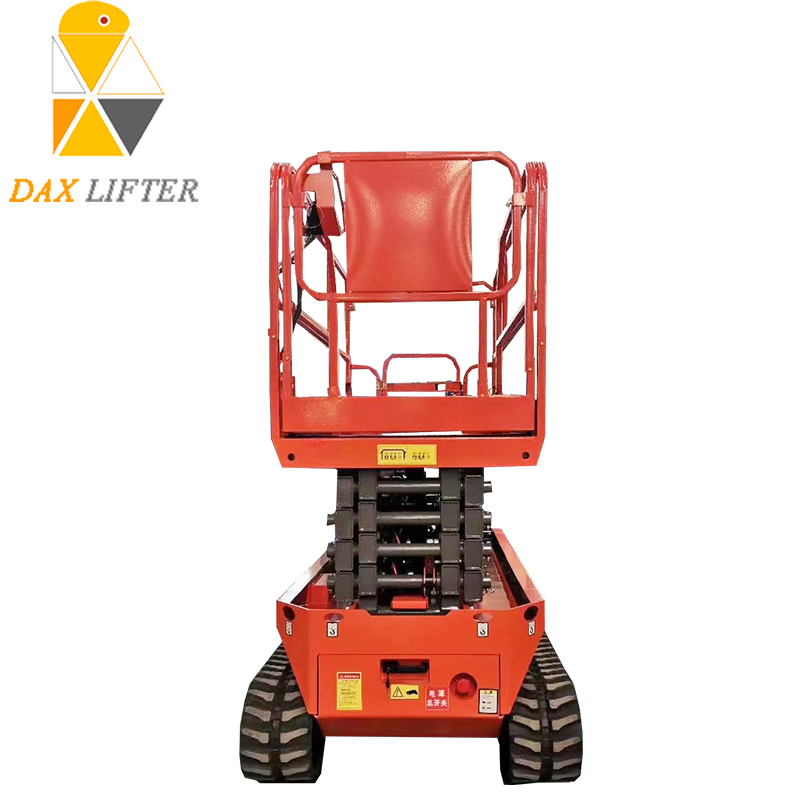

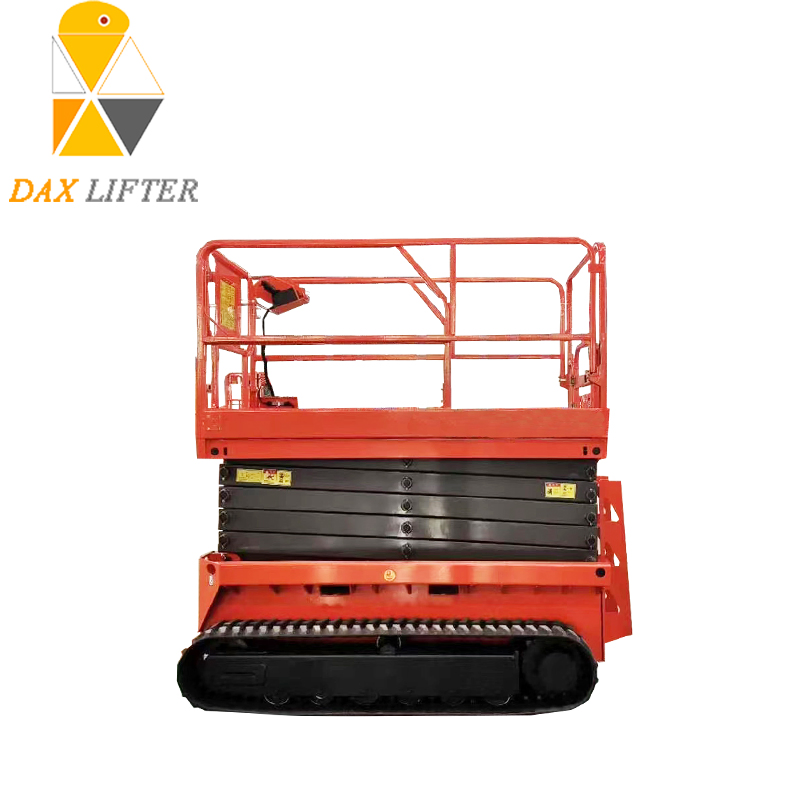

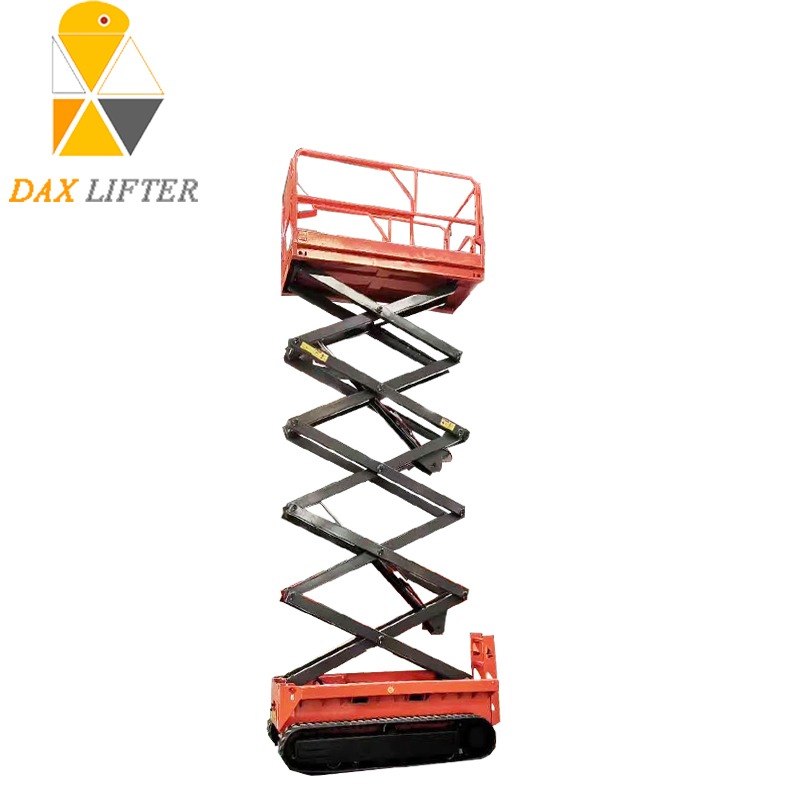

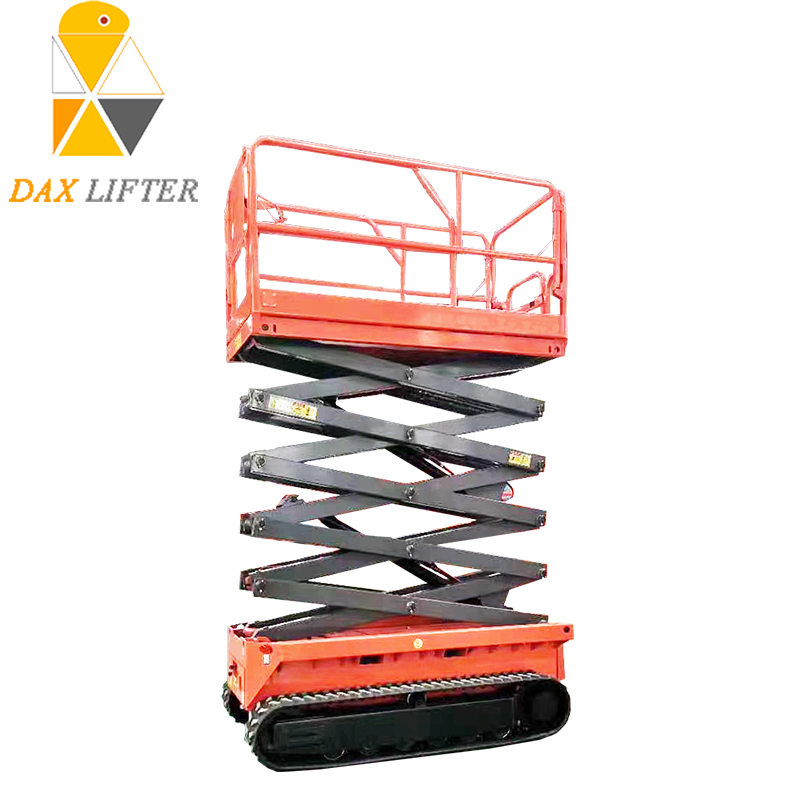

Industrial Stable Structure Rough Terrain Track Type Scissor Lift with Crawler Belt

1 / 5

Industrial Stable Structure Rough Terrain Track Type Scissor Lift with Crawler Belt

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DX Series

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Scissor Lift

Moves

Self-propelled

Driven Type

DC Battery Power

Feature

Explosion-Proof, Insulating

Certification

CE, ISO 9001

Height Range

6-12m

Capacity

320-450kg

Origin

China

Outdoor Battery Power Crawler Scissor Lift for Rough Terrain

This Rough Terrain Crawler Scissor Lift is specially designed for challenging working environments. The crawler track design provides excellent stability and traction, allowing the lift to cross obstacles and navigate rough surfaces such as grassland and construction sites with ease.

The Crawler Type Scissor Lift ensures maximum accessibility where traditional wheeled lifts might struggle. It is an ideal solution for outdoor maintenance and installation tasks on uneven ground.

Technical Data

Model	DX06LD	DX08LD	DX10LD	DX12LD
Capacity	450kg	450kg	320kg	320kg
Max Platform Height	6m	8m	9.75m	11.75m
Max Working Height	8m	10m	12m	14m
Overall Length	2470mm	2470mm	2470mm	2470mm
Overall Width	1390mm	1390mm	1390mm	1390mm
Platform Size	2270*1120mm	2270*1120mm	2270*1120mm	2270*1120mm
Drive Speed	2.4km/h	2.4km/h	2.4km/h	2.4km/h
Net Weight	2400kg	2550kg	2840kg	3000kg

Product Gallery

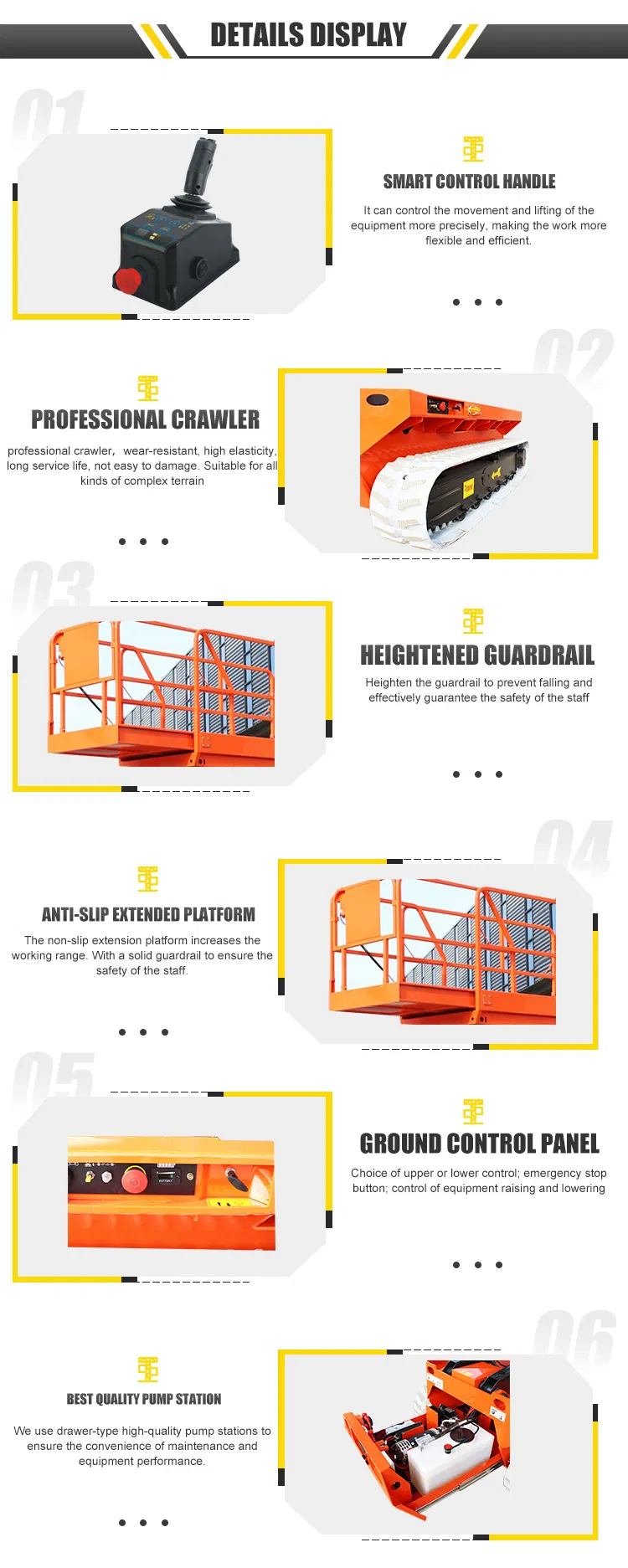

Key Features & Advantages

Extendable Platform The platform can be extended to expand the workspace for operators, allowing for better reach.

Crawler Belt Design The track-based moving method provides strong passing ability and superior stability on soft or uneven ground.

Dual Control Panels Equipped with two operation panels: one on the platform and one at the bottom for convenient control.

Safety Systems Includes an emergency lowering valve, safety explosion-proof valve for tubing, and hydraulic overload protection.

Flexible Operation Steering and movement can be managed by a single person using a master control handle for precise positioning.

Frequently Asked Questions

Q: What makes a crawler scissor lift different from a wheeled one?

A: The crawler track design allows the lift to operate on rough, muddy, or uneven terrain where wheels might get stuck or lose stability.

Q: Can this lift be used indoors?

A: Yes, it is battery-powered (DC), meaning it produces no emissions and is suitable for both indoor and outdoor applications.

Q: What is the maximum weight the platform can carry?

A: Depending on the model, the capacity ranges from 320kg to 450kg.

Q: How do I lower the platform if the power fails?

A: The machine is equipped with an emergency lowering valve that allows the platform to be lowered manually in case of power loss.

Q: Is the platform size adjustable?

A: While the main platform has a fixed size, it includes an extendable section (900mm) to provide extra horizontal reach.

Q: What is the maximum working height available?

A: The series offers a maximum working height of up to 14 meters with the DX12LD model.
