Progan Lift
1 / 5
| Model NO. | GTJZ06E |
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism | Scissor Lift |
| Carrying Capacity | Light Level |
| Moves | Self-propelled |
| Driven Type | AC |
| Running Mode | Moving |
| Feature | Explosion-Proof, Insulating |
| Certification | CE, ISO 9001 |
| Platform Size | 2.27×1.12×1.1m |
| Weight | 2250kg |
| Battery | 24V/200ah |
| Package Size | 220.00cm * 110.00cm * 220.00cm |

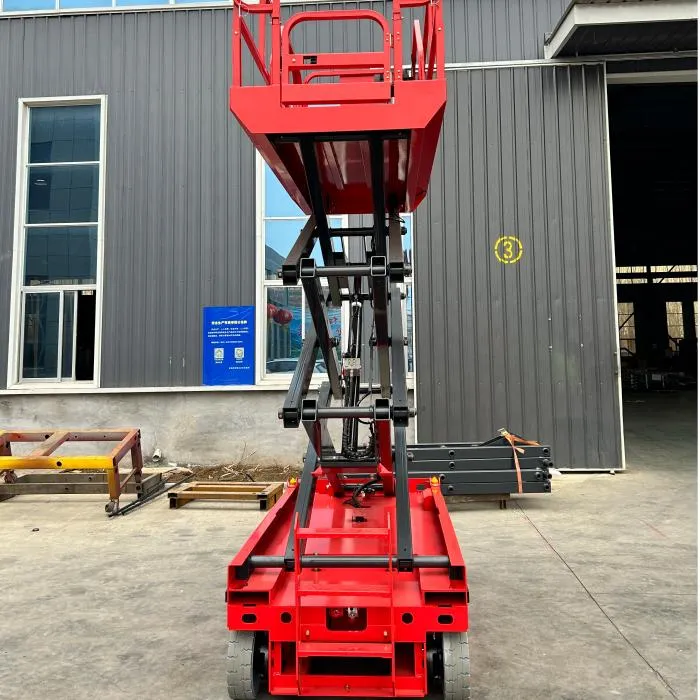

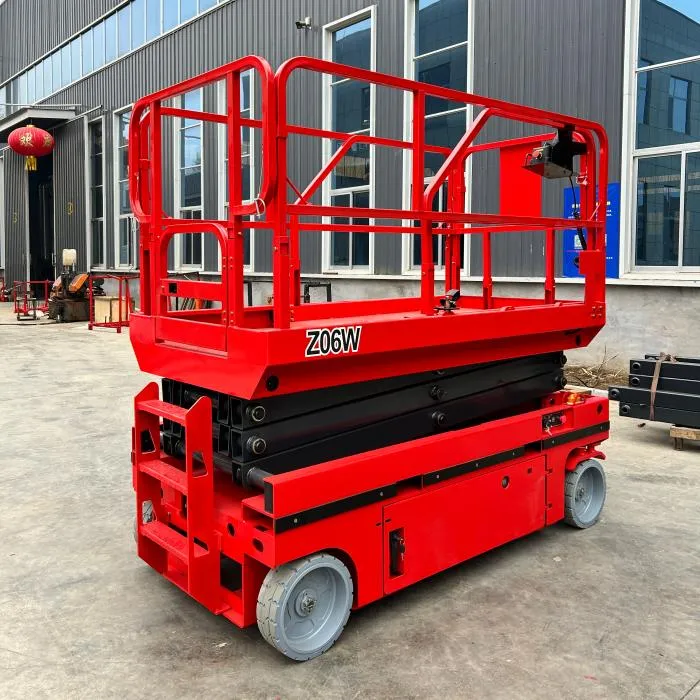

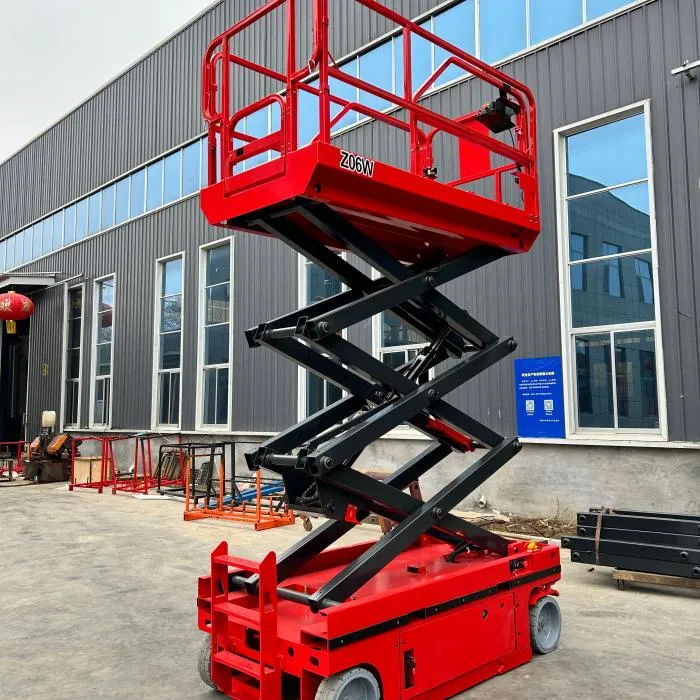

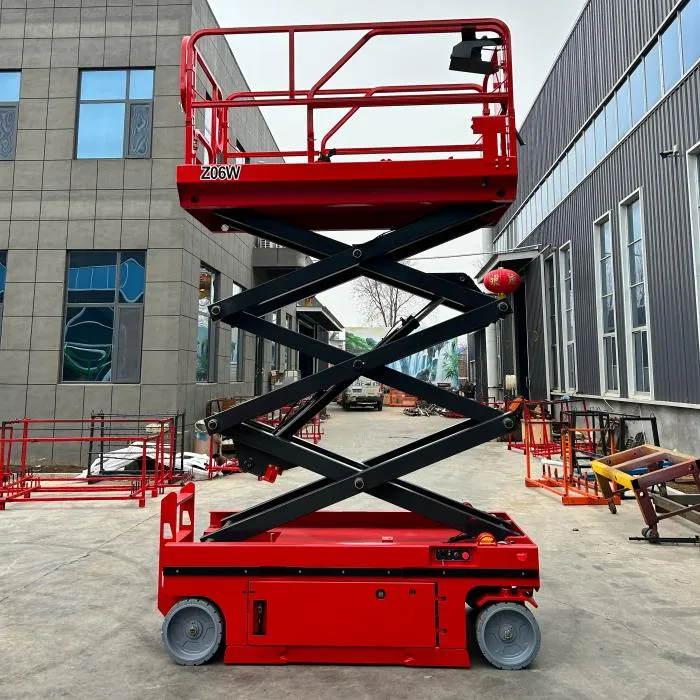

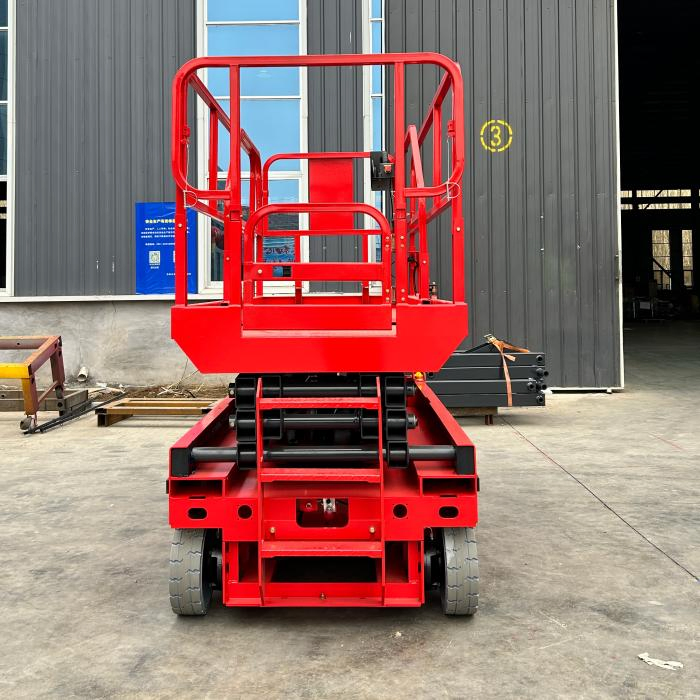

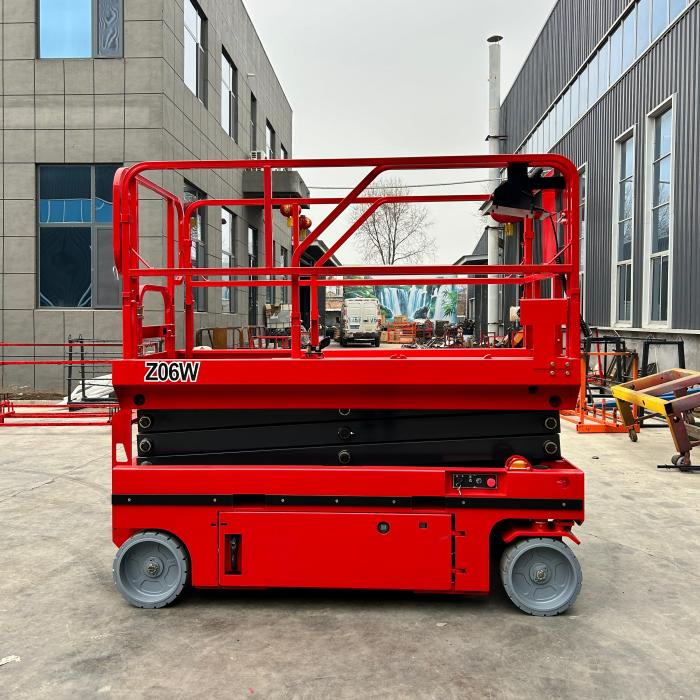

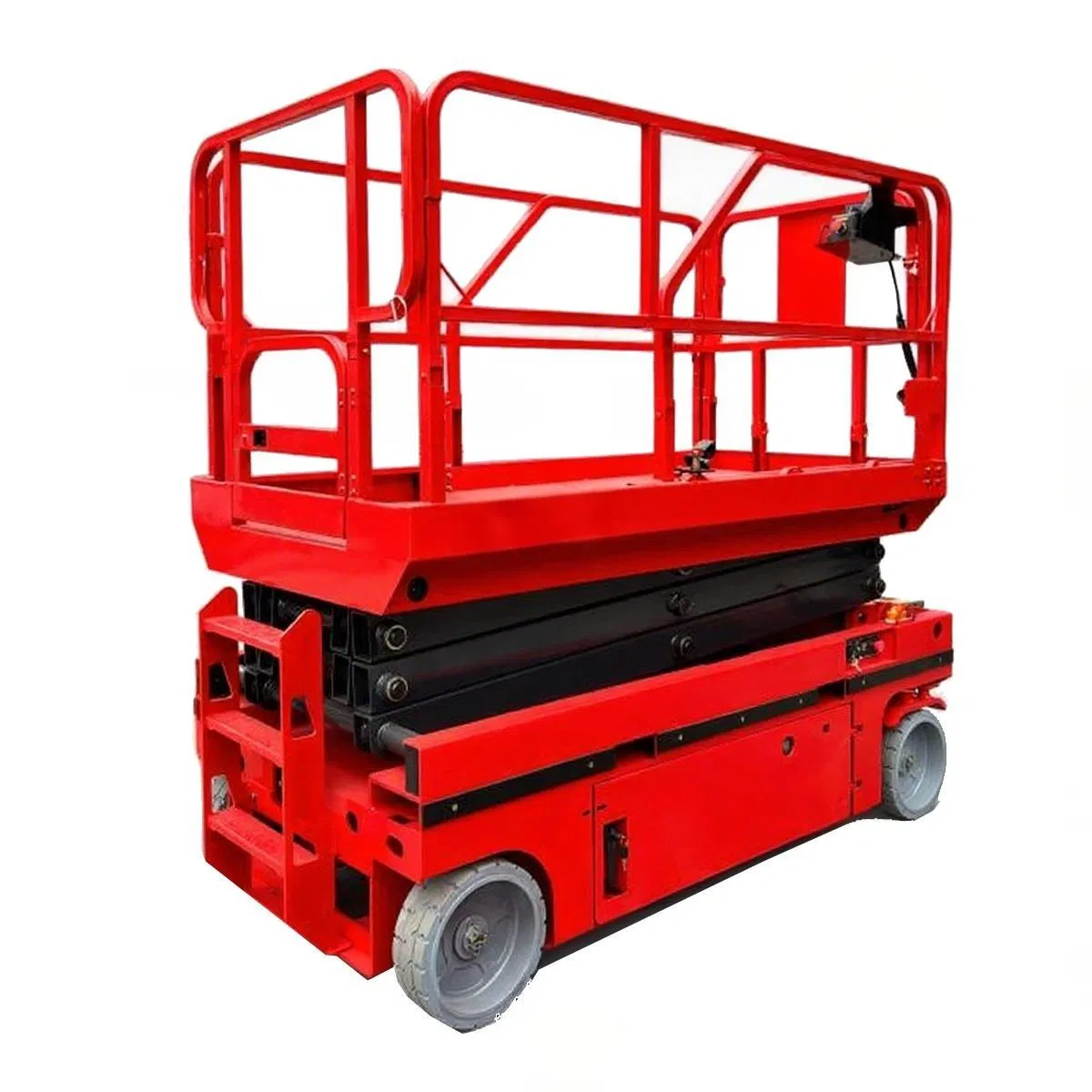

The GTJZ model full electric work platform is designed for efficiency and safety. Both driving and lifting functions are powered by electricity, providing a seamless operation experience with the following key advantages:
| Max. Working Height | 7.8m |
| Max. Platform Height | 5.8m |
| Length-stowed | 2.43m |
| Width-stowed | 1.21m |
| Height-stowed | 2.22m |
| Extension Deck Length | 0.9m |
| Max. Lift Capacity | 450kg |
| Max. Platform Occupancy | 2 Persons |
| Drive Speed (Stowed) | 3.5km/h |
| Gradeability | 25% |
| Tires | Solid non-marking Φ381×127mm |
| Charger | 24V/36A |
