Outdoor Indoor Maintenance Aerial Work Machine Electric Hydraulic Scissor Lift

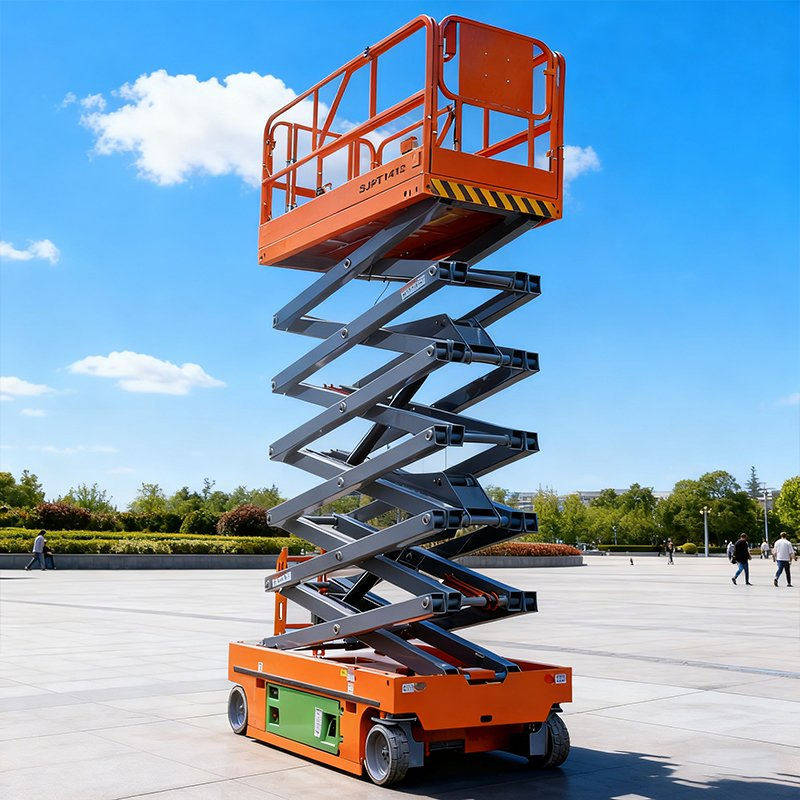

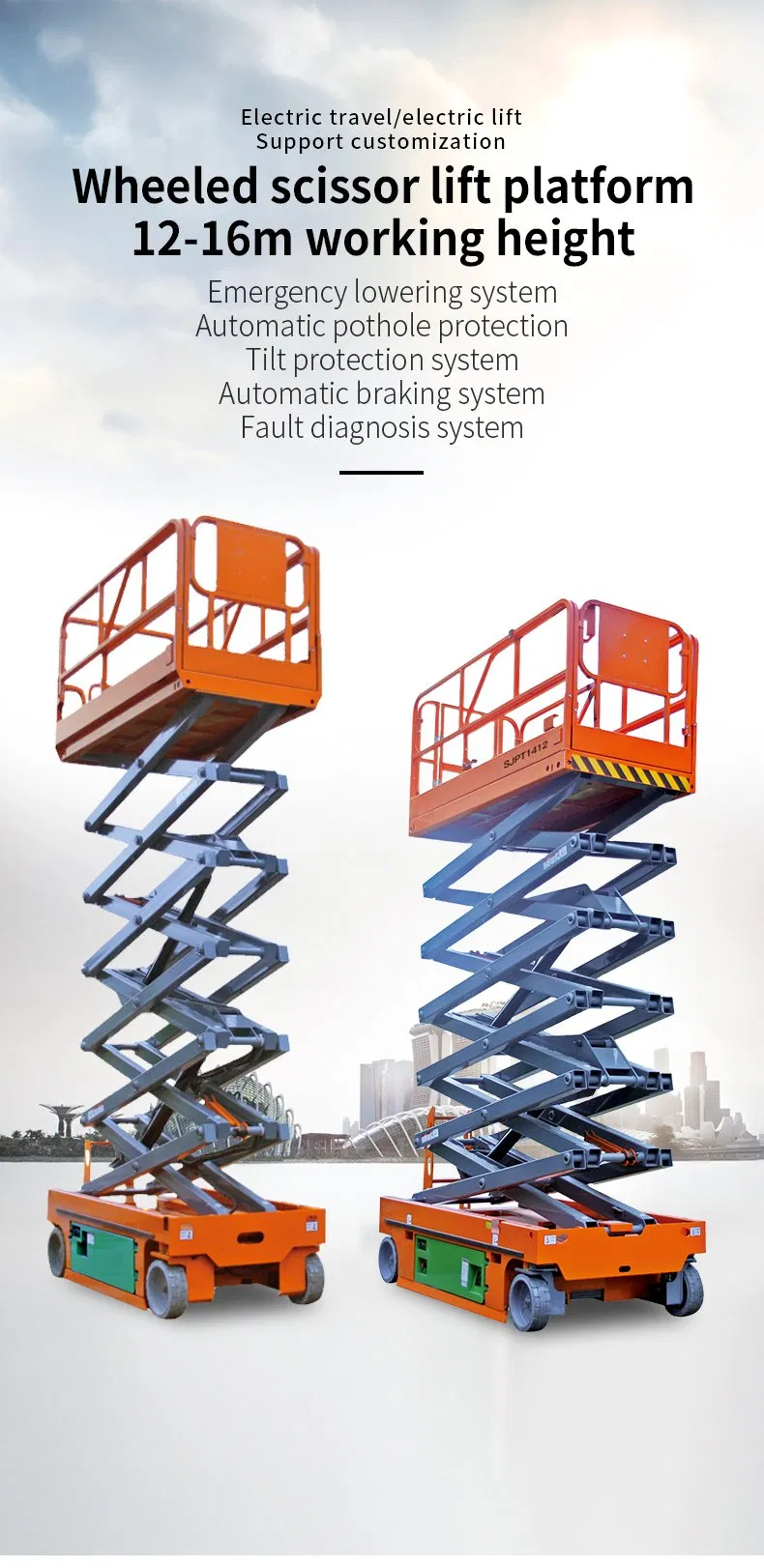

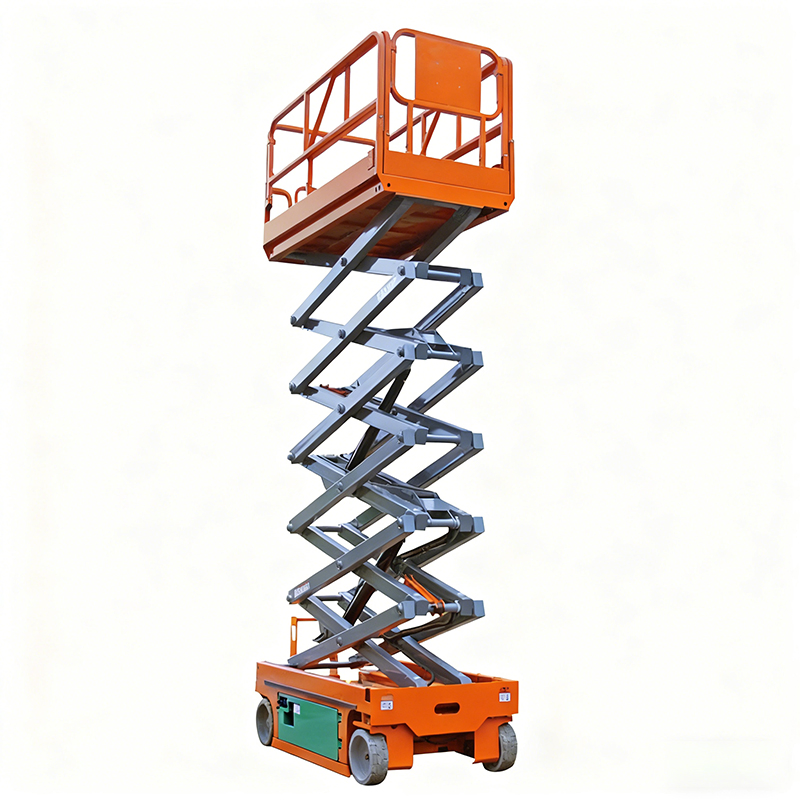

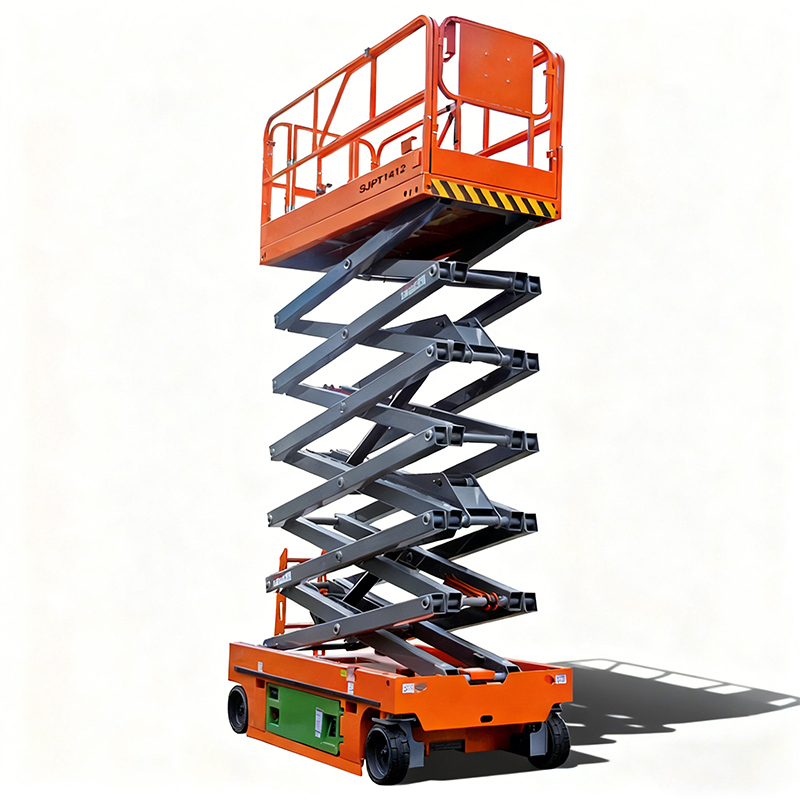

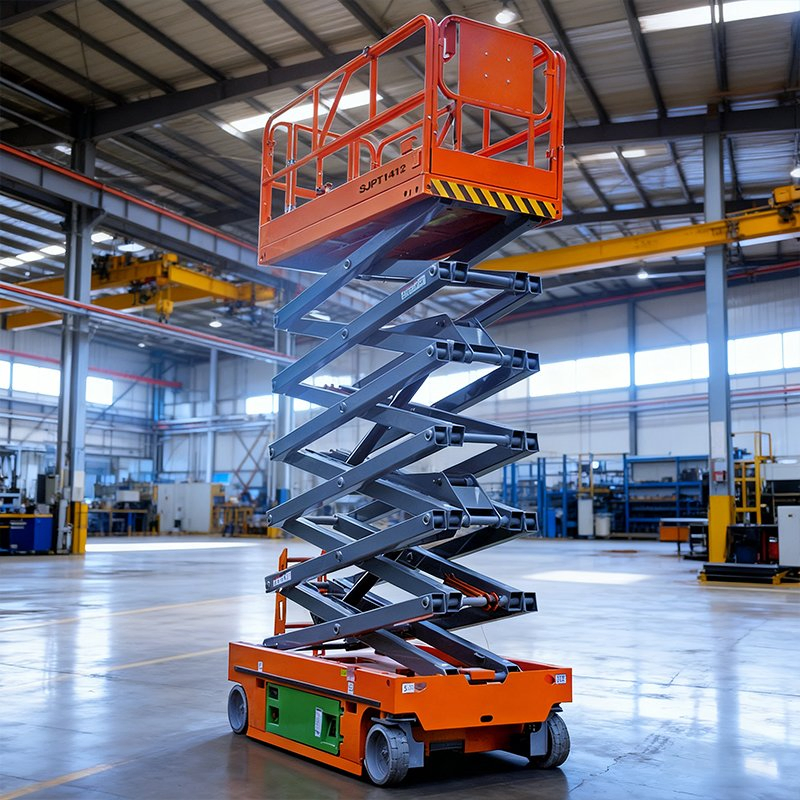

This high-reach electric scissor lift is designed for demanding aerial work tasks, offering exceptional lifting height, smooth electric travel, and multi-layer safety protection. It features a working height range of 12–16m and supports full customization.
| Model | SJPT0812 | SJPT1012 | SJPT1212 | SJPT1412 |
|---|---|---|---|---|
| Dimensions | ||||
| Max. Working Height | 9.8m | 11.8m | 13.8m | 15.8m |
| Max. Platform Height | 7.8m | 9.8m | 11.8m | 13.8m |
| Platform Length/Width | 2270x1130mm | 2270x1130mm | 2270x1130mm | 2730x1130mm |
| Overall Length | 2490mm | 2490mm | 2490mm | 2870mm |
| Performance | ||||
| Rated Load Capacity | 450kg | 450kg | 450kg | 450kg |
| Travel Speed (Stowed) | 3.5Km/h | 3.5Km/h | 3.5Km/h | 3.5Km/h |
| Lift Motor | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Battery | 4×12V/120Ah | 4×12V/120Ah | 4×12V/120Ah | 4×12V/120Ah |
| Machine Weight | 2430kg | 2740kg | 2910kg | 3900kg |

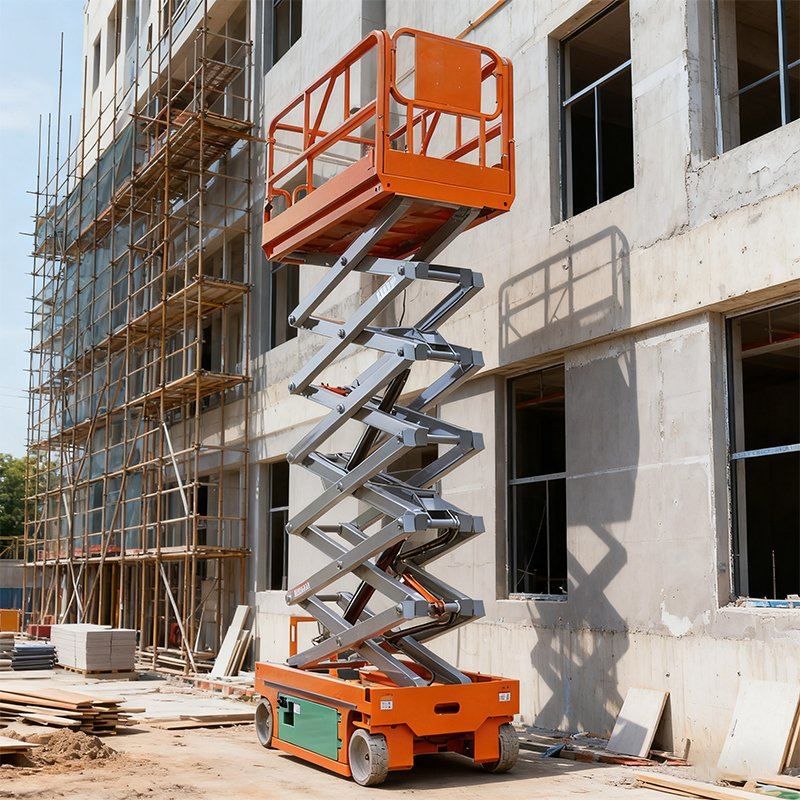

Ideal for indoor operations in large venues, equipment repair, property inspection, overpass pipeline construction, and billboard installation. Suitable for airports, hotels, and shopping malls.
