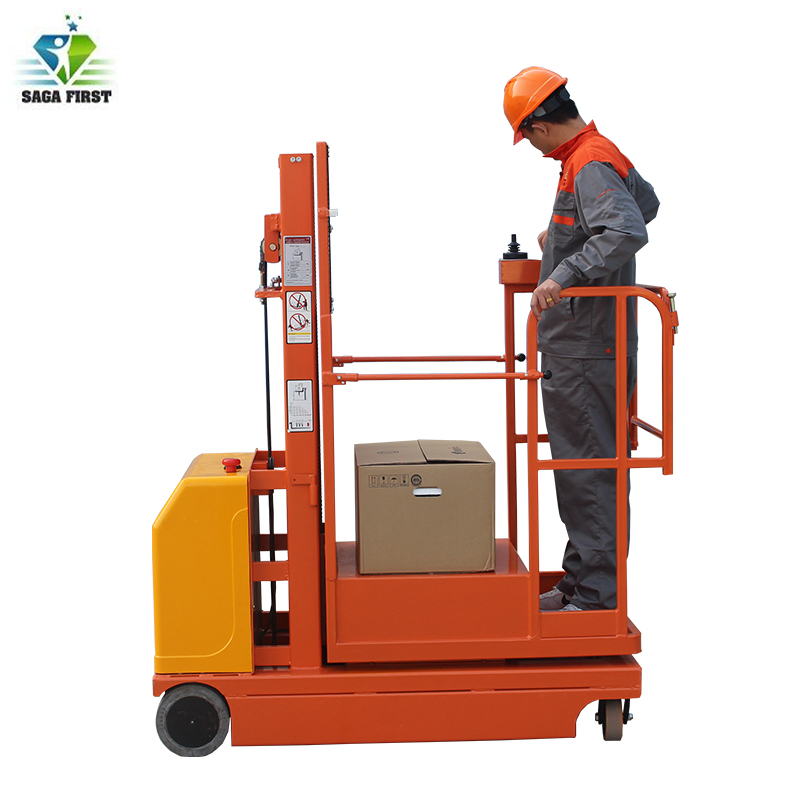

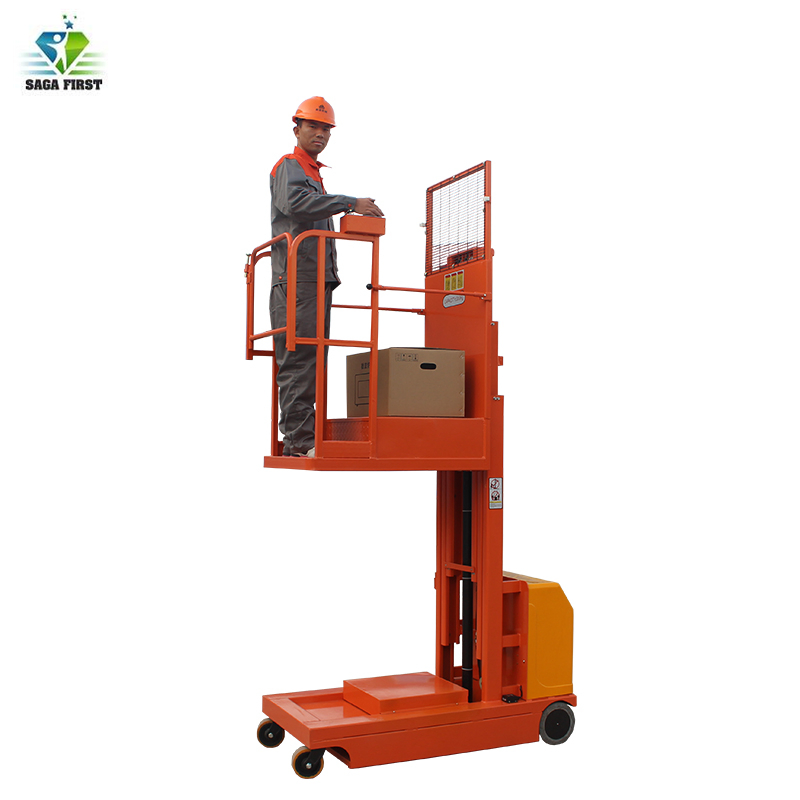

Warehouse Picking up Machine Mobile Order Picker Truck

Basic Specifications

Model NO.:OP

Lift Mechanism:Lift Chain

Carrying Capacity:Middle-Level

Driven Type:DC

Max Platform Height:2.72m, 3.3m, 4.0m, 4.5m

Load Capacity:200kg

Platform Size:600*640mm

Battery:12V/120ah

Quality Warranty:12 Months

Certification:GS, CE, RoHS, ISO 9001

Product Description

Mobile Hydraulic Warehouse Self Propelled Goods Order Picker

Self propelled order picker is a specialized material handling equipment widely utilized in warehouses and supermarkets. Designed primarily for picking up cargo from racks, it allows the operator to control moving, lifting, and turning directly from the platform, significantly enhancing operational efficiency.

Main Configuration

Proportional controls & Self-closing gate on platform
Drivable at full height with non-marking tyres
Automatic brake system & Emergency lowering system
Emergency stop button & Cylinder holding valve
Onboard diagnostic system & Forklift pockets
Charger protection & Flashing beacon

Technical Parameters

Model Type	Unit	OP3-2.7	OP3-3.3	OP3-4.0	OP3-4.5
Max.Platform Height	mm	2700	3300	4000	4500
Max.Machine Height	mm	4120	5000	5400	6000
Rated Capacity	kg	300
Platform Size	mm	600*640
Max.Drive Speed (Stowed)	km/h	4
Min.turning Radius	mm	1500
Driving Motor	v/kw	2*24/0.4
Lifting Motor	v/kw	24/1.6
Overall Net Weight	kg	430	450	660	680

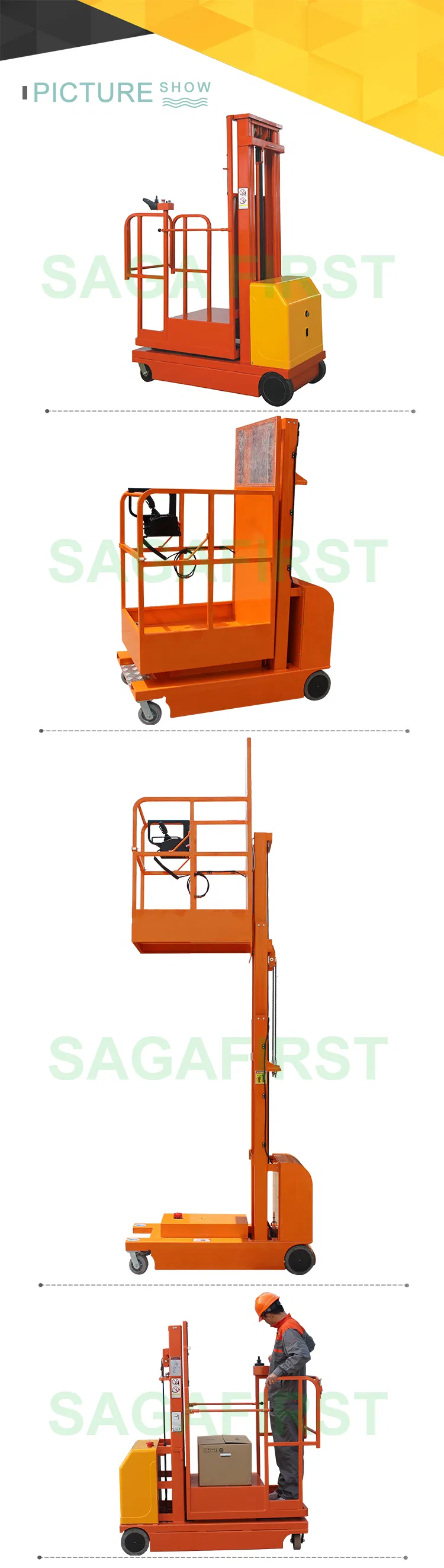

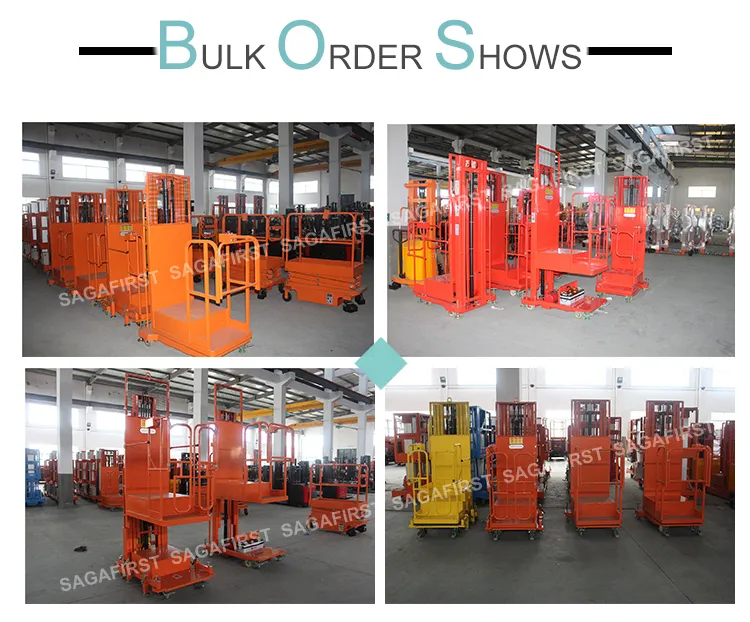

Product Display

Manufacturing Excellence

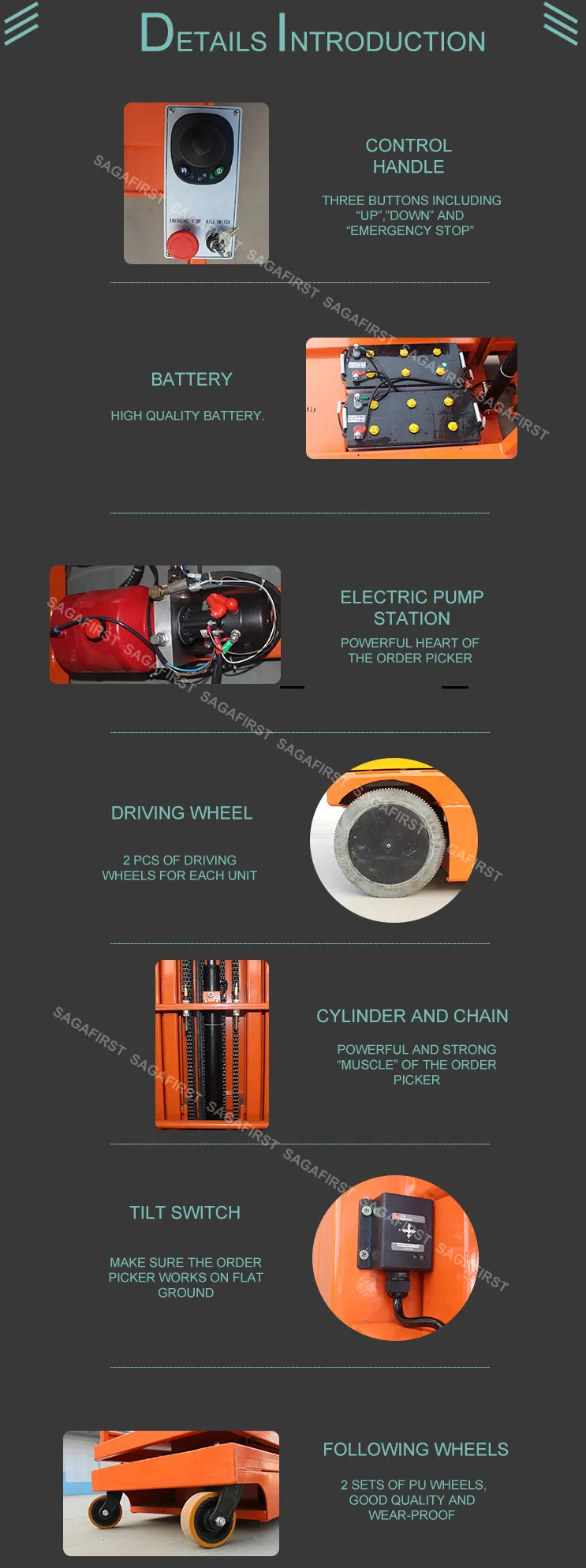

The order picker utilizes hydraulic principles where an electric motor drives the pump station, directing oil to the cylinder for lifting. Equipped with dual driving motors, the operator manages all movements—including lifting and turning—via a multifunction handle on the platform.

Professional Services

Customized design of stock order pickers to meet specific requirements.
Expert model recommendations based on your application needs.
Full shipment arrangement from port to destination.
Comprehensive operation and maintenance videos provided.
Fast-track express delivery for replacement parts within 7 days.

Frequently Asked Questions

1. How can I purchase replacement parts if the machine breaks down? The order picker uses highly standardized hardware parts. You can easily source these from local hardware markets or contact us for express delivery.

2. Is it difficult to repair the self-propelled order picker? One of the main advantages is its extremely low failure rate. If an issue occurs, we provide detailed video guidance and instruction manuals to facilitate easy repairs.

3. What is the duration of the quality guarantee? We offer a one-year quality guarantee. During this period, if any failure occurs, replacement parts are provided free of charge.

4. Can this machine be used in confined warehouse spaces? Yes, its zero-turn radius and compact design allow it to navigate easily in and around confined work areas and narrow aisles.

5. What power source does the machine use? Both the moving and lifting functions are powered by a high-capacity 24V battery system, making it fully self-propelled.

6. Is it safe to operate at full height? Yes, the machine is designed to be drivable at full height and includes safety features like an automatic brake system and emergency lowering valve.
