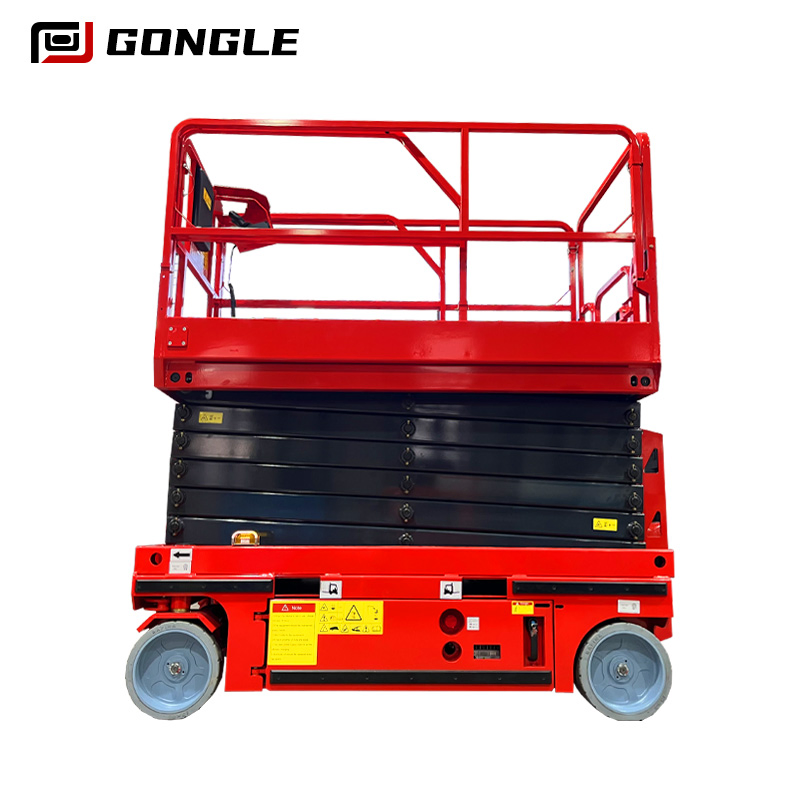

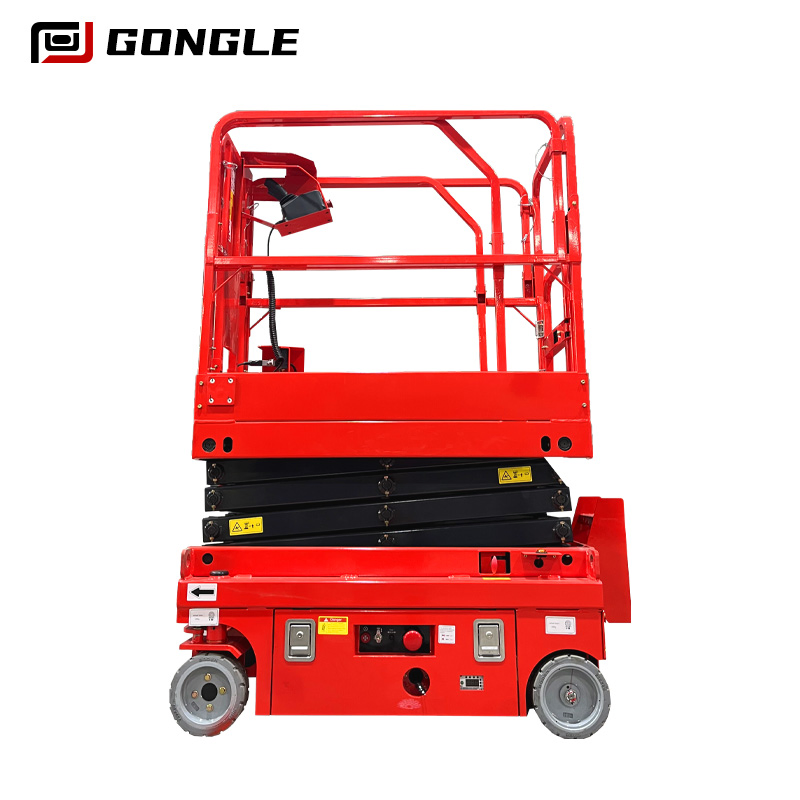

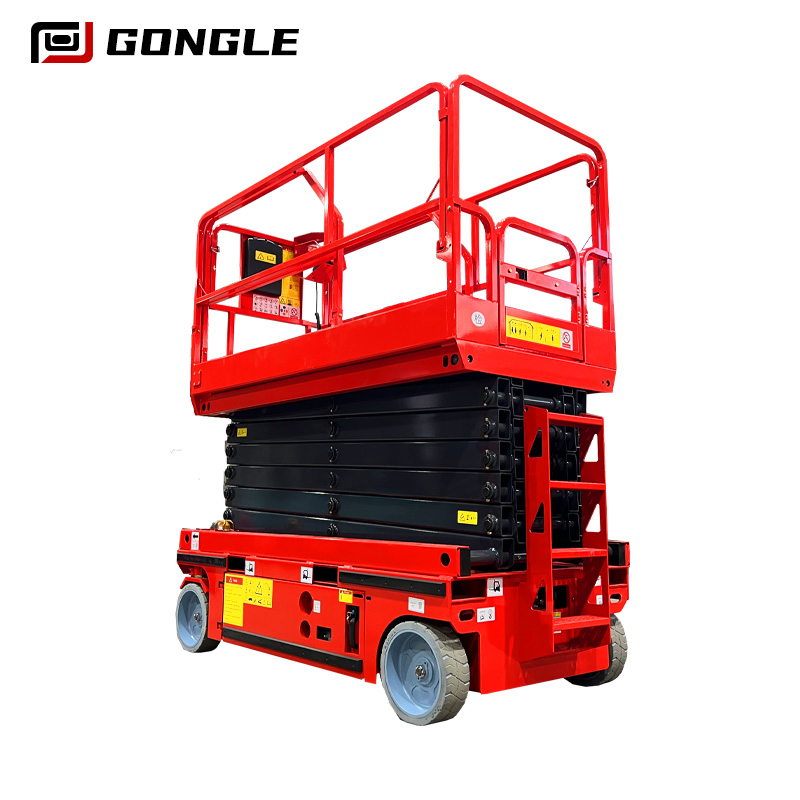

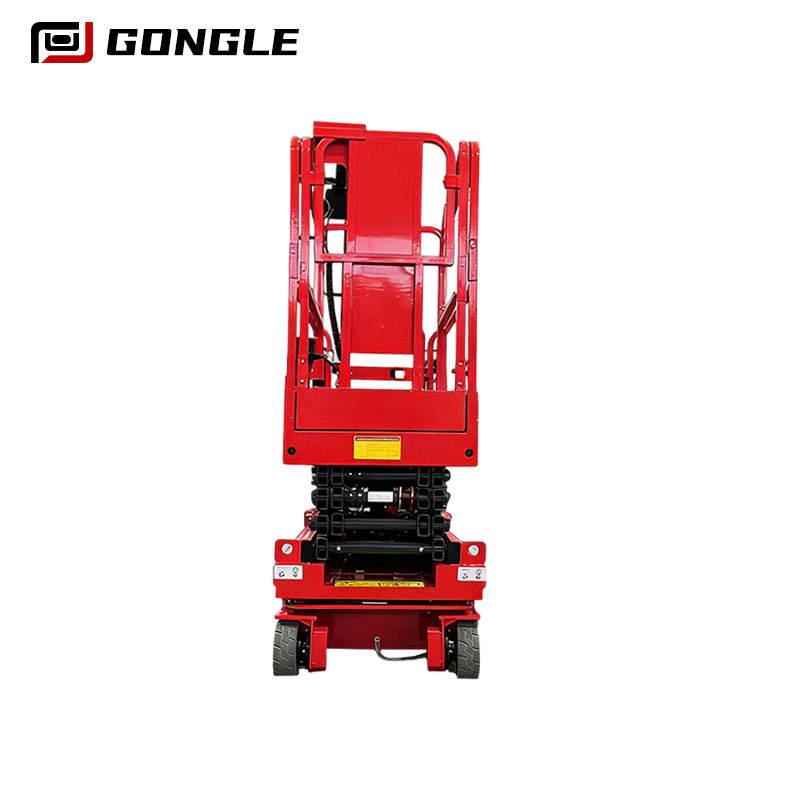

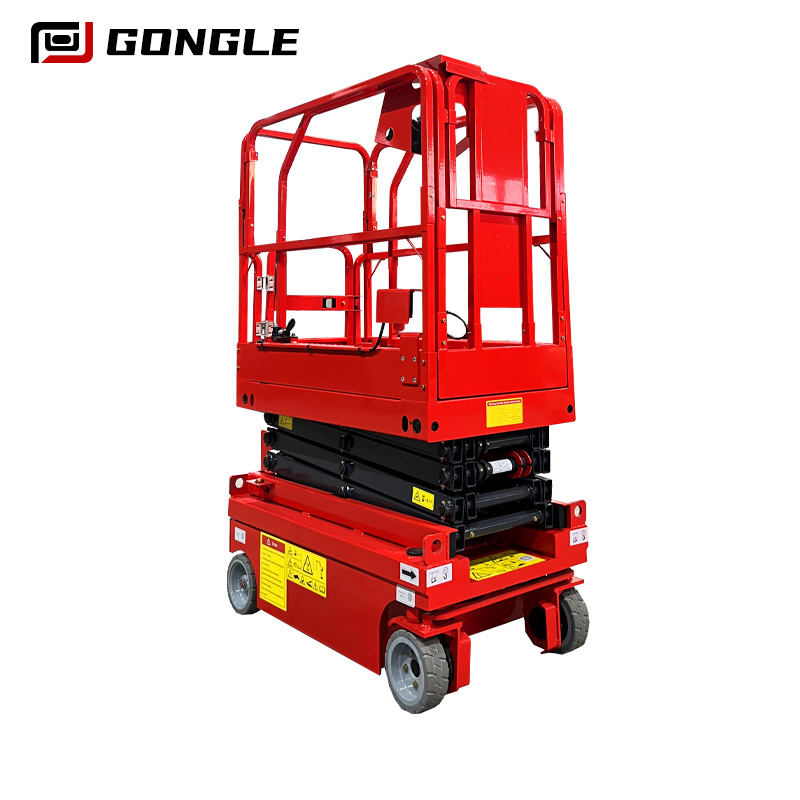

Mobile 6.5m Self-Propelled Rough Terrain Hydraulic Scaffolding Platform off-Road Table Electric Aerial Working Scissor Lift

Send Inquiry

Product Description

Basic Information

Model NO.:0407

Lift Mechanism:Scissor Lift

Driven Type:Hydraulic

Application:Workshop, Shipboard, Warehouse, Building

Max. Occupants:2

Feature:Explosion-Proof, Insulating

Certification:CE, ISO 9001

Working Platform:1.29m * 0.70m

Packaging & Delivery

Package Size:1.58cm * 0.78cm * 1.70cm

Gross Weight:900.000kg

Transport Package:Wooden Case Packaging

Production Capacity:5000 Pieces/Year

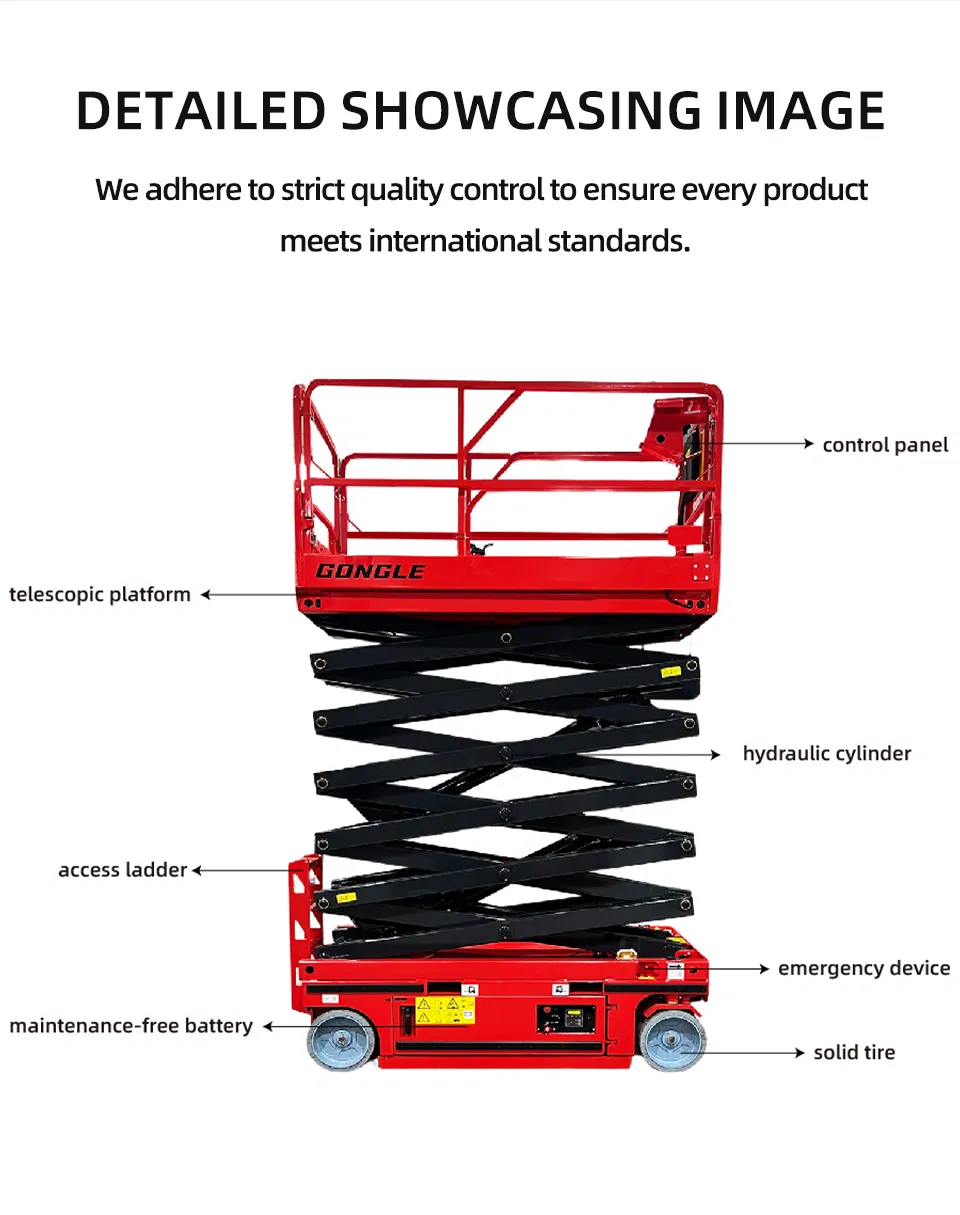

Product Presentation

Technical Specifications

Model Parameters	0406	0407	0608	0810	1012	1214	1416
Safe Working Load	230kg	230kg	230kg	320kg	320kg	320kg	230kg
Max. Working Height	6.0m	6.5m	8.0m	10.0m	12.0m	13.8m	15.8m
Overall Length	1.46m	1.51m	1.85m	2.43m	2.43m	2.43m	2.85m
Overall Width	0.76m	0.80m	0.79m	0.82m	1.21m	1.21m	1.31m
Lifting Motor	24v/1.3kw	24v/1.3kw	24v/3.3kw	24v/4.5kw	24v/4.5kw	24v/4.5kw	24v/4.5kw
Travel Speed (Stowed)	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Battery	2×12V/80Ah	2×12V/80Ah	4×6V/200Ah	4×6V/200Ah	4×6V/200Ah	4×6V/200Ah	4×6V/240Ah
Machine Weight	900kg	1050kg	1430kg	2260kg	2550kg	2980kg	3670kg

Frequently Asked Questions

What is the maximum working height of the 0407 model?

The 0407 model offers a maximum working height of 6.5 meters with a platform height of 4.5 meters.

Is this scissor lift safe for use in hazardous environments?

Yes, this lift features explosion-proof and insulating properties, making it suitable for specialized industrial applications.

How many people can work on the platform simultaneously?

The working platform is designed to safely accommodate a maximum of 2 occupants.

What type of power system drives the lift?

It utilizes a 24V hydraulic driven system powered by high-capacity batteries (typically 2x12V or 4x6V depending on the model).

What is the climbing capacity of these units?

All models in this series are designed with a maximum climbing capacity (gradeability) of 25%.

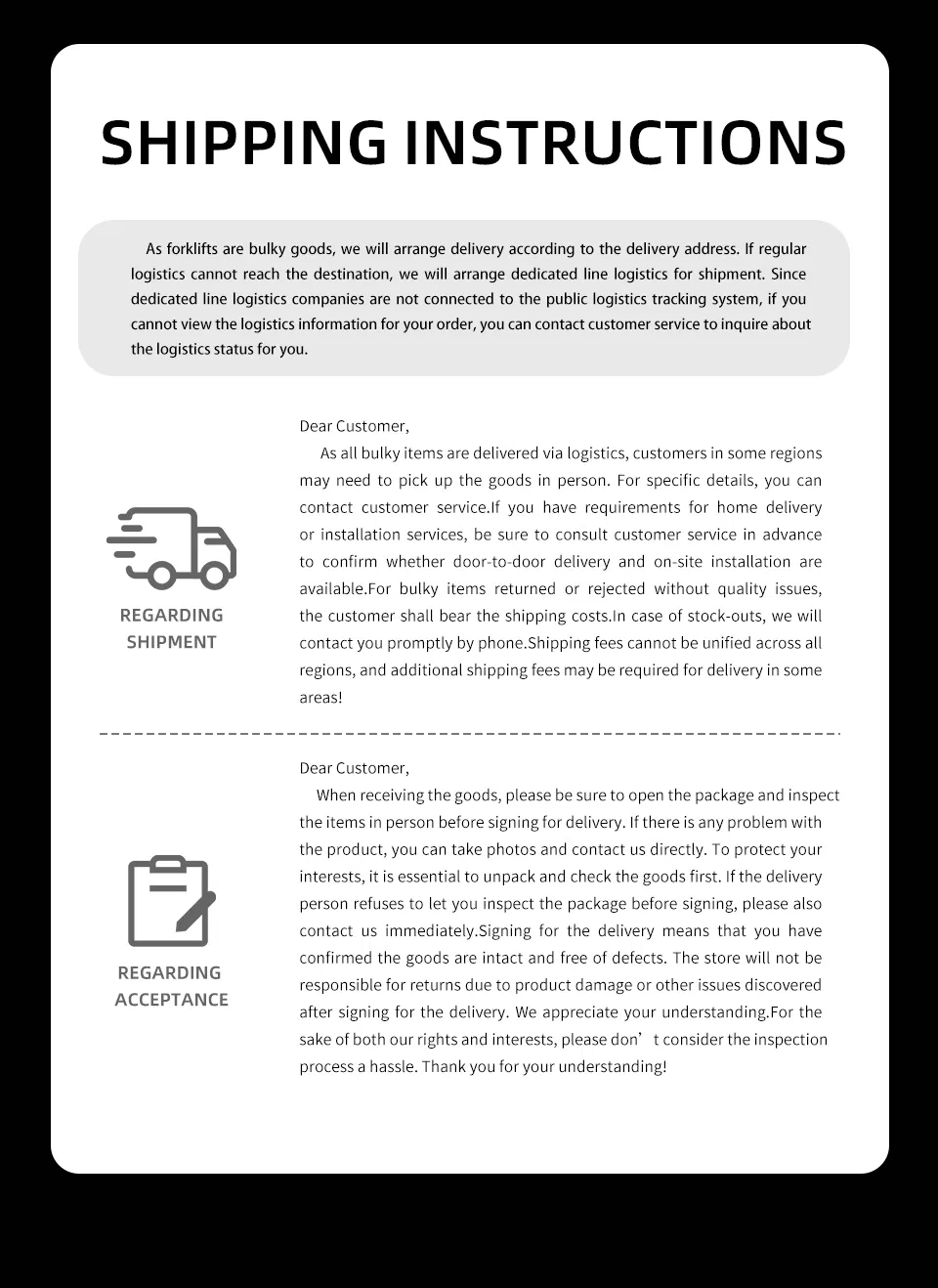

How is the product protected during international shipping?

The equipment is standardly packaged in sturdy wooden cases to ensure maximum protection during transport.
