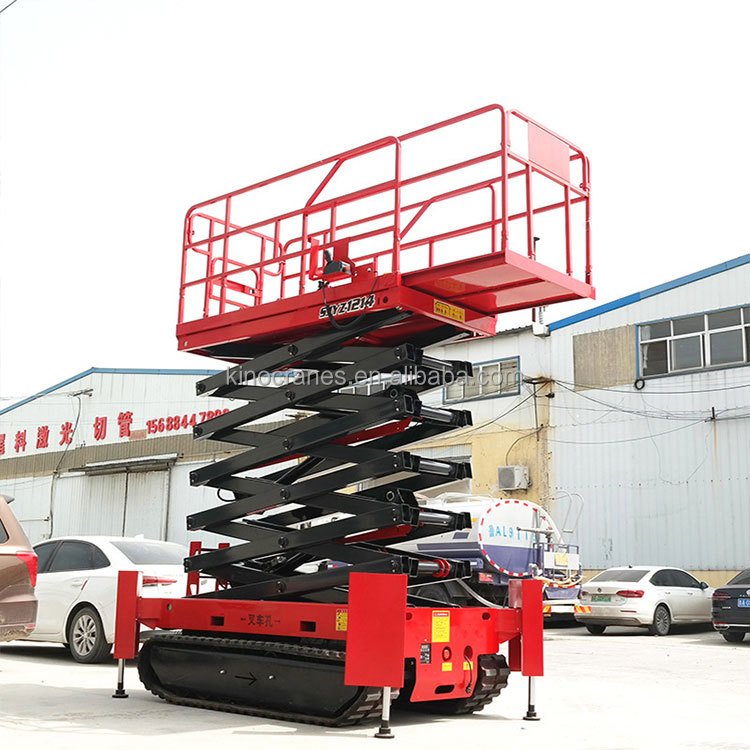

Outdoor Aerial Work Platforms Rough Terrain 300kg 6m 10m 12m 14m Self Propelled Electric Hydraulic Crawler Track Scissor Lift

Customization:	Available
After-sales Service:	Site Installation & Engineer Maintenance Service
Warranty:	1 Year

⚡ Basic Information

Application

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism

Scissor Lift

Carrying Capacity

Light Level

Moves

Moving

Driven Type

DC

Certification

CE, ISO 9001

Load Capacity

200kg - 450kg

Operation Height

8-15m

Platform Size

2.27*1.12m

MOQ

1 set

Production Capacity

1000 Sets Per Month

Origin

China

📦 Product Description

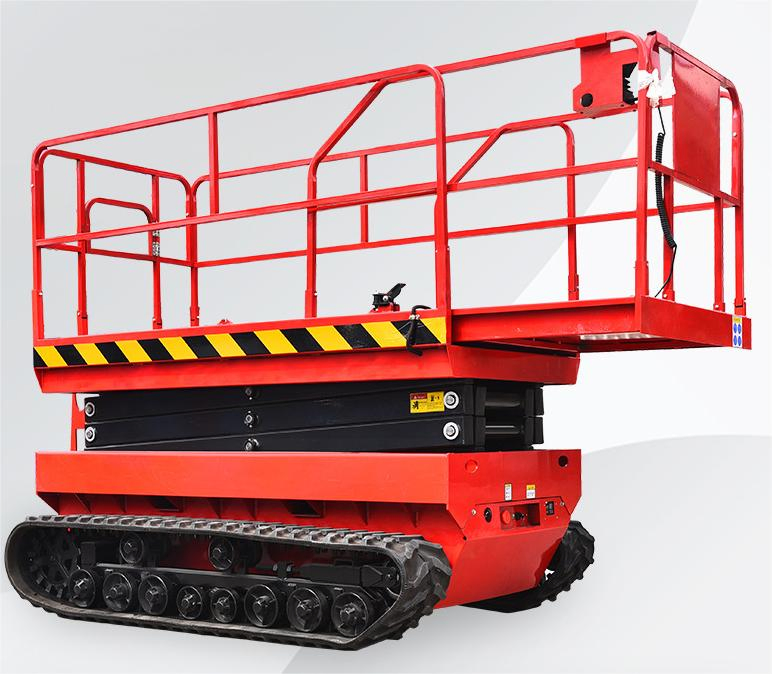

Self-propelled Track Crawler Scissor Lifts are electric drive, 24v or 48v optional. Our tracked scissor lifts are construction oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.

The hydraulic support system above the lift chassis ensures the stability of the track chassis and provides safety during buffer force impact, which may be several times the weight during the lifting process.

💎 Main Features

✔ Rough-terrain capability
✔ 6-14m working height
✔ 320kg load capacity
✔ 24V DC or 48V power source
✔ Zero inside turning radius
✔ Derivable at full height
✔ Emergency stop controls
✔ Proportional drive controls

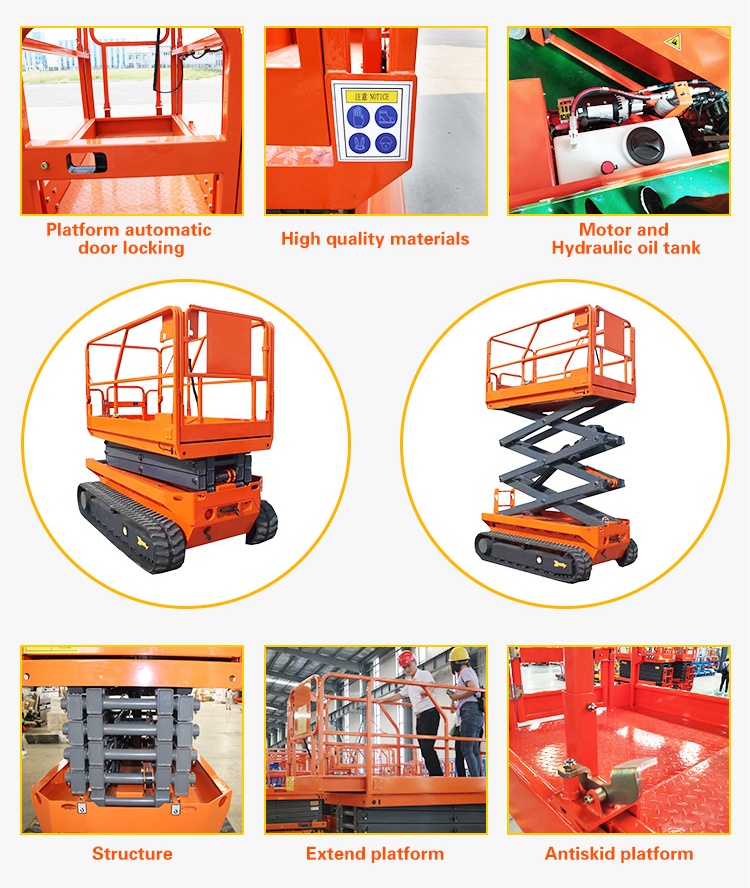

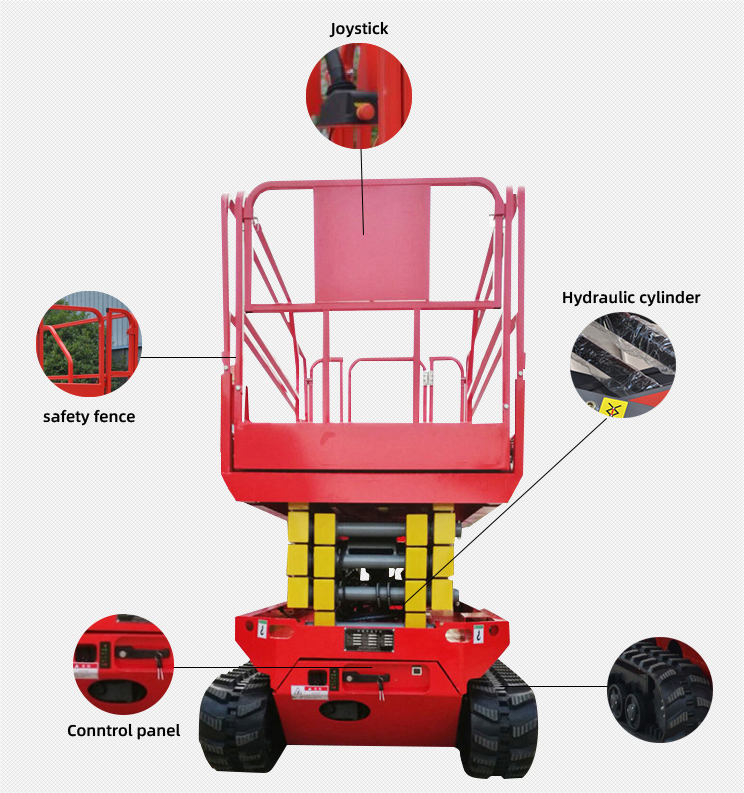

🔍 Product Details

📊 Product Parameters

Model	Working Height	Platform Height	Platform Dimensions	Extended Size	Working Loads	Total Weight
KCSL-04	6m	4m	1.29*0.7m	0.6m	230kg	1200kg
KCSL-06	8m	6m	1.669*0.745m	0.9m	230kg	1620kg
KCSL-08	10m	8m	2.271*1.11m	0.9m	320kg	3150kg
KCSL-10	12m	10m	2.271*1.11m	0.9m	320kg	3200kg
KCSL-12	14m	12m	2.271*1.11m	0.9m	320kg	3700kg
KCSL-G12	14m	12m	2.271*1.11m	0.9m	320kg	3870kg

Note: Support customization (Optional Rubber Track/Steel Track, Hydraulic/Electric drive)

🏢 Company Profile

❓ Frequently Asked Questions

1. What types of lifting equipment can I purchase?

We provide a wide range of equipment including Scissor Lifts, self-propelled lifting platforms, lifting tables, and various aerial work equipment with one-stop procurement service.

2. Why choose your crawler scissor lifts over other suppliers?

With 15 years of experience in design and development, we are devoted to creating first-class machinery with perfect engineering for safe and efficient aerial work.

3. What information is required for a right solution and price?

Please inform us of your required platform height, load capacity, preferred drive type (hydraulic or electric), order quantity, and destination port.

4. Are these lifts suitable for rough terrain?

Yes, our track crawler scissor lifts are specifically designed for demanding outdoor worksites with strong rough-terrain capability and stability.

5. Can the equipment be customized?

Absolutely. We support customization for track types (Rubber or Steel) and drive systems (Hydraulic or Electric) to meet your specific operational needs.

6. What is the power source for these lifts?

Our lifts typically use a 24V or 48V DC power source, designed for long working cycles and efficient energy consumption.
