Platform Scissor Type Vehicle Hydraulic Lift System

Customization:	Available
After-sales Service:	12 Months
Warranty:	1 Year

Basic Info.

Model NO.

S-VRC

Type

Hydraulic Cylinders

Lifting Capacity

2,000-10,000 Kg, 10ton Max

Driving Type

Hydraulic

Certification

CE, ISO 9001

Lifting Height

18m Max

Platform Material

Riffled plate

Running Mode

Stationary

Product Description

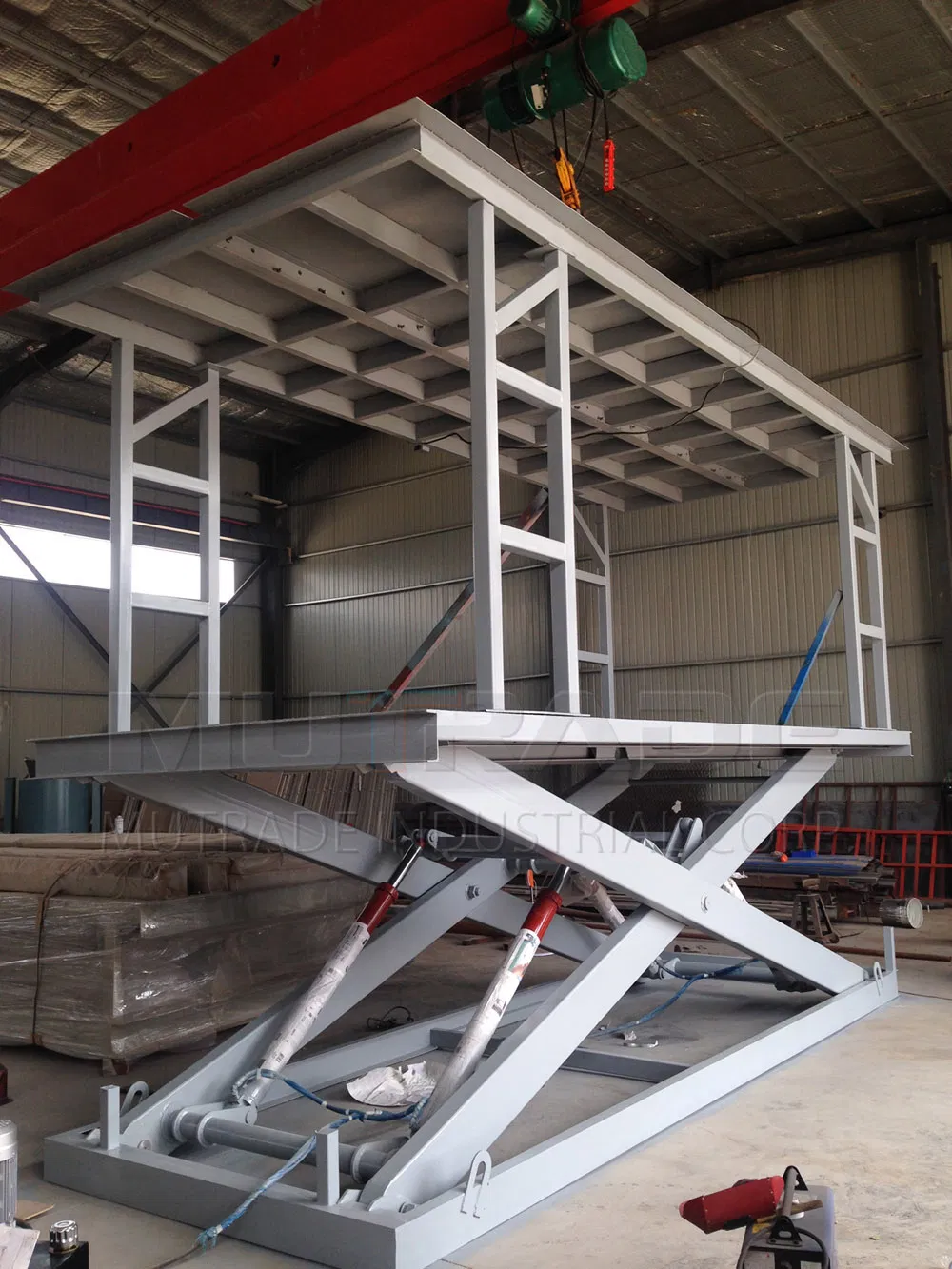

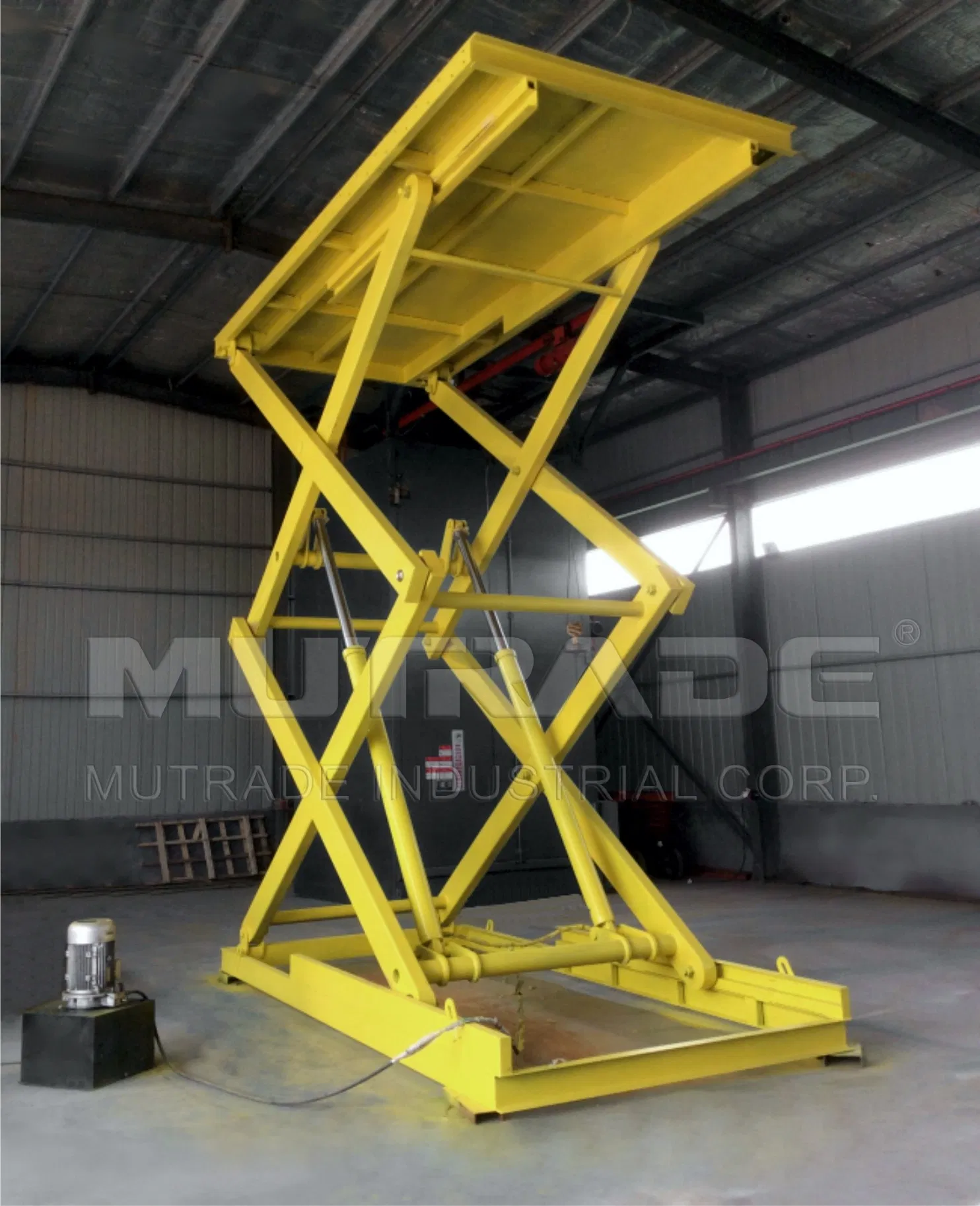

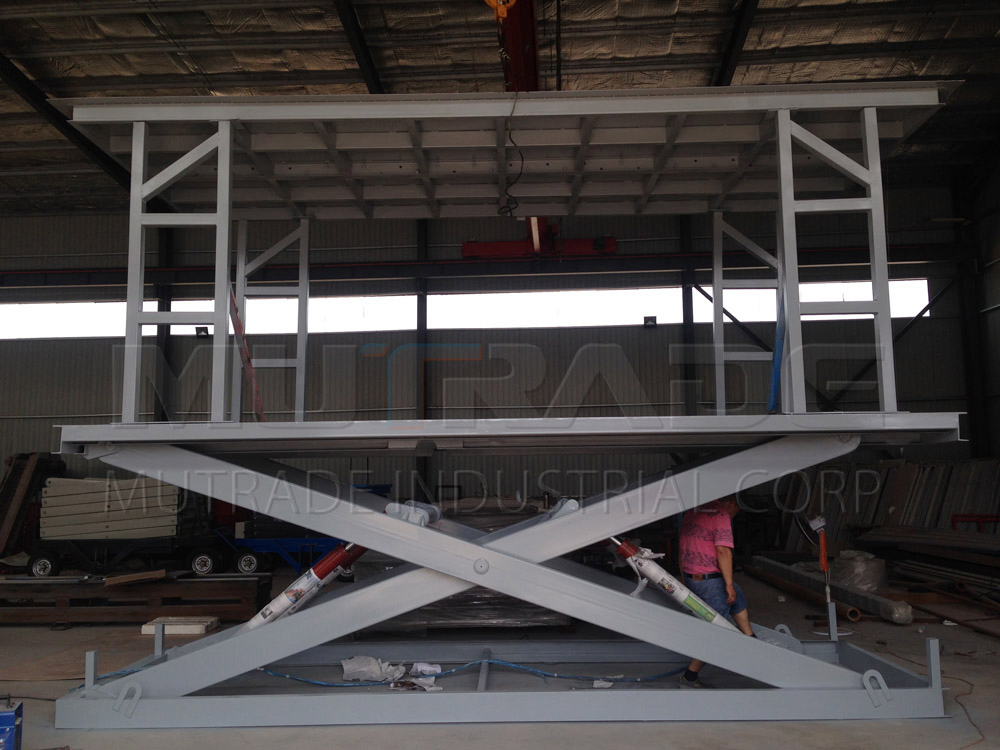

S-VRC scissor lift is a transportation conveyor moving car or goods from one floor to another. It is a highly customized product, which could be customized according to customers' different requirements from lifting height, lifting capacity to platform size.

Simple car or goods lift
Highly customized specification
Hydraulic cylinder direct drive
Double cylinder design
Small space occupation
Pre-assembled structure makes easier installation
Hydraulic overloading protection
Top quality diamond steel plate

Technical Specifications

Parameter	Specification
Model	S-VRC
Lifting capacity	10ton max
Lifting height	18m max
Platform length	Customized
Platform width	Customized
Drive mode	Hydraulic
Lifting speed	4m/min
Power pack	5.5 kw hydraulic power pump
Finishing	Paint spraying / Powder Coating

Safety Features

Component	Safety Function
Limited switch	Stop the upper car collide the ceiling
Emergency stop button	Immediate operation halt
Relief valve	Prevent overloading
Guide rail	Stabilized operation via four corner rails
Photocell sensor	Avoid car over length or accidental entrance
24V DC	Safety operation of control buttons

Packing & Delivery

Professional steel frame packaging is provided for easy and stable container load. The main structure of S-VRC is pre-assembled in the plant, ensuring all parts are contained within a secure package.

Certifications & Quality

The equipment is developed and manufactured with advanced technology and consistent high quality. Various certificates are available for different international markets.

Frequently Asked Questions

Can this product be used indoor or outdoor?

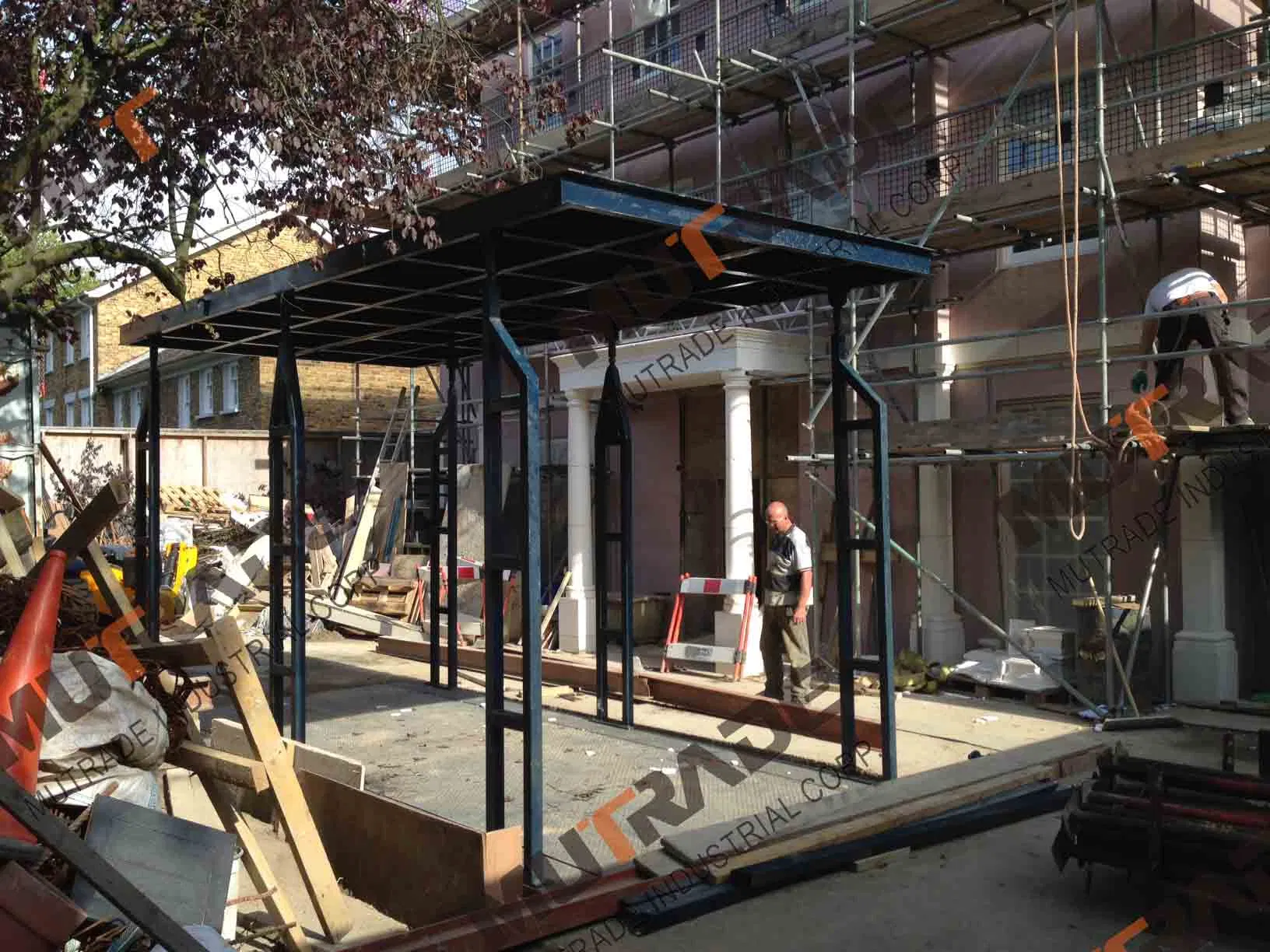

S-VRC can be installed both indoor and outdoor as long as the site dimensions are sufficient.

What are the pit dimensions needed for S-VRC?

The pit dimensions depend on the platform size and lifting height. Professional drawings are provided to guide excavation.

What is the surface finishing for this product?

Standard treatment is paint spray; optional aluminum steel sheets can be added for enhanced waterproofing and aesthetics.

What are the power requirements?

A 3-phase power supply is standard for the 4Kw motor. Single-phase may be used if the usage frequency is very low.

Can it operate during an electricity failure?

Without electricity, the lift cannot function. A backup generator is recommended if power failures are common.

What is the standard warranty?

The warranty covers the main structure for five years and moving parts for one year.
