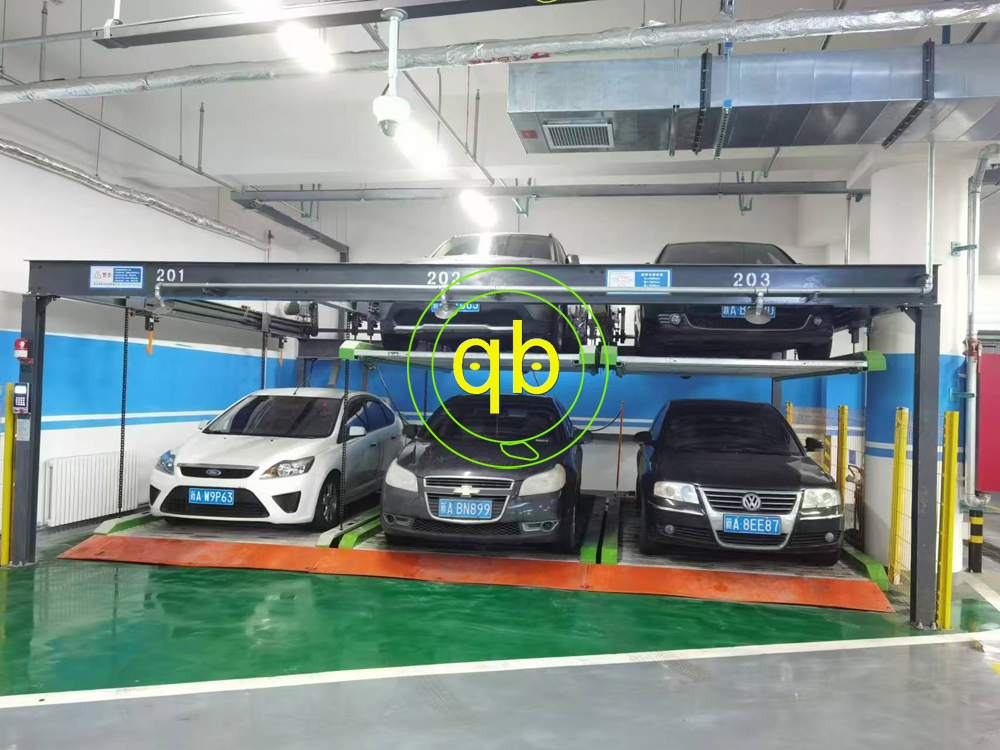

Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
1 / 5
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform
Puzzle Parking Lift System for Mechanical Vehicle Garage Platform

Puzzle Parking Lift System for Mechanical Vehicle Garage Platform

Customization: Available
Level: 2
Parking Post: Customized
Send Inquiry

Product Description

Basic Information
Model NO.PSH-2
ColorCustomized
Installation TypeMulti-Level
MaterialSteel
Operation ModeAutomatic
Power SourceElectric
Lifting Capacity2000kg
Lifting Speed5.25m/Min
ControlPLC
Warranty12 Months
CertificationCE, ISO
HS Code84289020
Puzzle Parking System

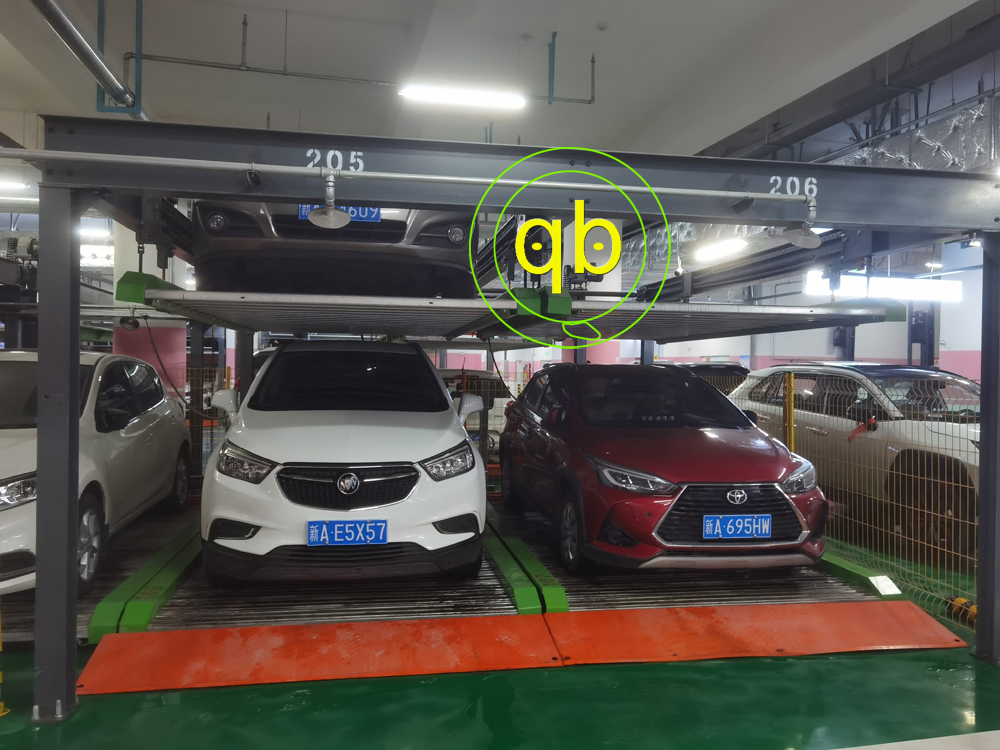

Operating Principle: The equipment adopts a speed reducer driven by chains or wires. The top board only lifts and falls, while the bottom board moves horizontally. By reserving a parking space at the bottom, the loading boards can move to the left or right, allowing vehicles on the upper levels to descend to the ground level for access.
Key Features
  • PLC control for easy operation with optional button or IC card access.
  • Stable movement with safe lifting and dropping mechanisms.
  • Loading boards formed by cold rolling for enhanced durability.
  • Integrated anti-dropping device for safety and reliability.
  • Photoelectric sensors to control vehicle size and parking position.
  • Grooved beams to collect water and oil, protecting cars below.
Technical Parameters
Parameter Item Specifications
Car Size (L x W x H) 5200mm x 1900mm x 1550mm / 5000mm x 1850mm x 1550mm
Loading Capacity 2000kg
Elevator Motor Power 2.2kw (2-3 level) / 3.7kw (4-7 level)
Horizontal Motor Power 0.2kw
Rise & Drop Time 90s
Driving Mode Motor and Chain or Wire Rope
Safeguard Features Fall Protection, Photoelectric Sensor, Overload Protection
Product Gallery

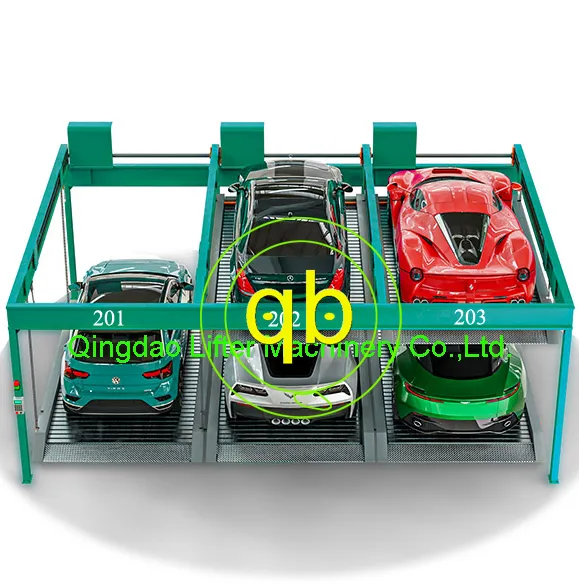

Parking System 1

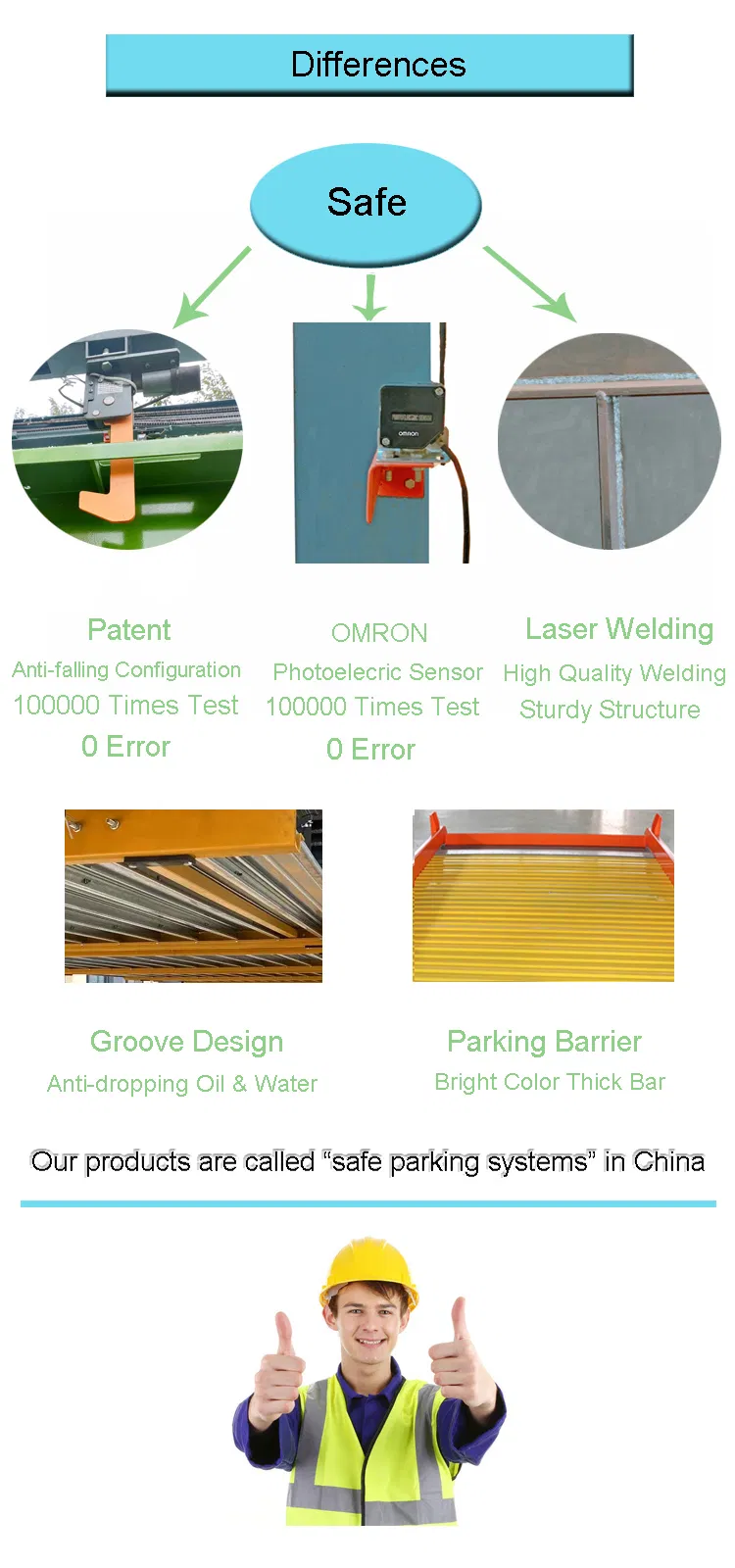

Parking System 2
Parking System 3

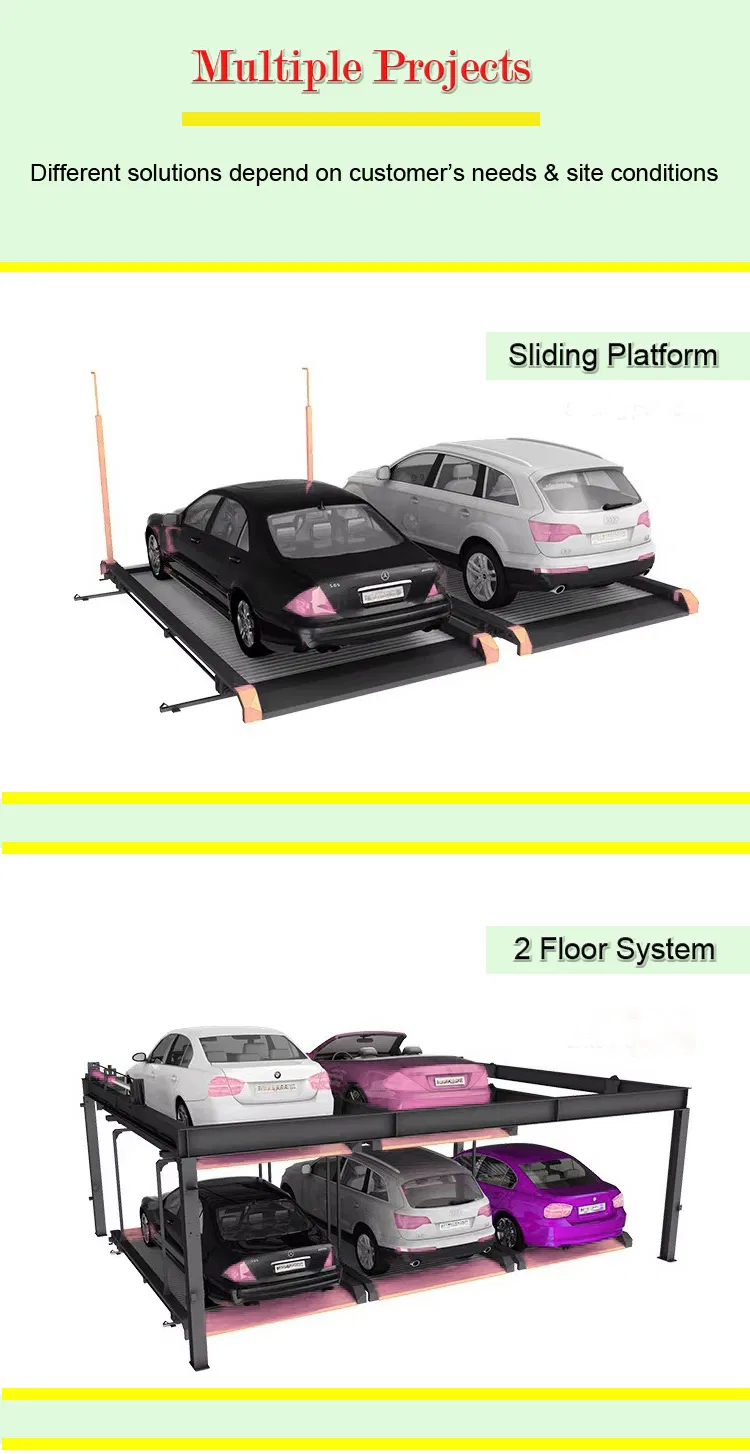

Parking System 4

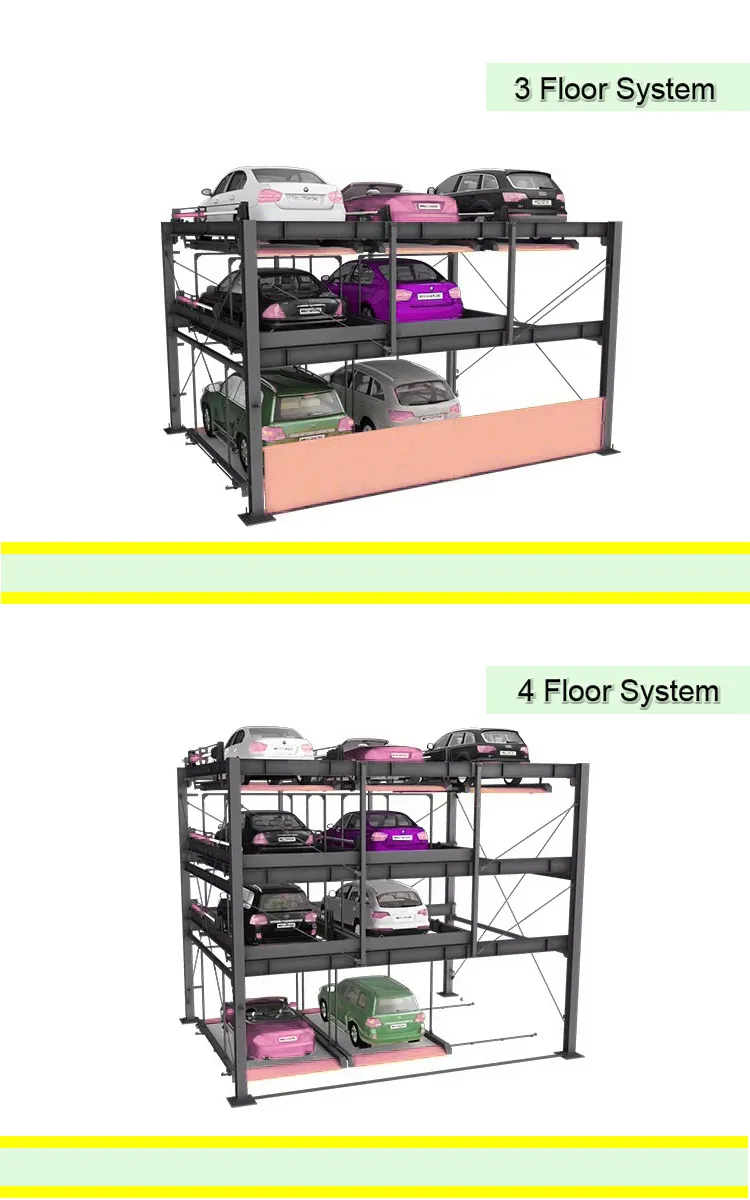

Parking System 5

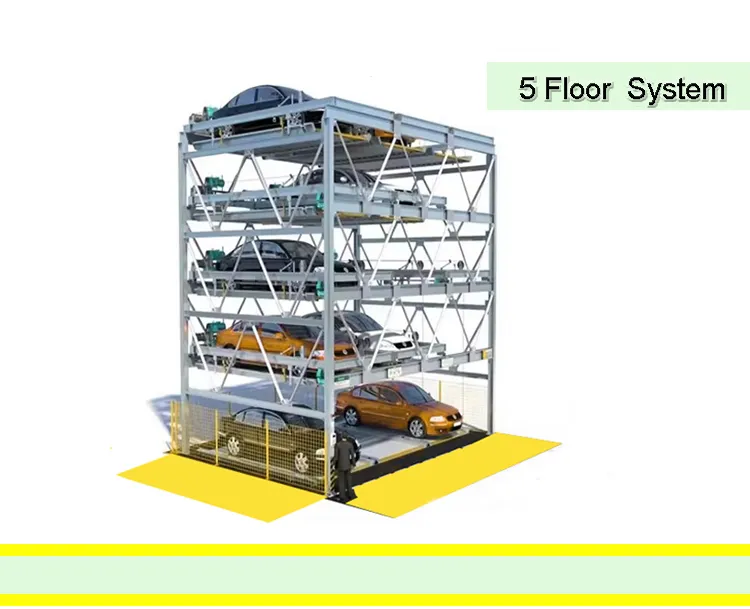

Parking System 6

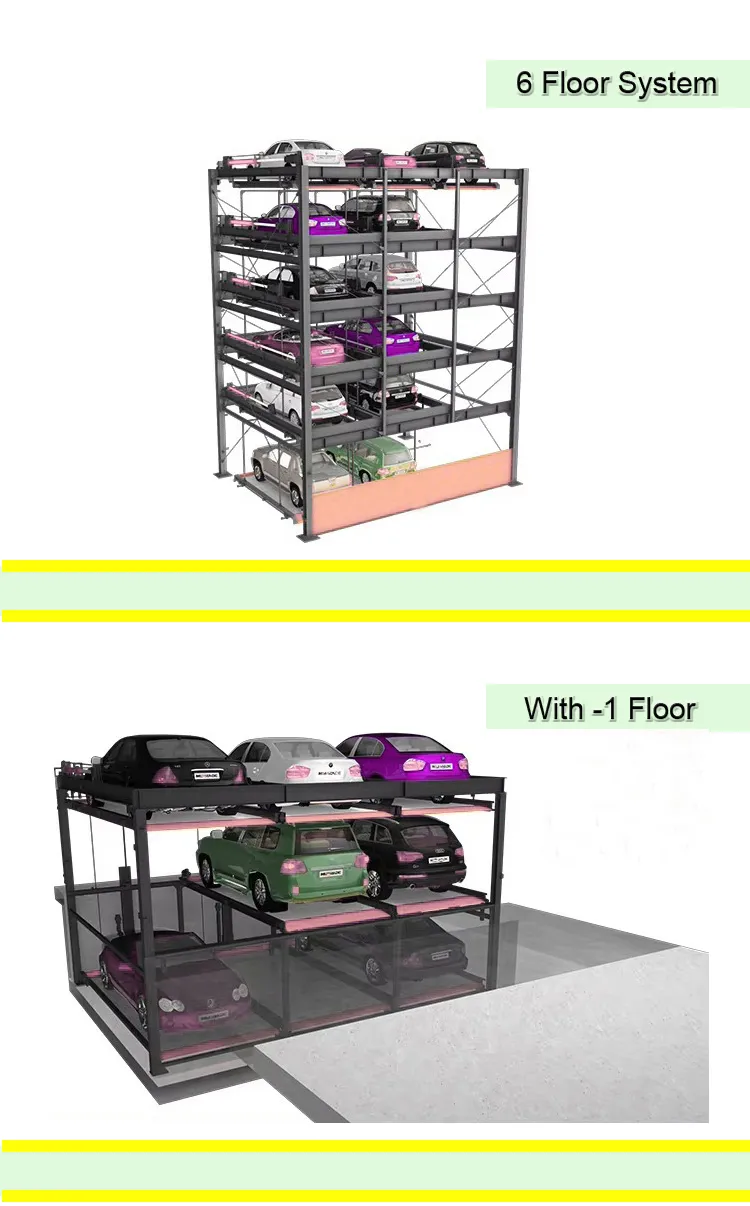

Parking System 7

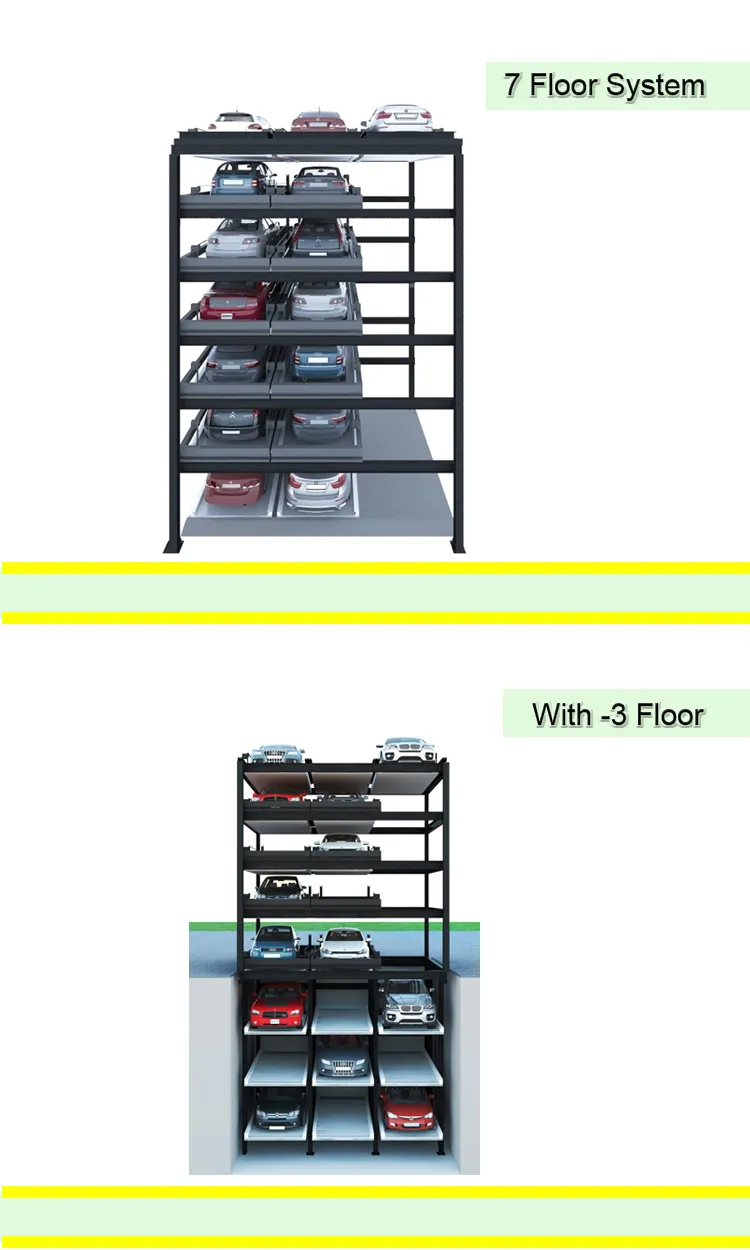

Parking System 8
Parking System 9

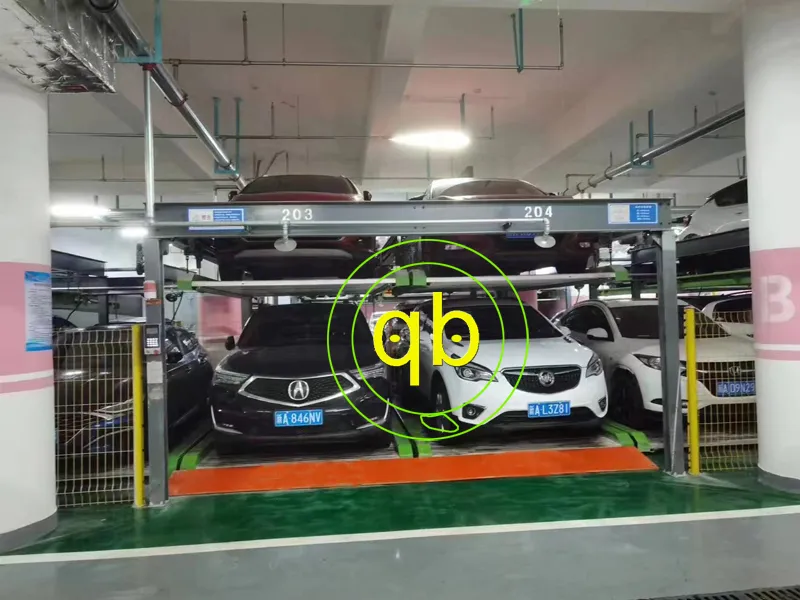

Parking System 10
Parking System 11
Parking System 12

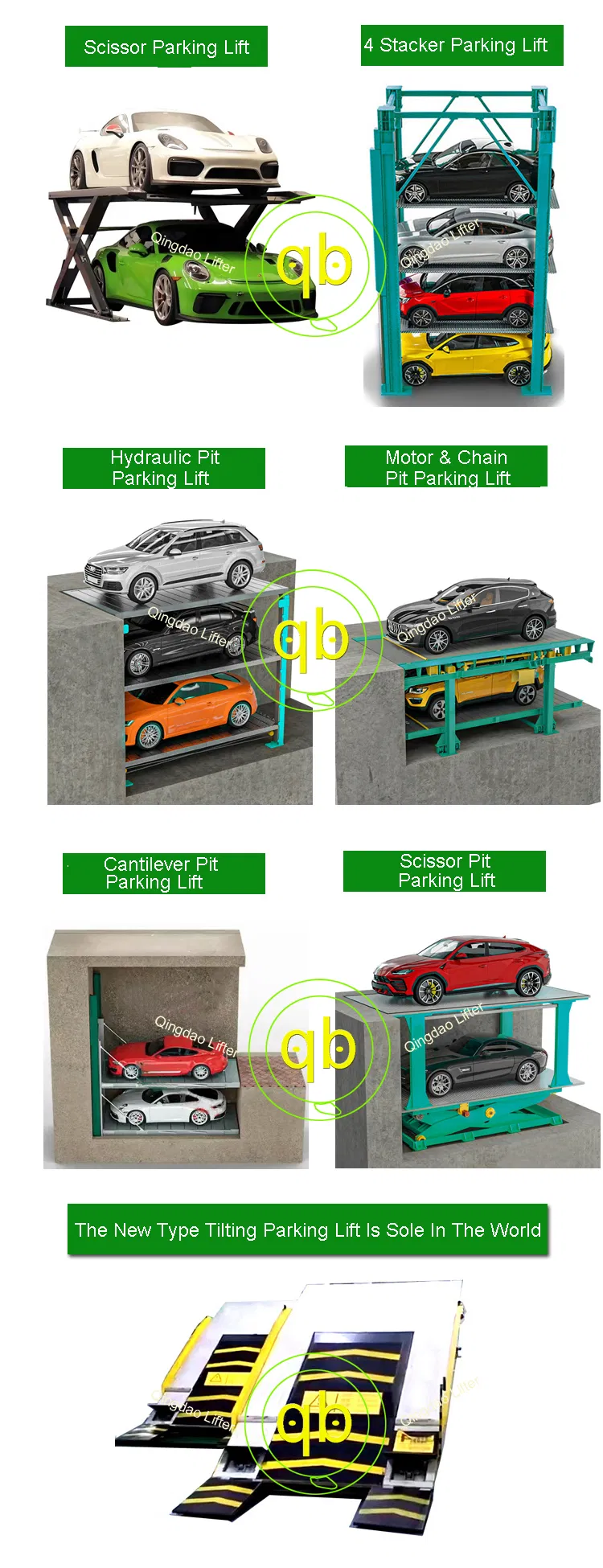

Parking System 13

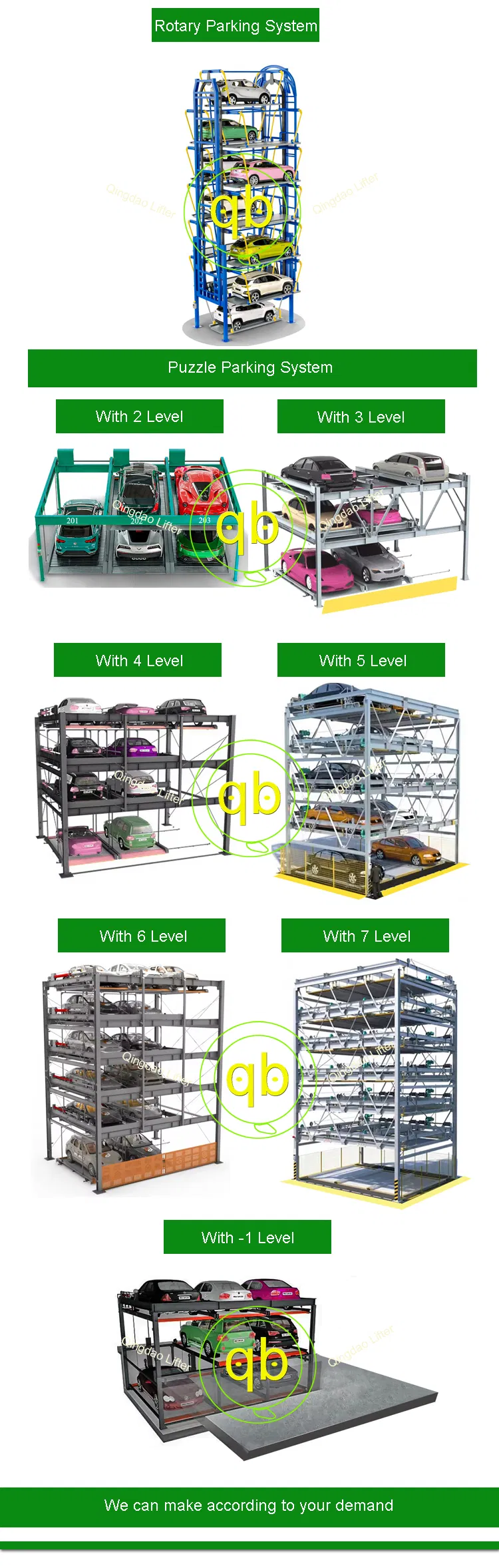

Parking System 14
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturing facility with over 30 years of design and production experience in mechanical parking systems.
Could the parking system be customized?
Yes, the system is fully customizable to suit your specific site dimensions and operational requirements.
Can this system accommodate SUVs?
Absolutely. The system can be designed with increased height and weight capacity specifically for SUV parking.
Is the system suitable for outdoor installation?
Yes. The structure features a galvanized or painted finish for waterproof protection, and optional covers can be added for snow and wind protection.
What are the electrical voltage requirements?
The voltage configuration can be customized to match your local power standards.
What safety features are included?
The system includes anti-fall devices, photoelectric sensors for vehicle detection, emergency stop buttons, and overload protection.
