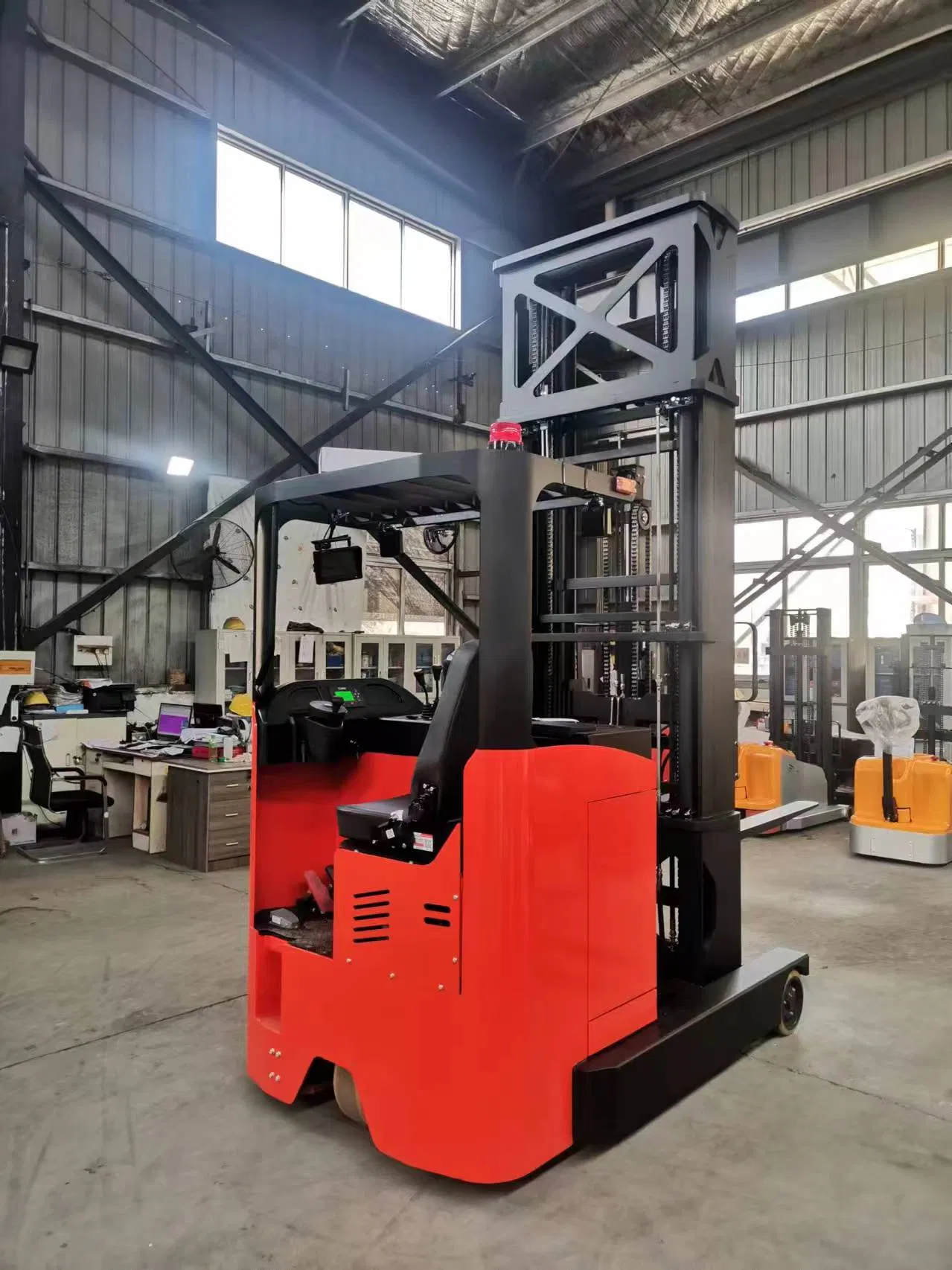

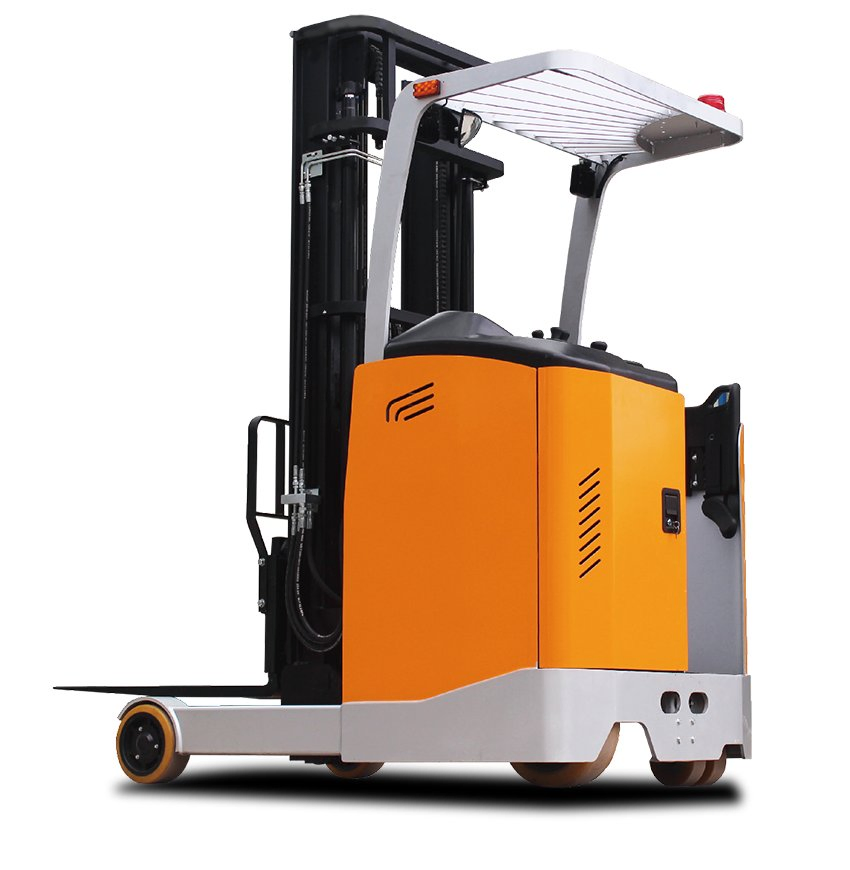

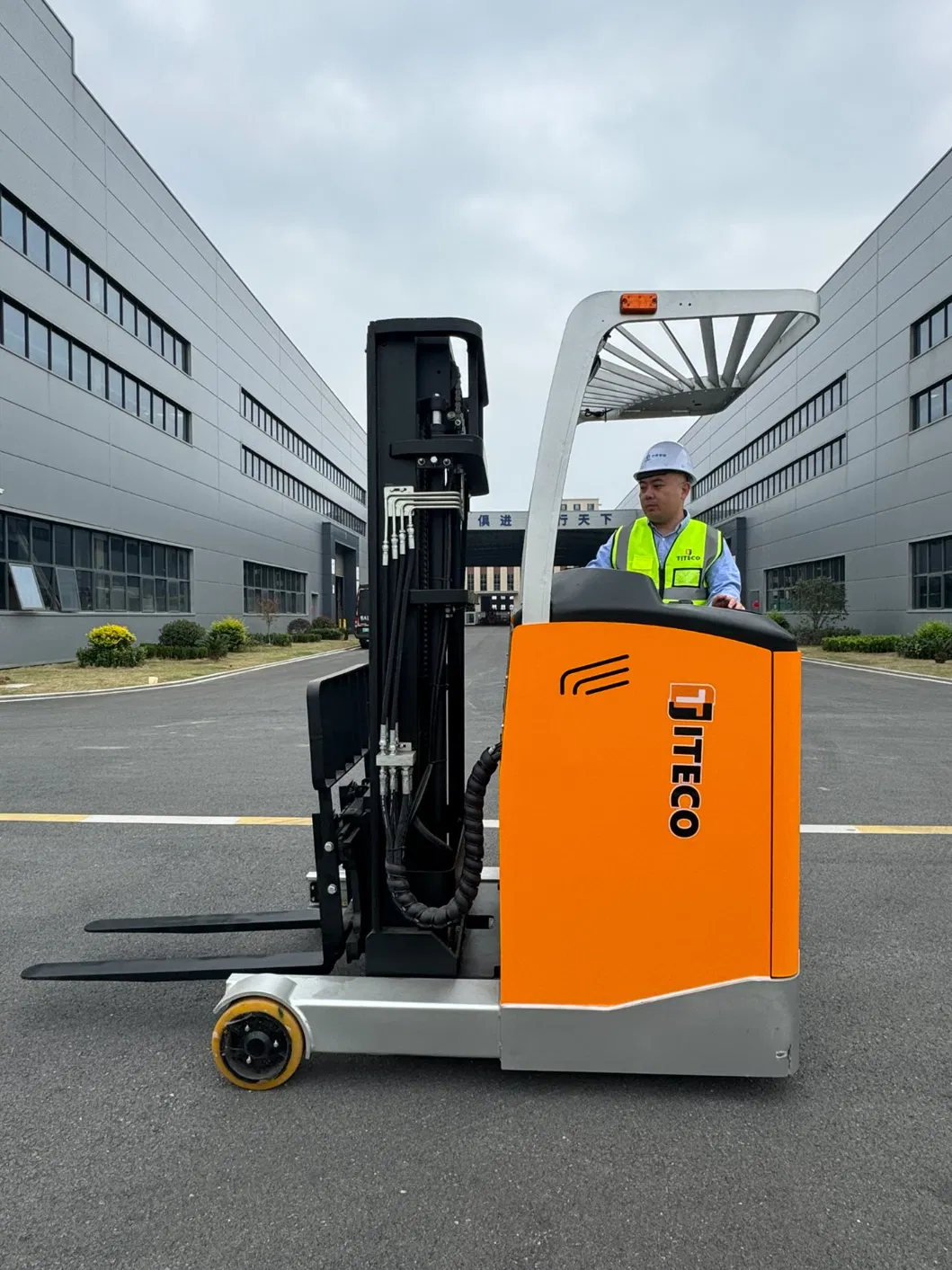

Reach truck forklifts have a compact structure, suitable for operations in narrow aisles and limited spaces. They have high lifting and loading capacity, and they are ideal tools for loading, unloading, and stacking in warehouses, supermarkets and workshops.
| Model | Unit | CQDE15-45S | CQDE20-45S | CQDE25-80S | CQDE30-45S | CQDE20H-120S |
|---|---|---|---|---|---|---|
| Load Capacity | kg | 1500 | 2000 | 2500 | 3000 | 2000 |
| Lifting Height | mm | 4500 | 4500 | 8000 | 4500 | 12000 |
| Power Type | - | Electric | Electric | Electric | Electric | Electric |
| Battery | V/Ah | 48V300Ah | 48V400Ah | 48V400Ah | 48V400Ah | 48V400Ah |
| Travel Speed | km/h | 14/14 | 14/14 | 10/8 | 12/10 | 14/14 |
| Model | Unit | CQD15-45S | CQD20-45S | CQD25-45S | CQD30-30 | CQD30-60S |
|---|---|---|---|---|---|---|
| Load Capacity | kg | 1500 | 2000 | 2500 | 3000 | 3000 |
| Lifting Height | mm | 4500 | 4500 | 4500 | 3000 | 6000 |
| Drive Motor | kw | 4.5AC | 6.5AC | 6.5AC | 8AC | 8AC |
| Min. Turning Radius | mm | 1680 | 1836 | 1996 | 2200 | 2200 |
The reach truck series offers a wide range of lifting heights, starting from 3000mm up to 12000mm (12 meters) for high-reach warehouse applications.
Yes, they are specifically designed with a compact body structure and a small turning radius, making them ideal for narrow aisles in warehouses and supermarkets.

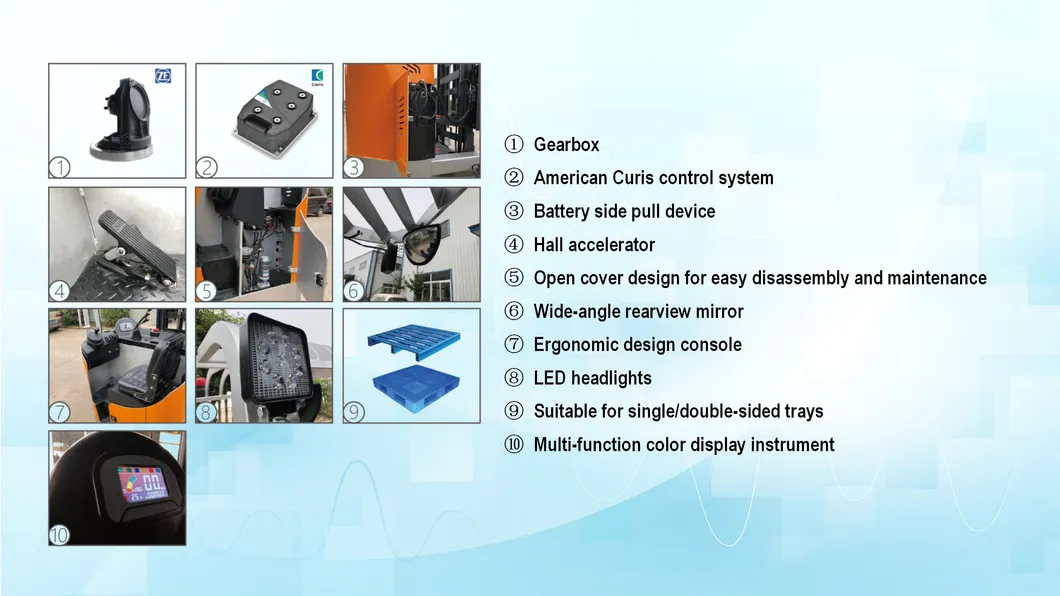

The AC system is maintenance-free as it eliminates carbon brushes. it also provides regenerative braking, better stability, and higher efficiency compared to DC systems.
These trucks feature a side-pull battery design. Combined with a standard battery roller trolley, the replacement process is fast and convenient for continuous work.
Yes, the EPS (Electronic Power Steering) reduces steering energy consumption by 20%, allowing for more precise operation and significantly reducing driver fatigue during long shifts.

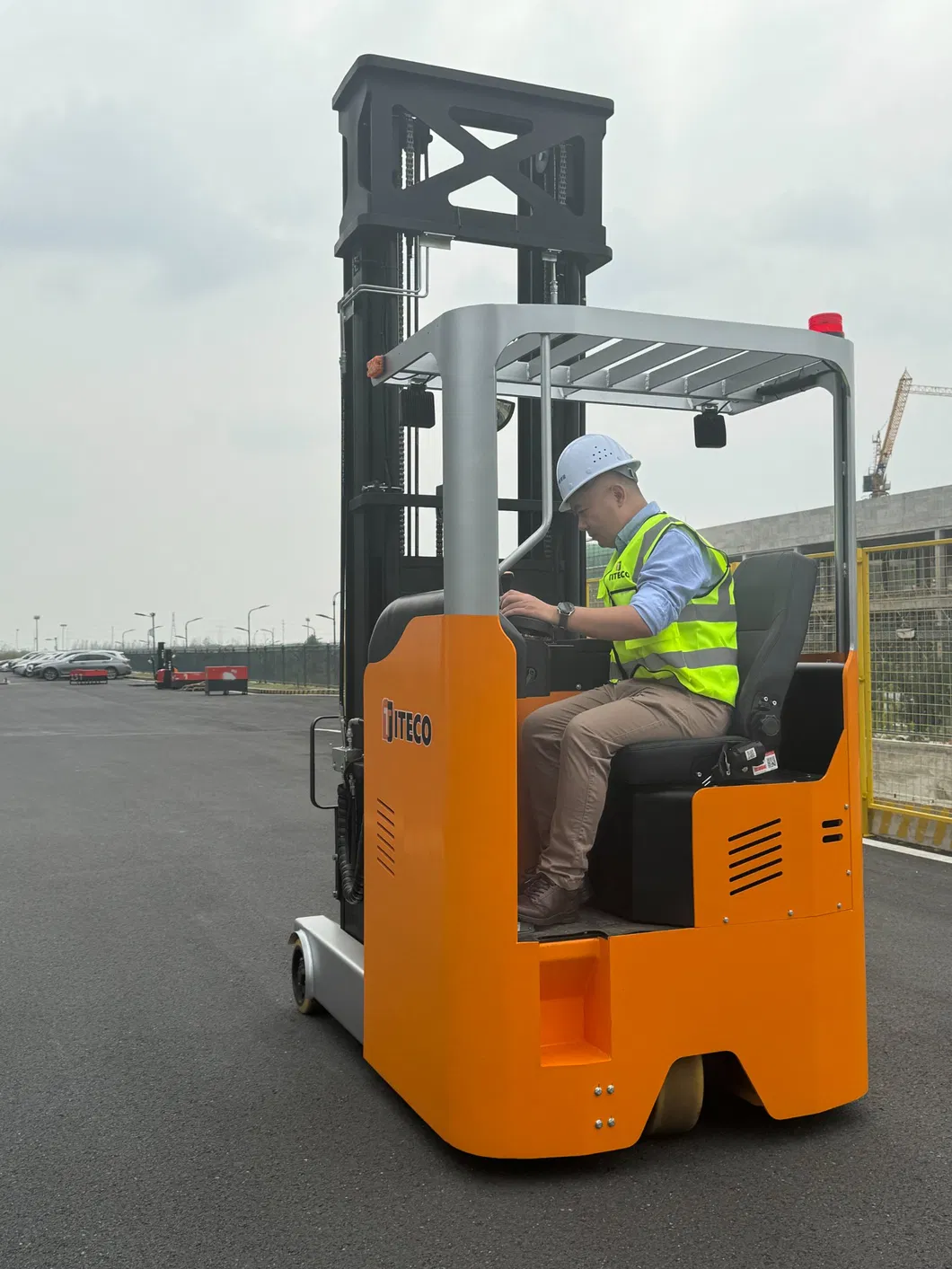

Yes, we provide both Sit Type (CQDE series) and Stand Type (CQD series) to meet different operational preferences and efficiency requirements.
