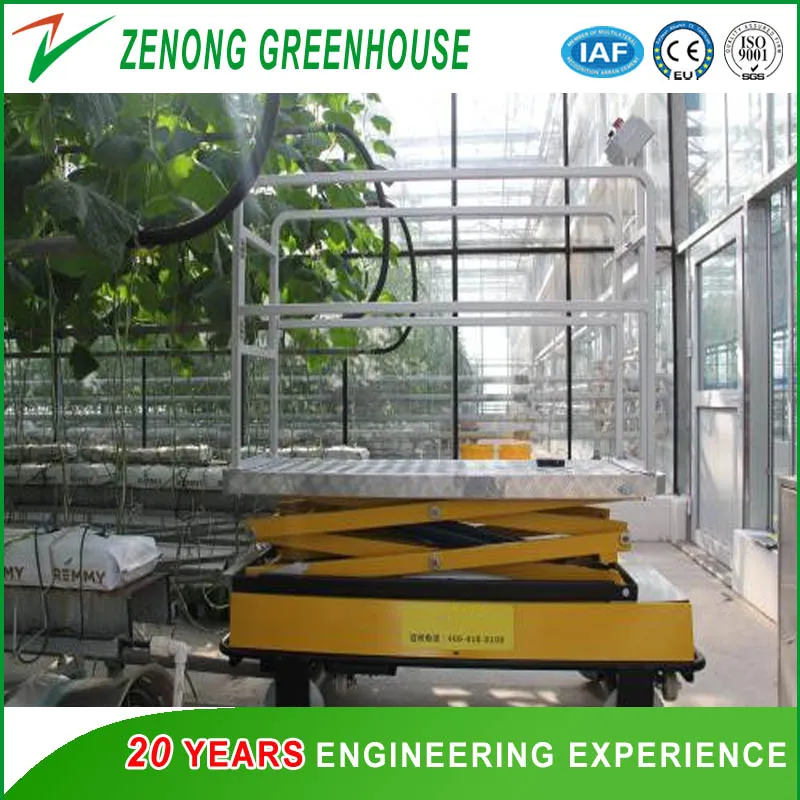

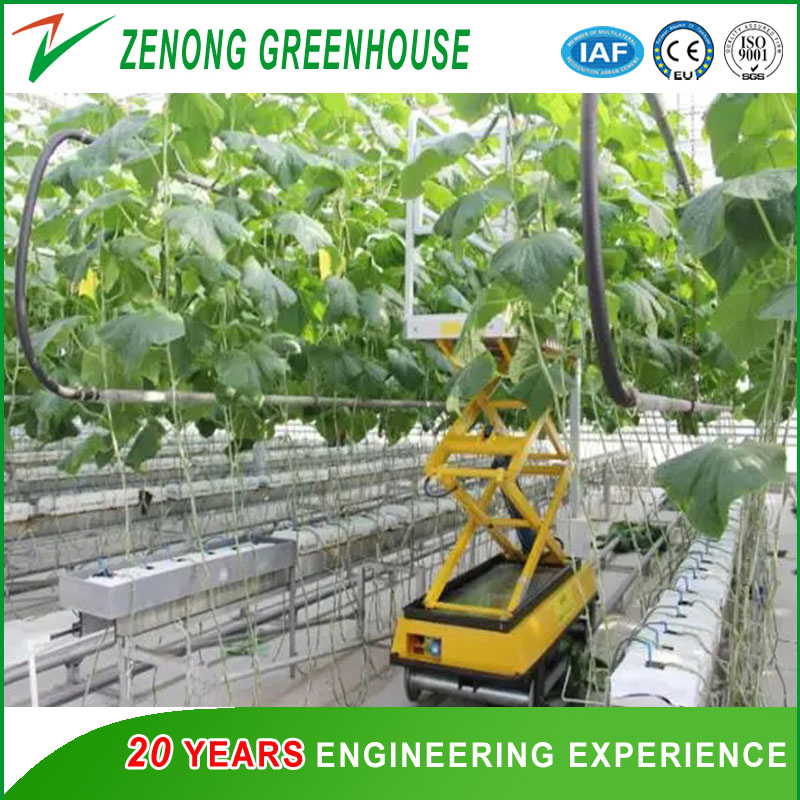

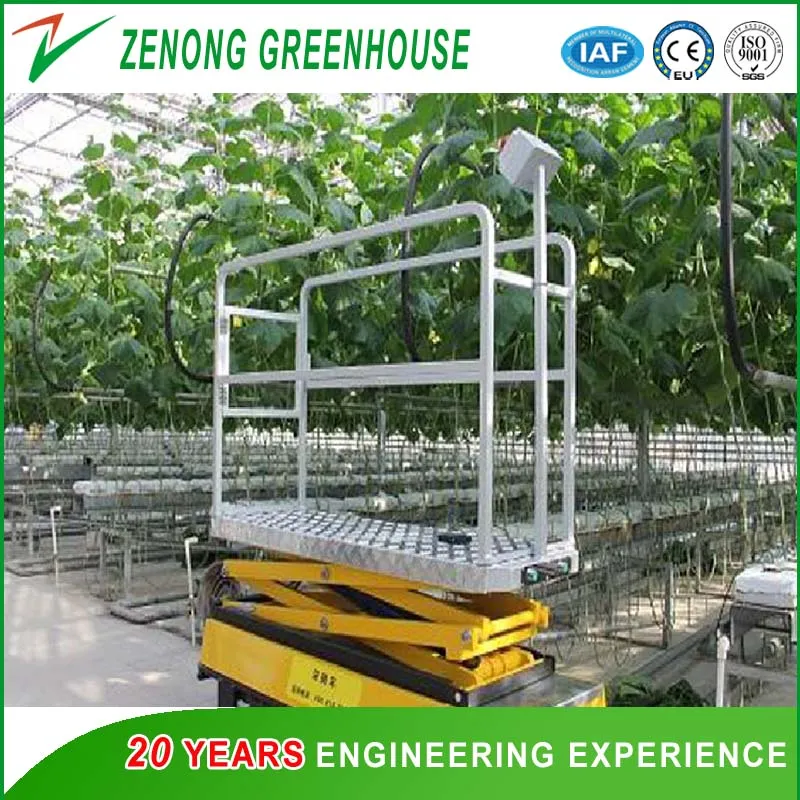

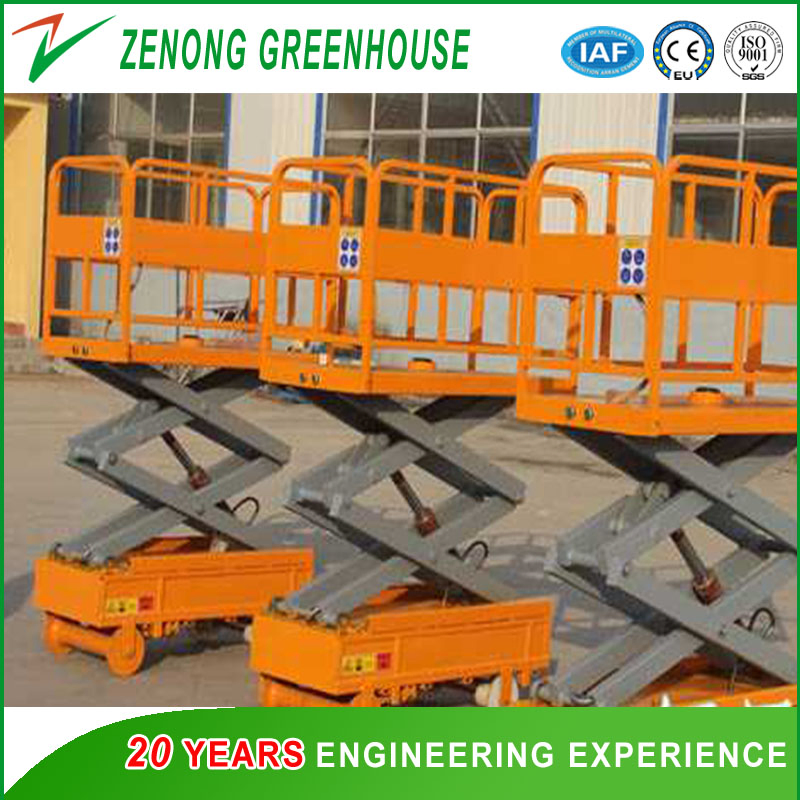

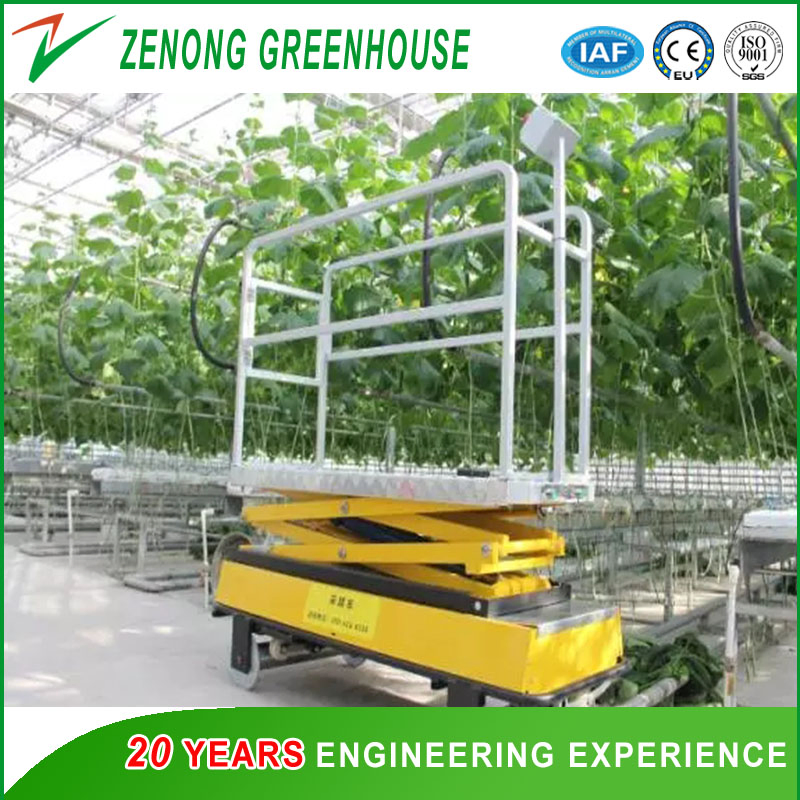

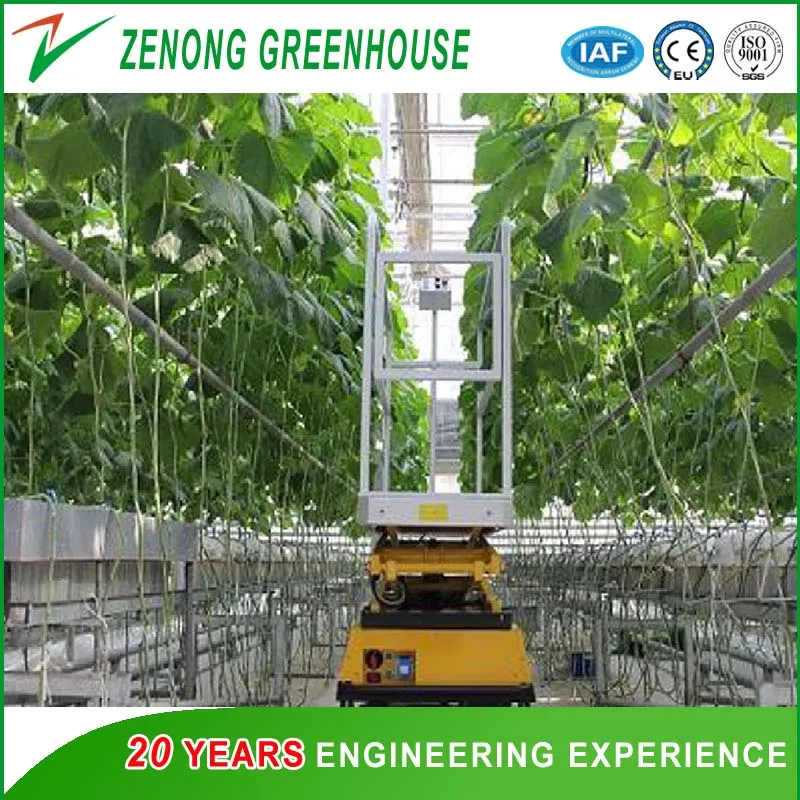

Agriculture Height Scissor Lift Elevating Work Platform for Greenhouse High Harvest

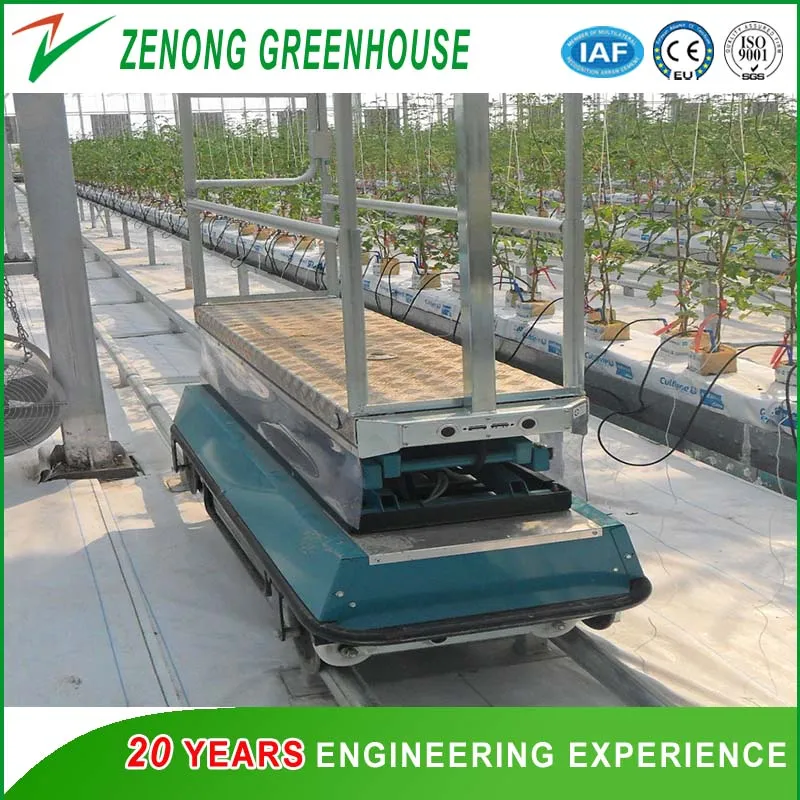

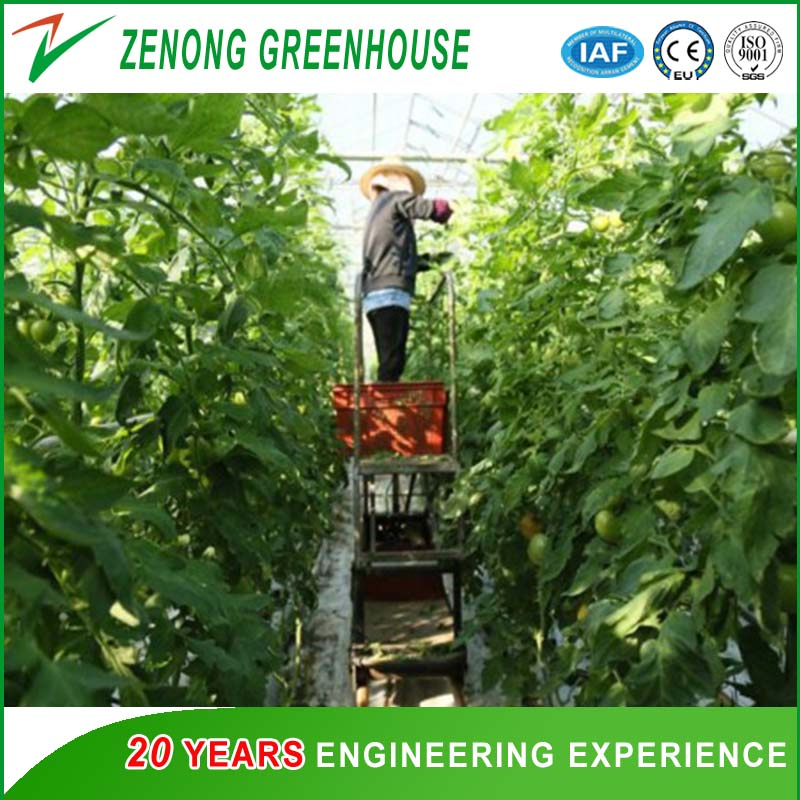

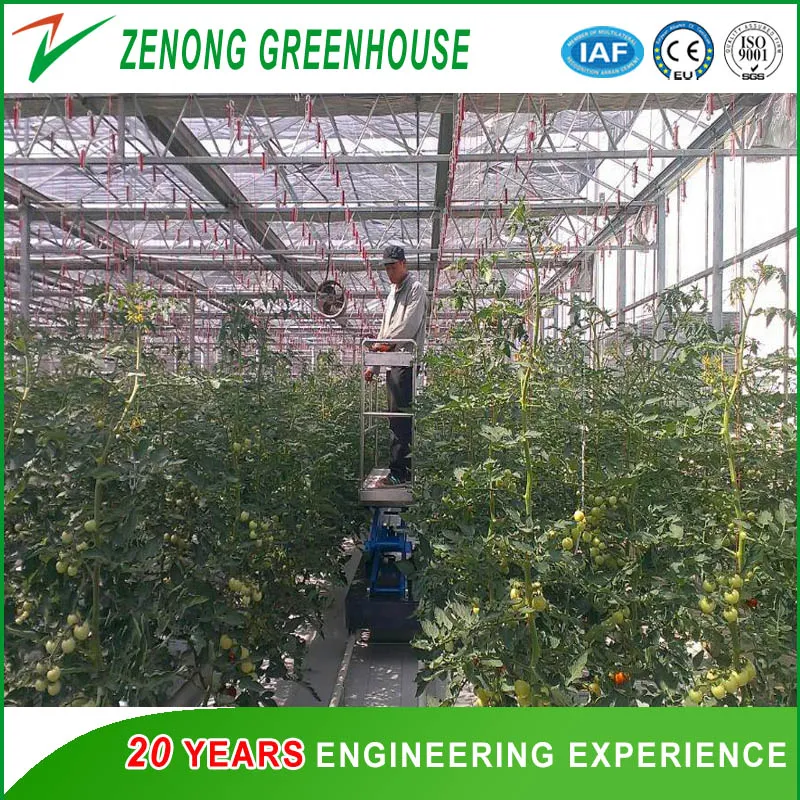

Rock cotton rail picker use the electric drive, with the advantages of energy saving and environment protection. Electric lifting picker, adopt the hydraulic to achieve working platform lifting, and rely on electric to drive operation; The working platform can be lifted by remote control, in order to suitable for fruit harvesting of tall crops in greenhouse. The rail picker is highly automated and easy to use, which improves the operation efficiency.
| Specification Item | Data Details |
|---|---|
| Safe working load | 150Kg |
| Maximum platform height | 2800mm |
| Overall length | 2146mm |
| Overall width | 770mm |
| Overall height | 1691mm |
| Lifting Top Height | 6000mm |
| Table size | 1900X450mm |
| Lifting Motor | 24v/0.8Kw |
| Walking motor | 24V/0.4kw |
| Running speed | 2Km/h |
| Lifting/Sinking speed | 3-5m/min |
| Battery | 24V/50Ah |
| Charger | 24V/8A |
| Guide rail specification | 0.6m/φ50 |
| Total weight | 420Kg |

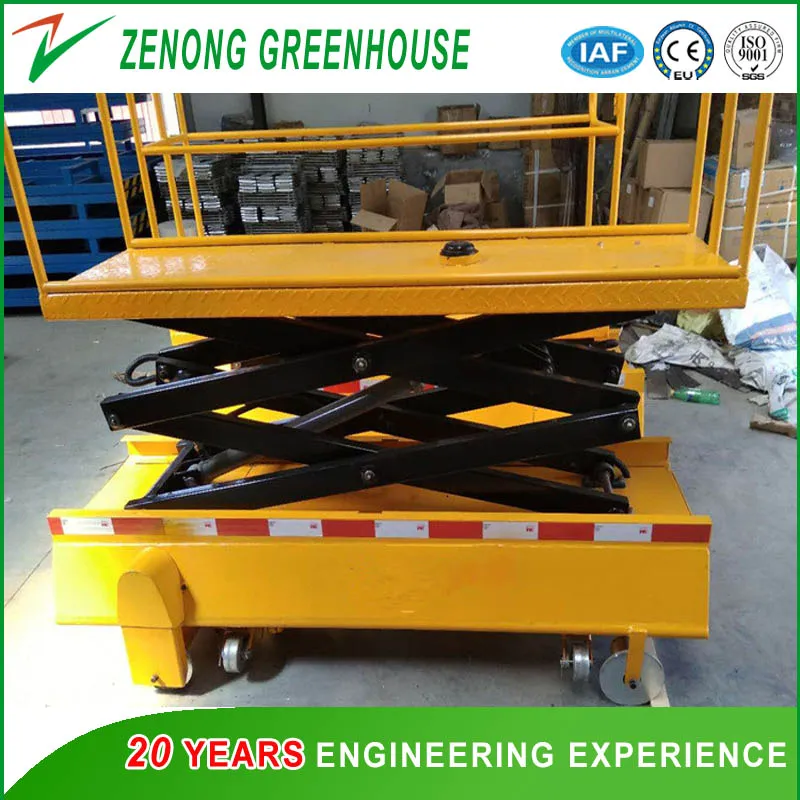

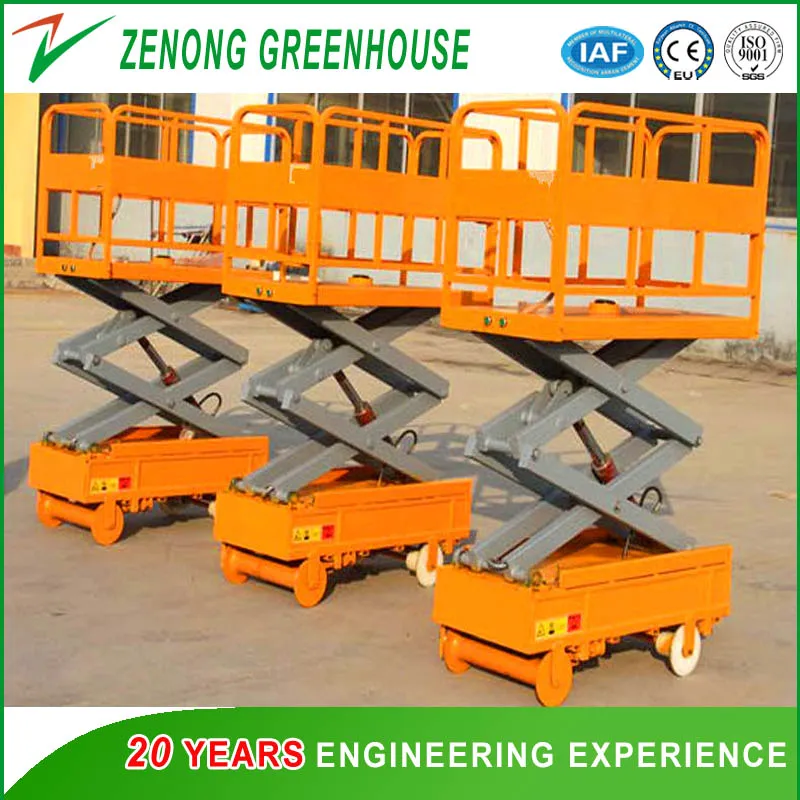

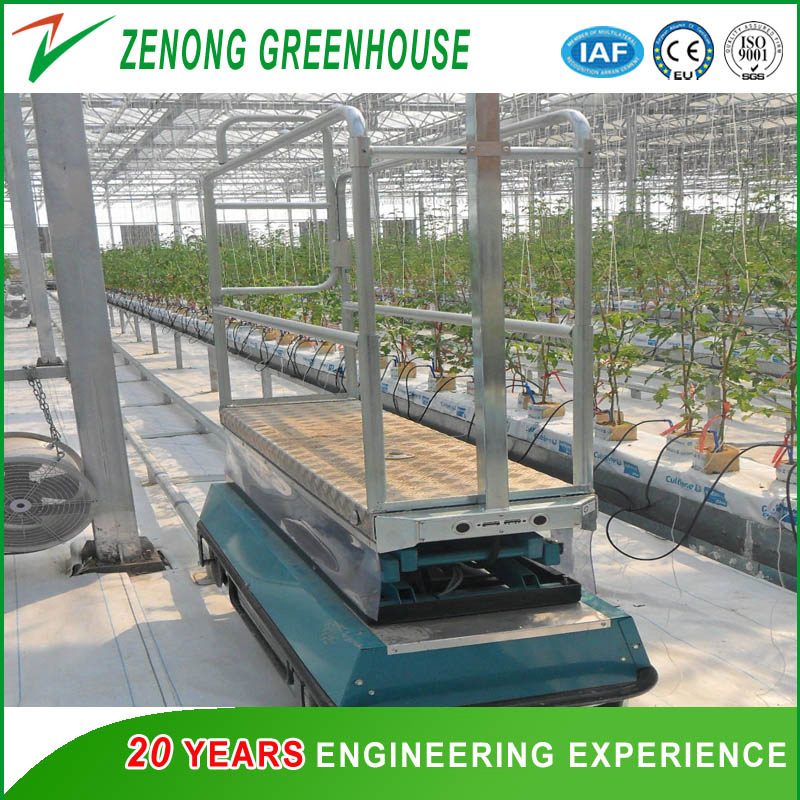

The frame is designed for welding of steel structure, and the scissor fork structure is welded with thick-walled seamless rectangular tubes, solid and reliable. The scissor fork connection using oil-free bearing with excessive coordination, lifting process without sloshing and noise. The working platform is made of non-skid aluminum plate, with compact structure, safe and stable operation.
The forward and backward running speed of this machine can be adjusted. The lifting system is driven by two single acting hydraulic cylinders and powered by a miniature hydraulic power source. This machine can be stopped at any position to facilitate operation at different heights. When the rail picker moving forward or backward, the working platform can be lifted and lowered at the same time.
