4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
1 / 5
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift
4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift

4.8m Self-Propelled Vertical Mast Aerial Working Boom Lift

Customization: Available
After-sales Service: After-Sale Support
Warranty: 1 Year
Send Inquiry

Product Description

i
Basic Information
Model NO.
AMWP4.8-6100
Application
Warehouse Crane
Lift Mechanism
Vertical Telescope
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Transport Package
Standard Seaworthy Package
Specification
1300x700x1100
Origin
Cn
HS Code
8501101000
⚙
Product Specifications
ModelAMWP4.8-6100
Rated capacity227kg
Outreach working platform load114kg
Max. Working height6.8m
Max.Platform height4.8m
Overall length1.36m
Overall width0.76m
Overall height1.98m
Platform size1.3m*0.7m*1.1m
Platform outreach size0.51m
Max.ground clearance(stowed)0.1m
Max.ground clearance(raising)0.023m
Wheelbase1.04m
Min.turning radius(inner tyre)0.3m
Min.turning radius (outer tyre)1.8m
Lift motor/Drive motor1.3KW/0.5kw
Drive speed(stowed)4km/h
Drive speed (raising)1.1km/h
Lift/down speed41.5/42 sec
Battery2×12V/100Ah
Charge24v/15A
Max. Gradeability25%
Max.Working angle1.5°
TyreΦ305*100mm
Total weight980kg
📷
Product Display

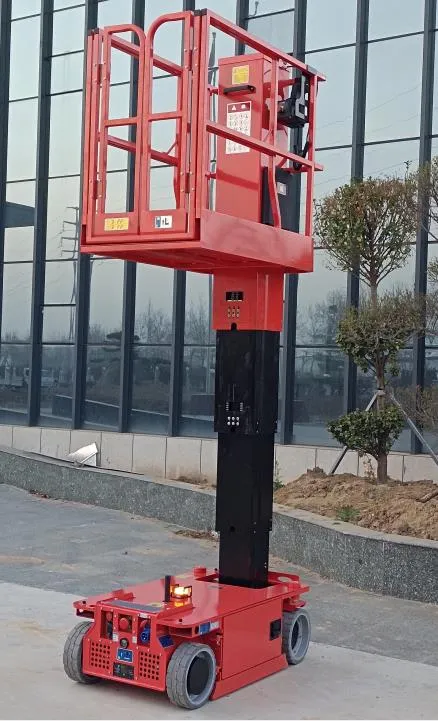

Self-Propelled Vertical Mast Aerial Working Boom Lift 1

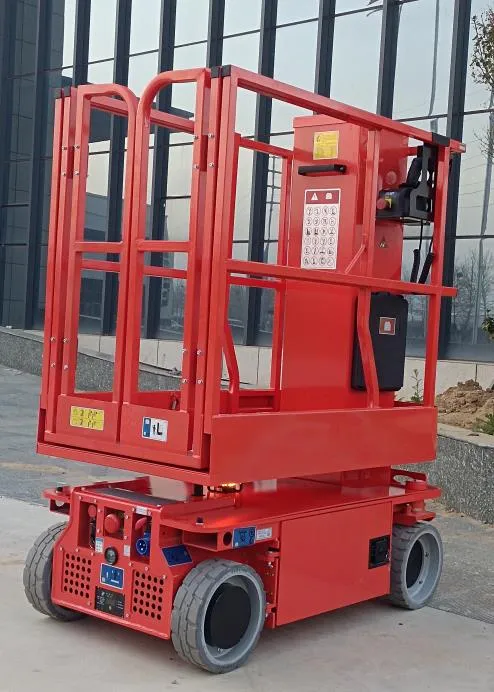

Self-Propelled Vertical Mast Aerial Working Boom Lift 2
Self-Propelled Vertical Mast Aerial Working Boom Lift 3

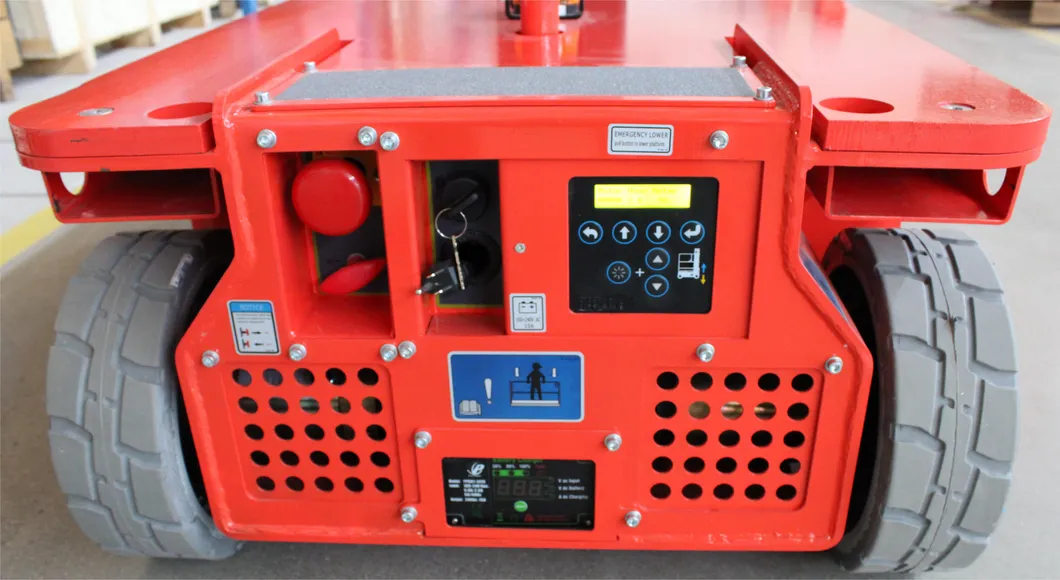

Self-Propelled Vertical Mast Aerial Working Boom Lift 4

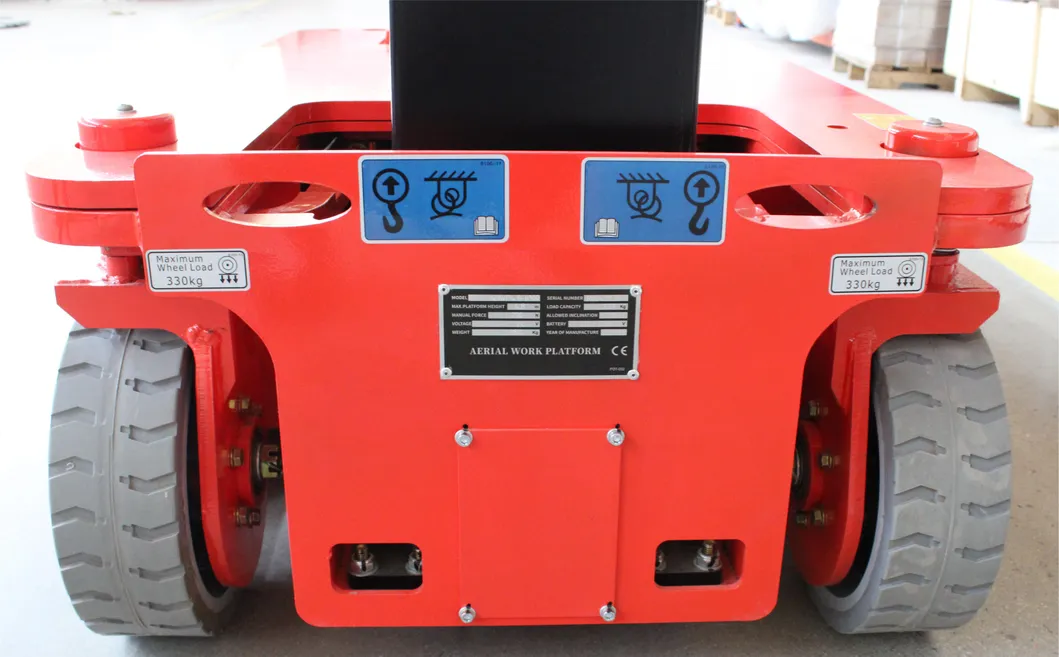

Self-Propelled Vertical Mast Aerial Working Boom Lift 5
?
Frequently Asked Questions
What is the maximum working height of the AMWP4.8-6100?
The maximum working height for this model is 6.8 meters, with a maximum platform height of 4.8 meters.
What is the load capacity of the platform and its extension?
The rated capacity of the main platform is 227kg, while the outreach extension platform can support up to 114kg.
Is the lift suitable for narrow warehouse aisles?
Yes, with an overall width of only 0.76m and a tight inner turning radius of 0.3m, it is designed specifically for confined warehouse environments.
What kind of power system does this boom lift use?
It is powered by a 24V system consisting of two 12V/100Ah batteries and features an AC drive motor.
Can this machine operate on sloped surfaces?
The AMWP4.8-6100 has a maximum gradeability of 25%, allowing it to handle moderate inclines during transport.
What safety certifications does the product hold?
This product is fully certified with CE and ISO 9001 standards, ensuring high quality and safety compliance.
