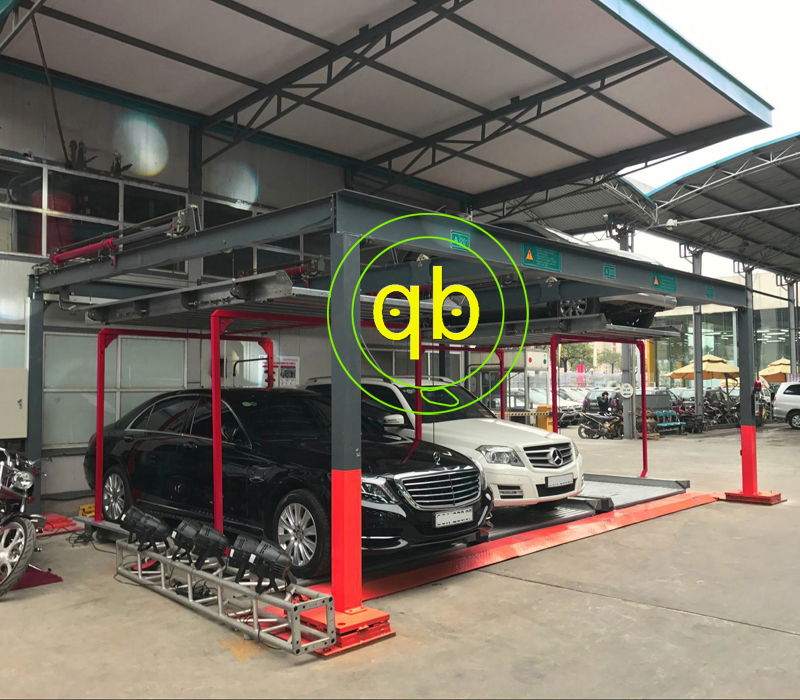

Leading Mechanical Parking System for Enhanced Safety

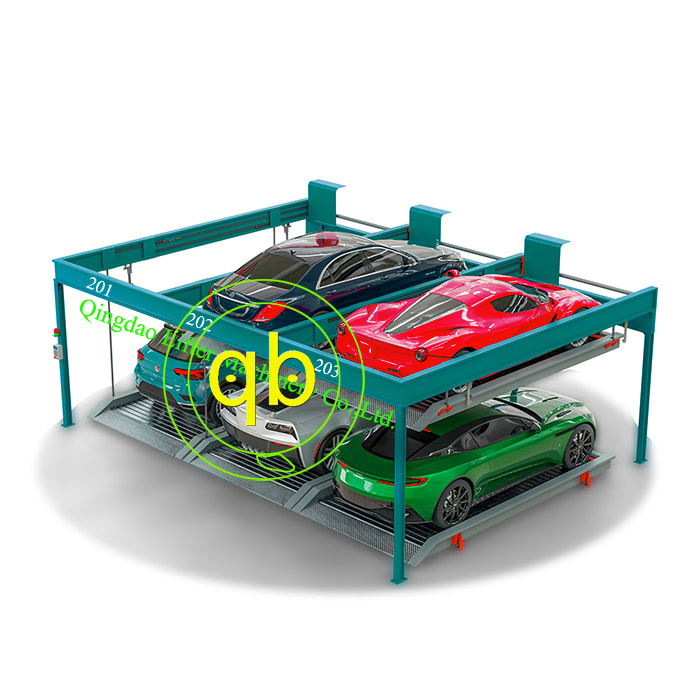

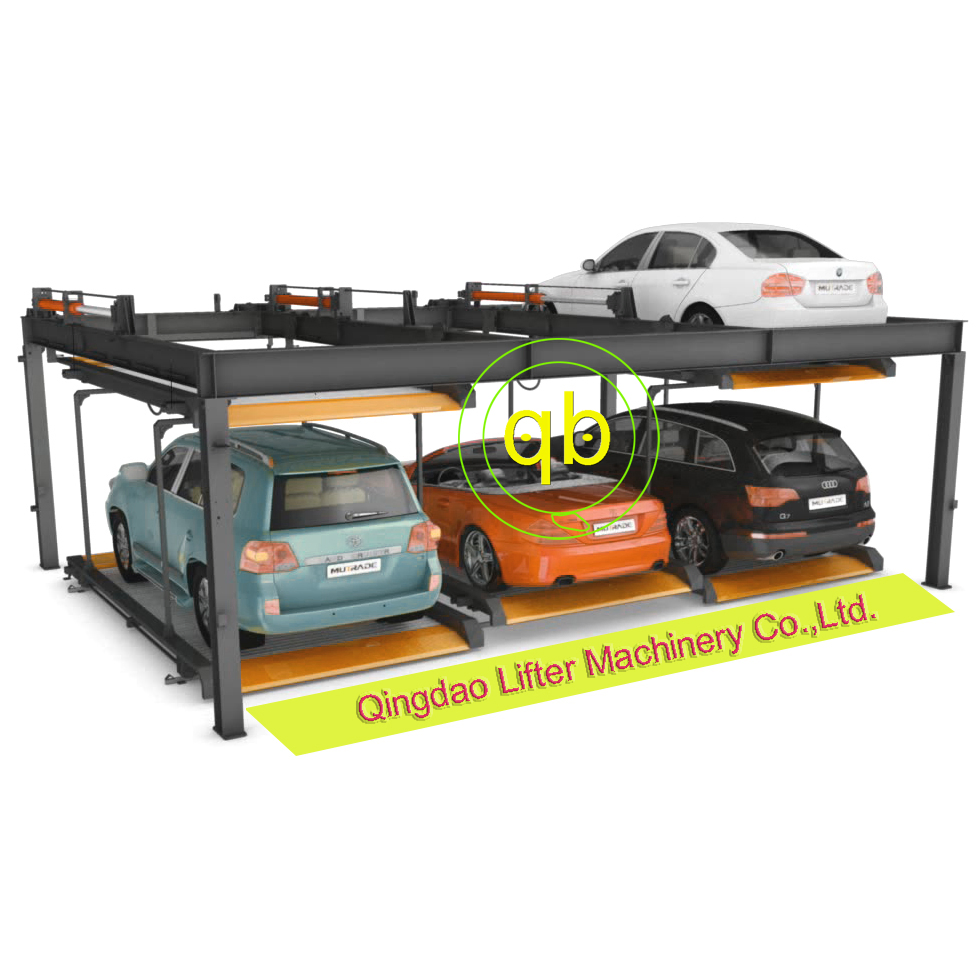

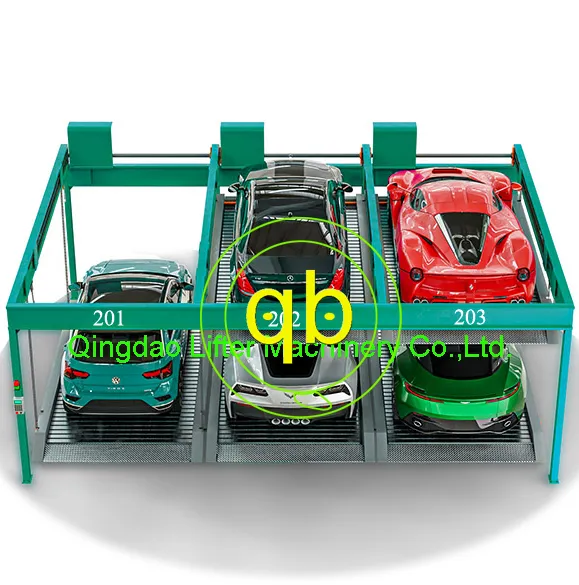

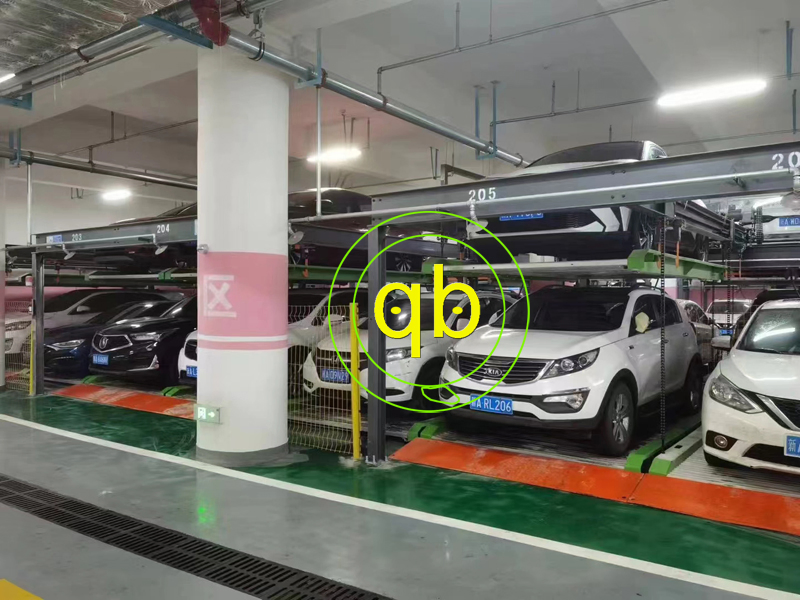

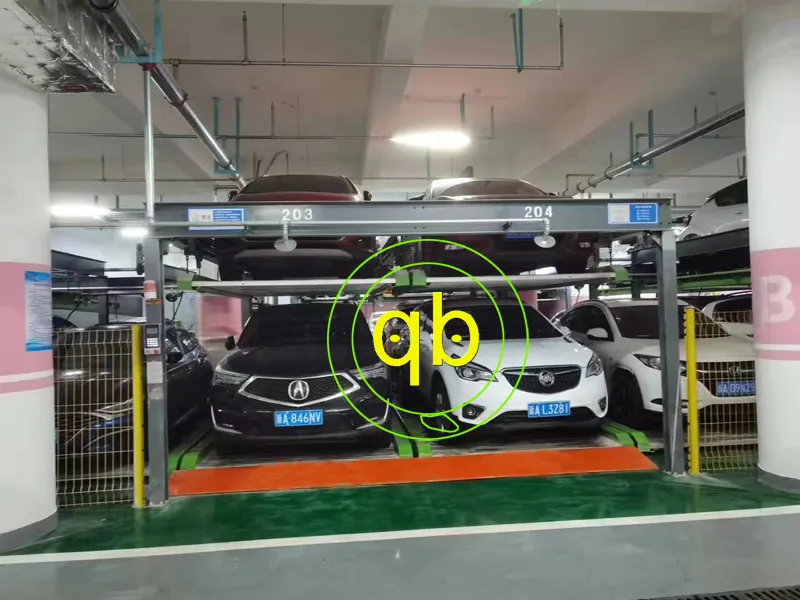

Puzzle Parking System Operating Principle:
The equipment adopts a speed reducer driven by chains or wires. The top board only performs vertical lifting and falling, while the bottom board moves horizontally. A reserved parking space at the bottom allows horizontal movement to the left or right, enabling cars on the upper levels to descend to the ground floor.
Key Features:
| Car Size (L x W x H) | 5200mm x 1900mm x 1550mm |
| 5000mm x 1850mm x 1550mm | |
| 4700mm x 1800mm x 1450mm | |
| Loading Capacity | 2000 kgs |
| Elevator Motor Power/Speed | 2.2kw / 5.25m/min (2-3 level) |
| 3.7kw / 5.25m/min (4-7 level) | |
| Horizontal Motor Power/Speed | 0.2kw / 7.28m/min |
| Driving Mode | Motor and Chain or Wire Rope |
| Safeguard | Preventing Falls, Photoelectric Sensor, Restricted Place |
