Customization: Available
Level: Customized
Parking Post: Customized
Send Inquiry

Product Description

Basic Information
Model NO.
PXD
Compatibility
Sedans & SUV
Control System
PLC Control
Installation
Outdoor
Lifting Mechanism
Mechanical
Load Capacity
2350kg
Operation Mode
Fully Automatic
Safety Features
Anti-Collision Sensors, Emergency Stop, Overload Protection
Type
Automated Parking System
Access Mode
Forward in & out
Power Supply
3 Phases 5 Wires 380V 50Hz
HS Code
84289020
Production Capacity
3000 Units/Year
Packaging & Delivery
Package Size
400.00cm * 220.00cm * 100.00cm
Gross Weight
2000.000kg
Transport Package
Export Standard
Product Description

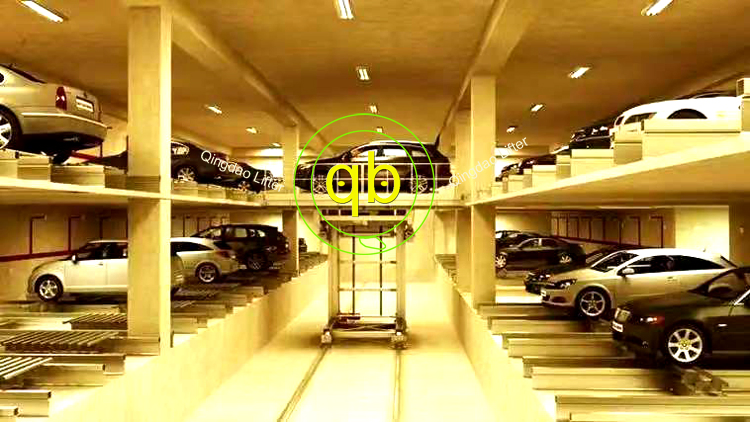

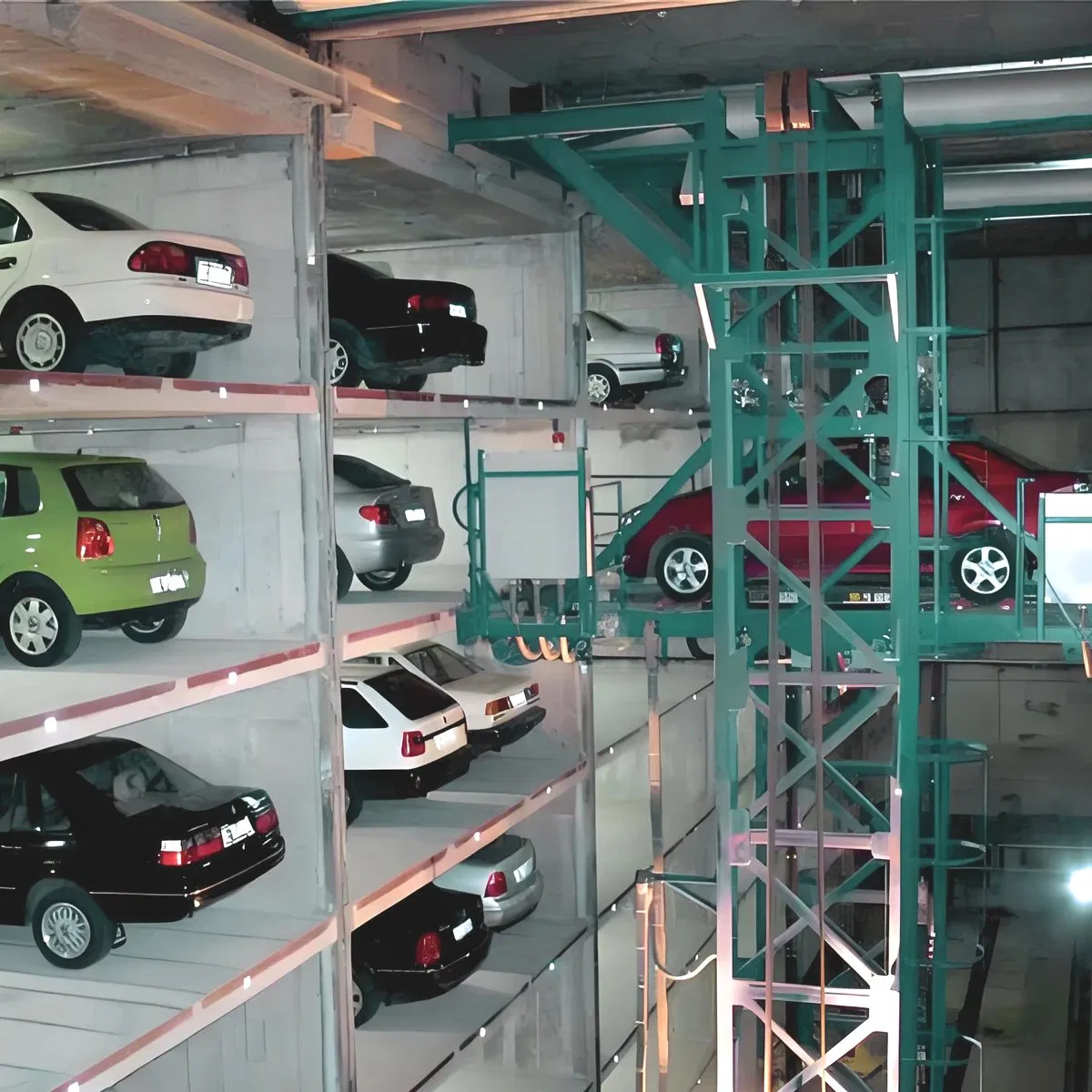

Laneway Stacker Parking System

Laneway Stacker Parking System

Traditional stacking parking system is generally arranged in three rows, with a roadway in the middle, and berths on both sides of the roadway. Stackers operate in the roadway.

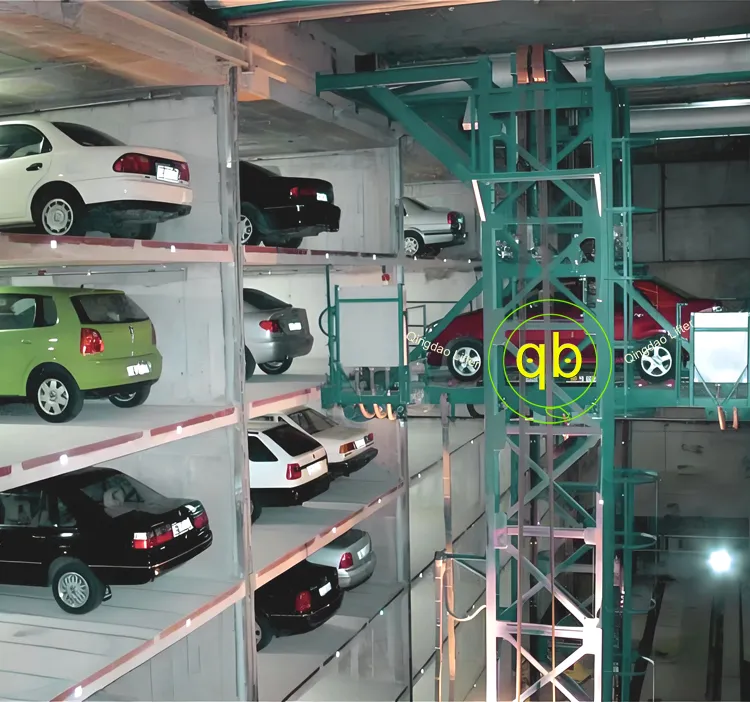

Parking System Operation

How does it work?

1
Owner drives the vehicle to the buffer zone. Ground sensors detect the vehicle, and the automatic door opens.
2
The owner drives into the entry room, follows voice and guidance screen prompts, and presses the storage button.
3

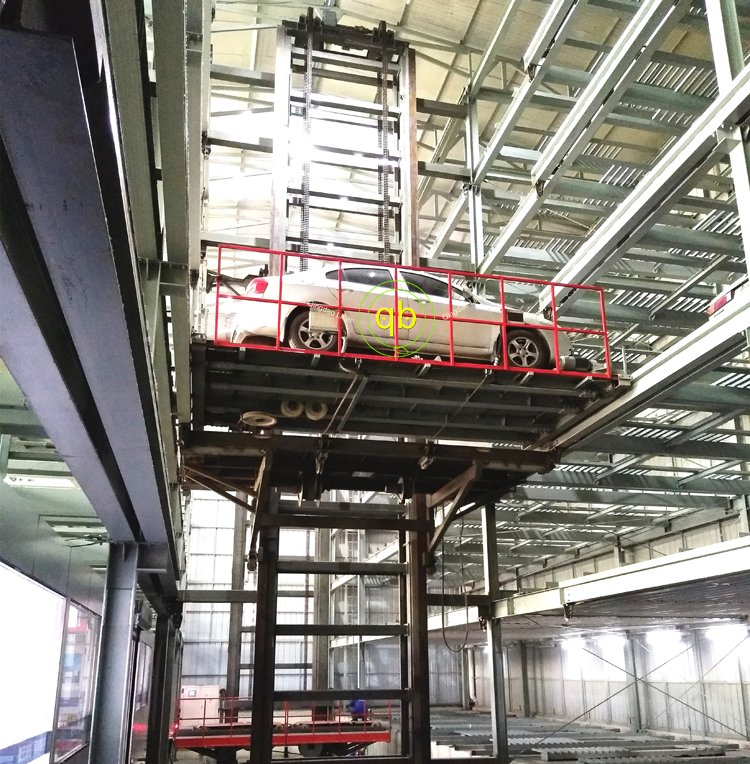

The system moves the vehicle to the parking space through the elevator, trolley, and carrier connection.
4
To pick up, the owner scans the QR code via mobile. After fee payment, the system executes the command.
5
The vehicle is transported to the exit room, the door opens, and the owner drives away.
Technical Parameters
Item Specification
TypePXD
Car Size (L*W*H)≤5300mm*1900mm*1550mm / ≤5300mm*1900mm*2050mm
Loading Weight≤2350kg
Stacker Lifter Motor15kw (Max: 60m/min)
Stacker Slide Motor5.5kw (Max: 30m/min)
Carry Motor1.5kw (40m/min)
Turn Motor2.2kw (3.0 rpm)
Operation ModeIC card / Automatic / Manual
Access ModeForward in & out
Power Supply3 phases 5 wires 380v 50Hz
Product Gallery

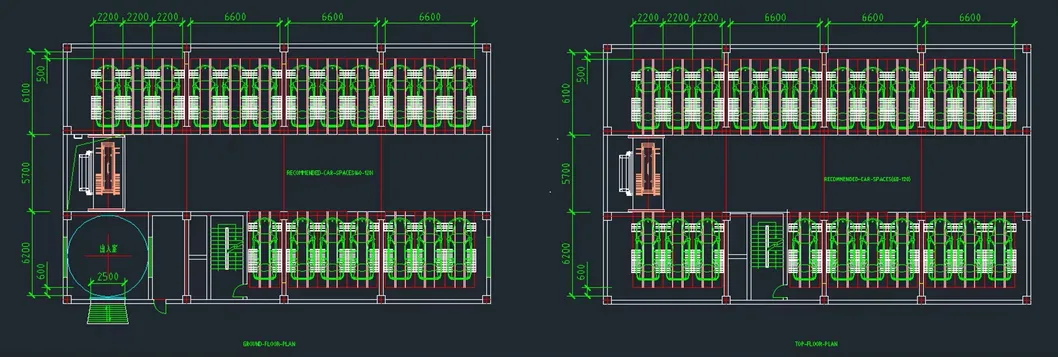

Parking detail 1

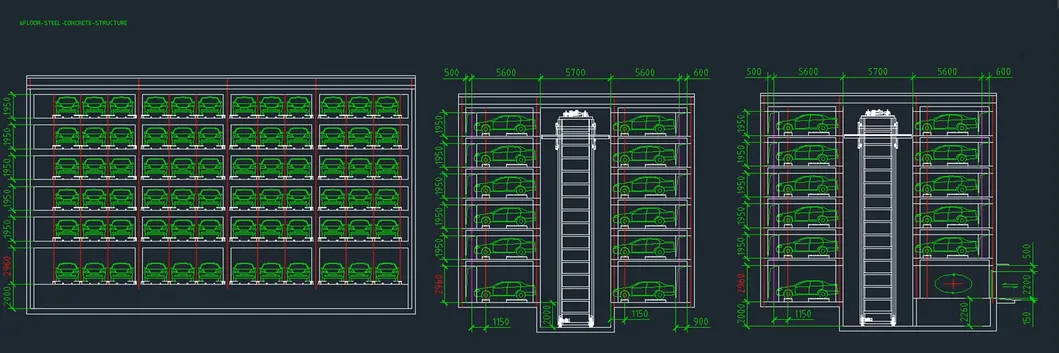

Parking detail 2
Parking detail 3
Parking detail 4
Parking detail 5
Parking detail 6
Parking detail 7
Parking detail 8
Parking detail 9
Parking detail 10
Parking detail 11
Parking detail 12
Parking detail 13

Frequently Asked Questions

What is the maximum car size and weight supported?
The system supports vehicles up to 5300mm long, 1900mm wide, and 2050mm high, with a maximum load capacity of 2350kg, making it compatible with both sedans and SUVs.
What safety features are included in the PXD system?
Safety is prioritized with anti-collision sensors, an emergency stop button, and overload protection to ensure the security of both the vehicle and the users.
How does the automated parking process work?
It is a fully automatic system where the user drives into an entry room. The system uses a PLC control and a mechanical lifter/trolley mechanism to move and store the car automatically.
What are the power requirements for installation?
The Laneway Stacker Parking System requires a standard industrial power supply of 3 Phases, 5 Wires, 380V at 50Hz.
Can this system be installed outdoors?
Yes, the PXD model is designed and suitable for outdoor installation applications.
How fast is the vehicle retrieval process?
The stacker lifter operates at speeds up to 60m/min and the carry unit at 40m/min, ensuring efficient and quick access during both storage and pickup.
