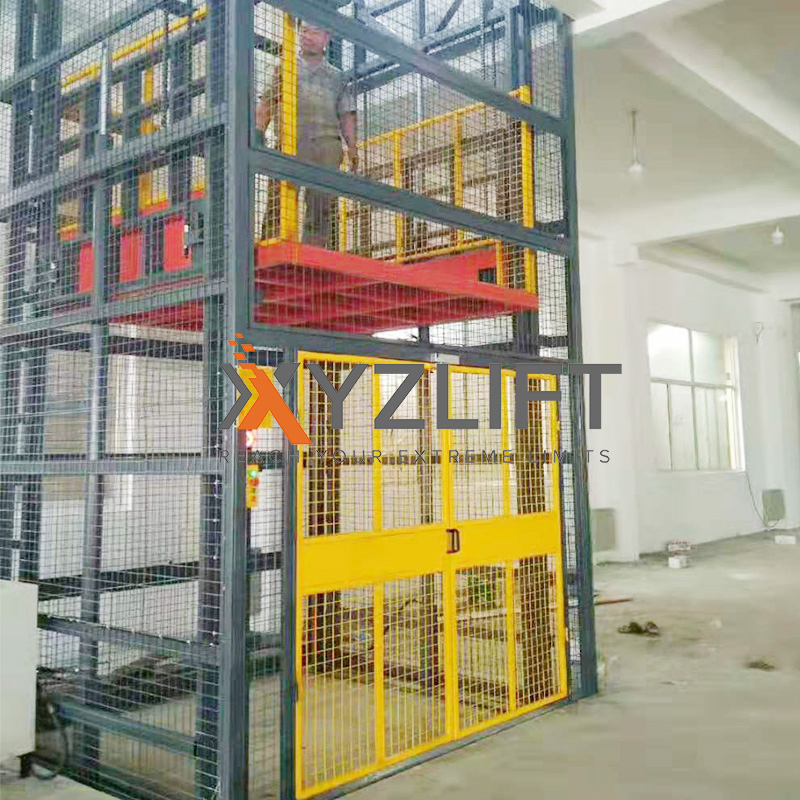

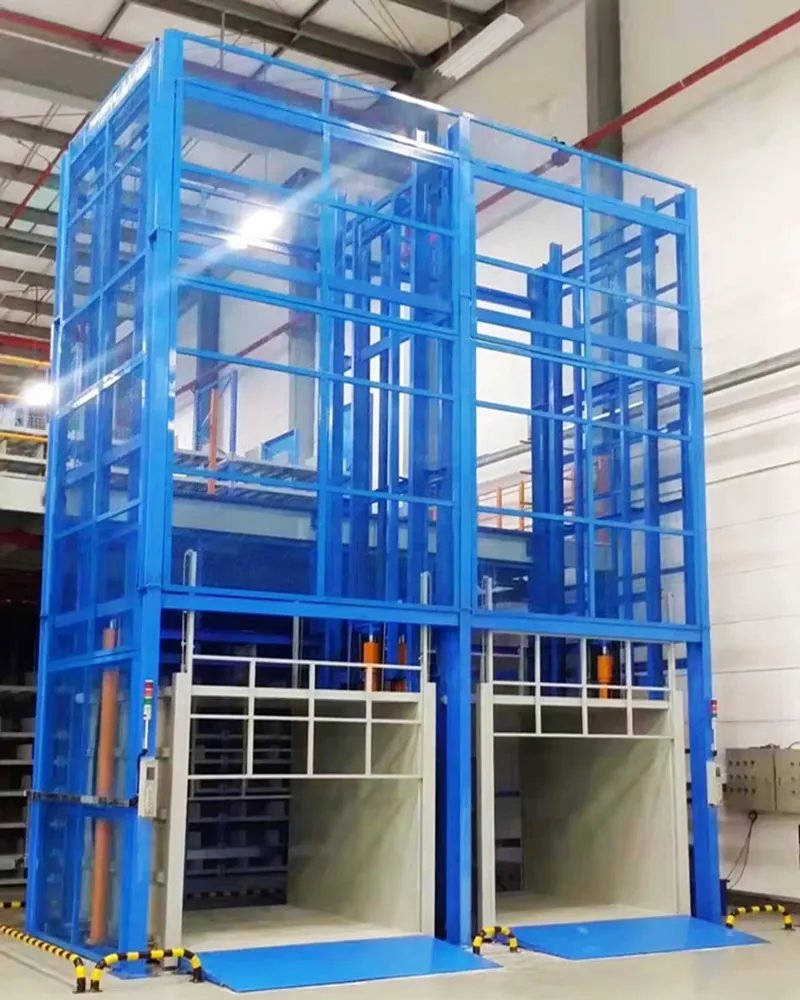

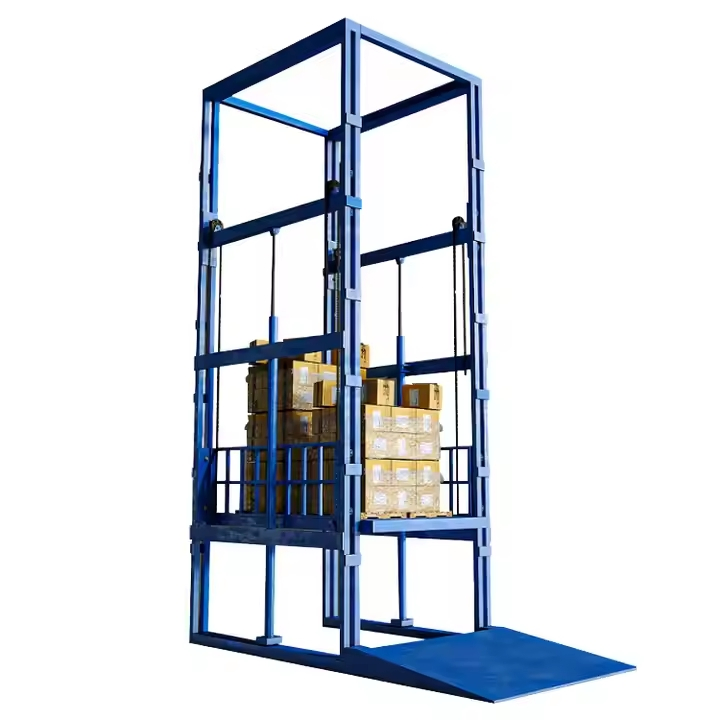

A cargo lift, also known as a freight elevator or mezzanine lift, is an essential solution for vertical transportation between floors. These hydraulic lift solutions are customized to meet specific industrial needs with versatile options:
| Model | Load Capacity | Lifting Height | Platform Size |
|---|---|---|---|
| GL1-2.7 | 1000KG | 2700MM | 1600*1600MM |
| GL1-3 | 1000KG | 3000MM | 2000*1500MM |
| GL2-3 | 2000KG | 3000MM | 2500*2500MM |
| GL3-3 | 3000KG | 3000MM | 2800*3000MM |
| GL5-7 | 5000KG | 7000MM | 4000*3500MM |
| Customized | Tailored to your specific requirements | ||
Our goods lifts adhere to EN81-31 and national standards, ensuring reliability and operator safety through ISO9001 compliant quality management.

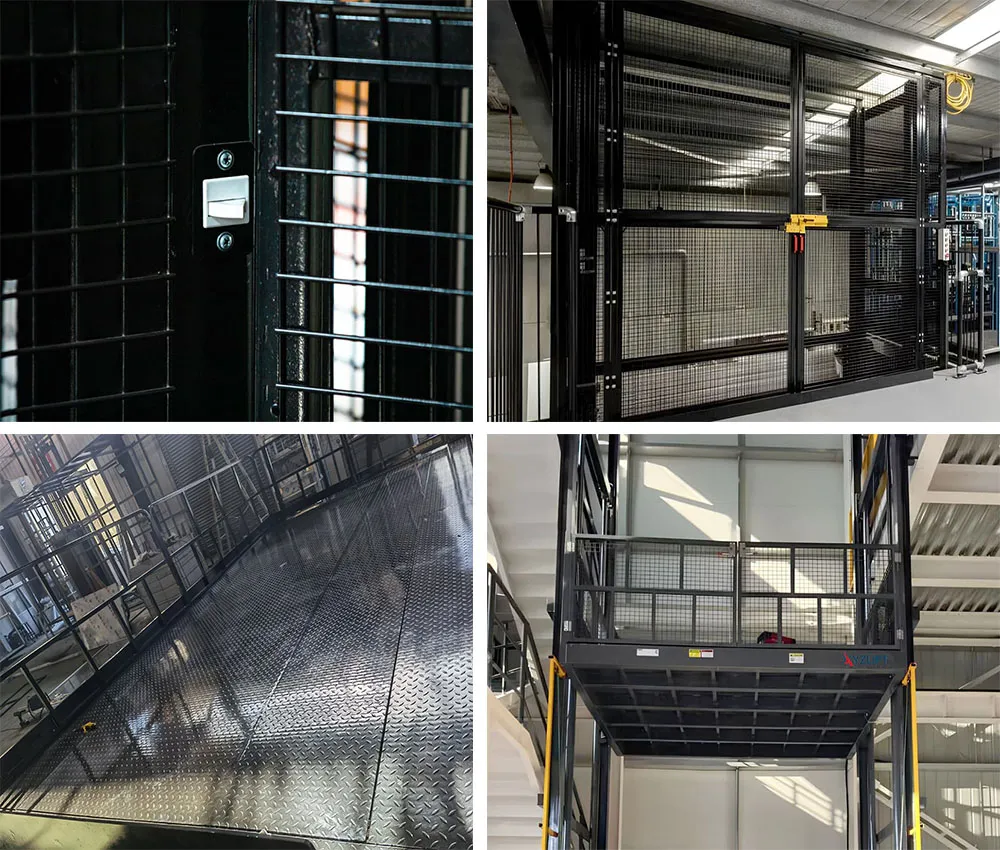

Guard Locks: Lift will not move if doors are open.
Interlocks: Electrical and mechanical interlocks prevent door opening while running.
Anti-skid Floor: Non-slip steel plate ensures cargo stability.
Guardrails: Standard 1.2m high rails (customizable up to 2.2m).

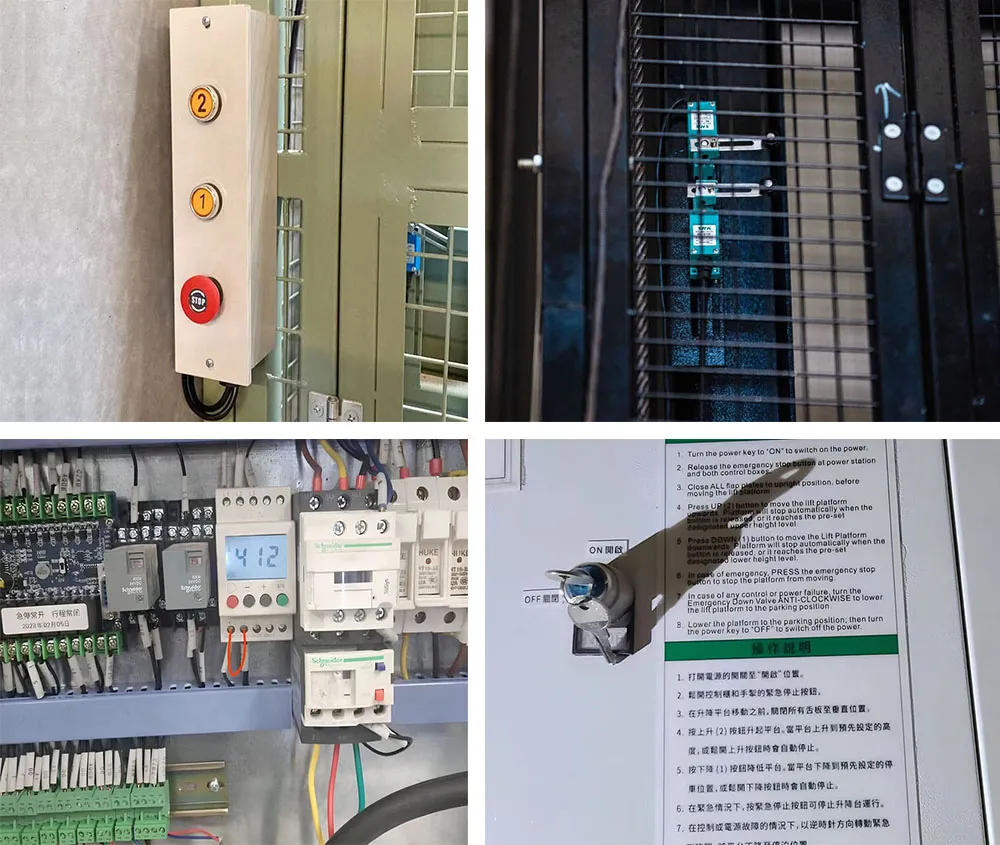

Emergency Shut-off: Instant stop button for unsafe conditions.
Final Limit Switch: Dual protection against overtravel.
Voltage Protection: Built-in system protects against sags and spikes.
Key Switch: Restricts access to authorized personnel only.
Overweight Protection: System automatically stops if overloaded.

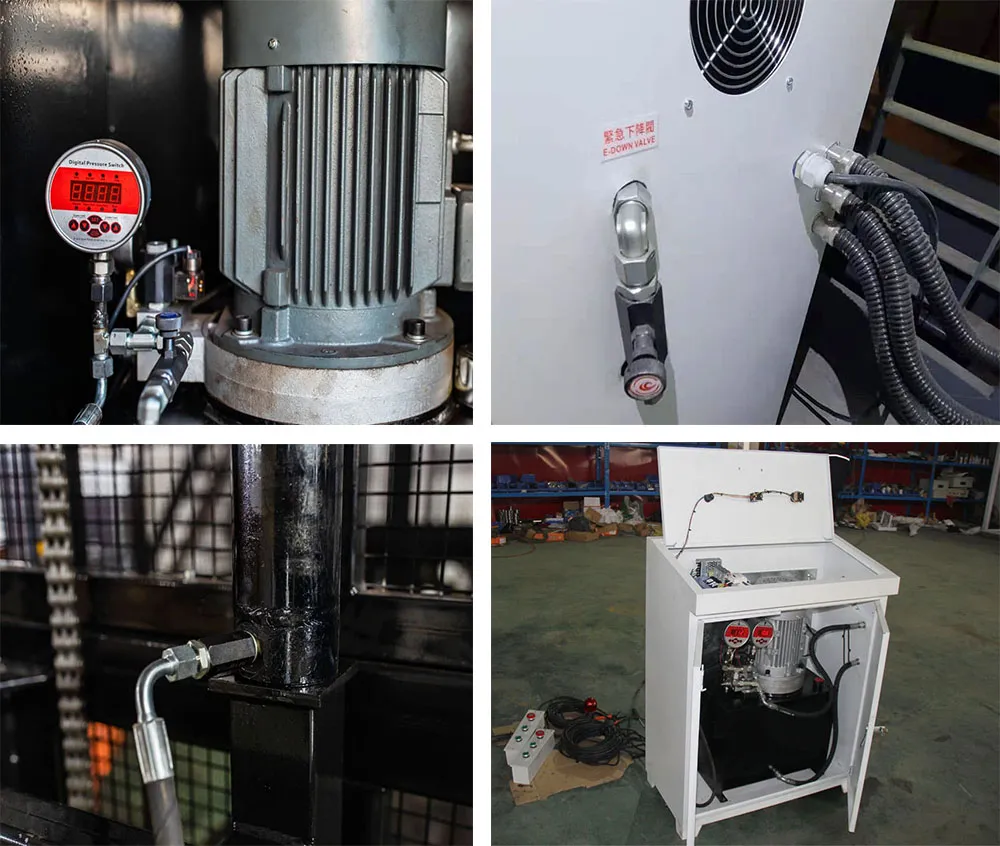

Emergency Descent: Manual valve allows safe lowering during power loss.
Anti-explosion Valve: Prevents platform drops in case of hose failure.
Pump Case: Protects system from rain and debris.

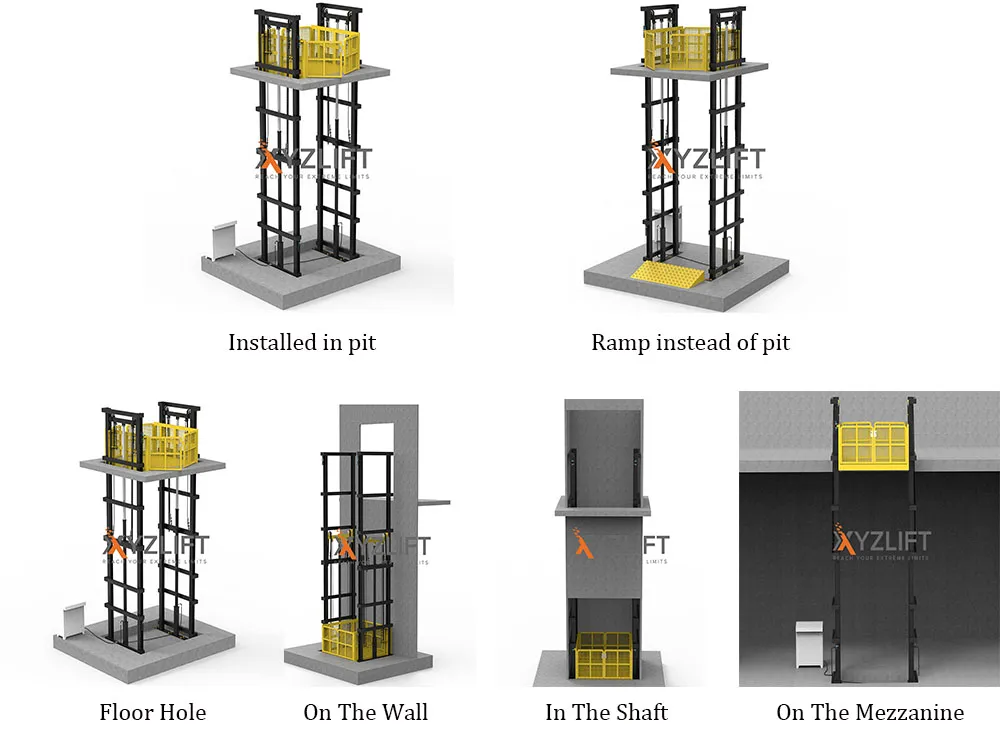

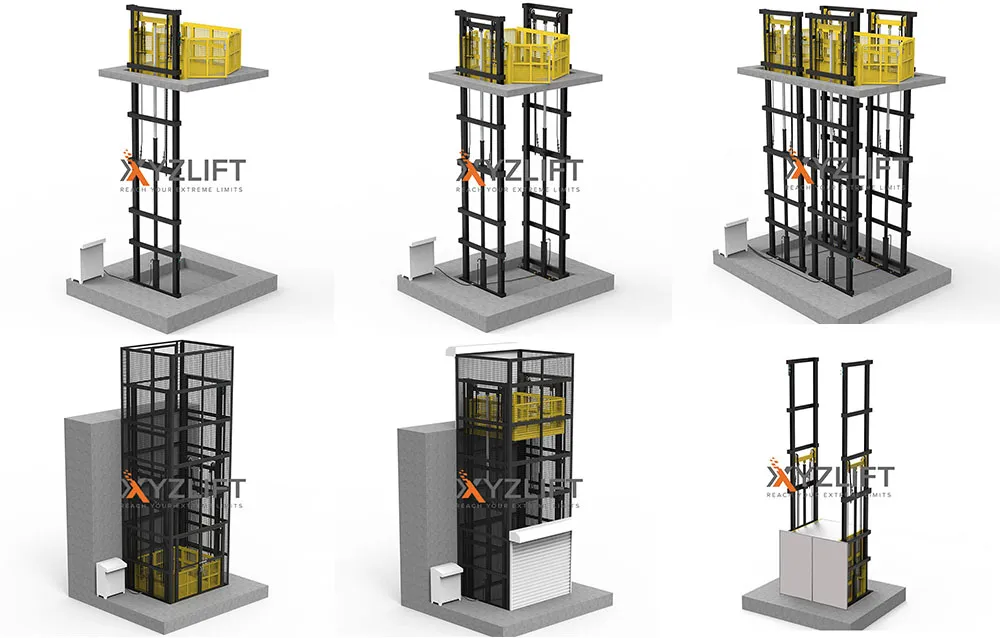

Suitable for various sites: through floors, with or without pits, outdoor, or against walls.

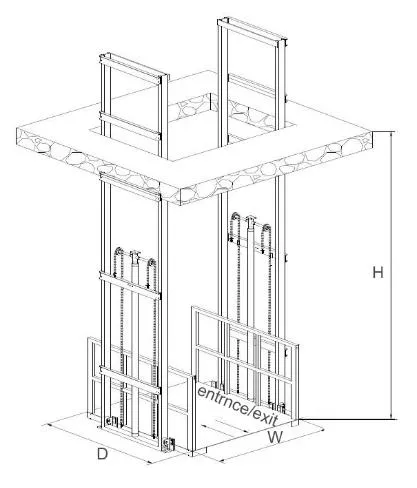

Please provide the following details:
